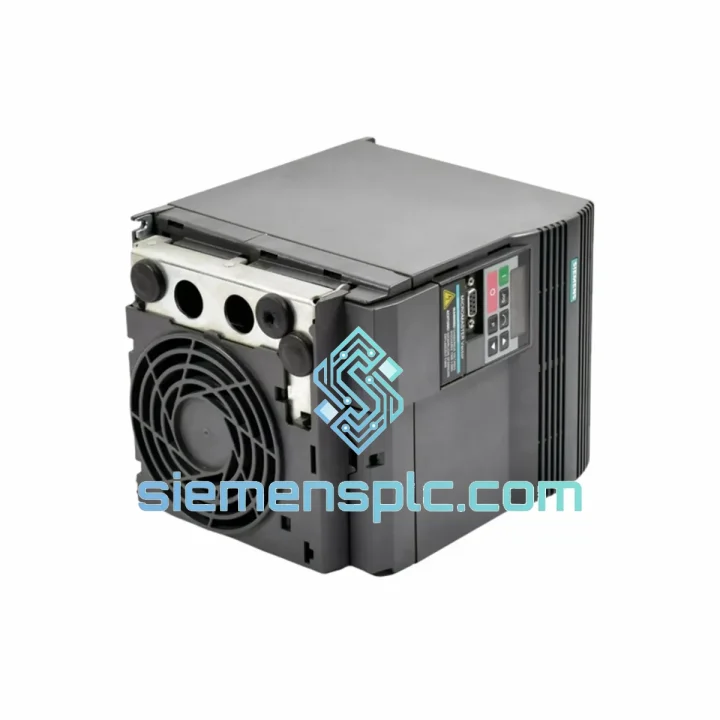

Siemens 6SE9521-7DC40 AC Frequency Inverter – SIMOVERT Eco Drive

Siemens 6SE9521-7DC40 SIMOVERT Eco Drive 7.5kW 400V AC Frequency Inverter — V/f Scalar Control for Industrial Motor Drives

The Siemens 6SE9521-7DC40 is a 7.5 kW three-phase AC frequency inverter from the SIMOVERT Eco Drive series, designed for continuous-duty variable-speed control of standard induction motors in process automation, HVAC, and material handling applications. Operating on a 380–480 V AC supply, the unit delivers a fully adjustable output frequency range of 0–300 Hz with V/f scalar control — a topology that prioritizes robust open-loop speed regulation without the computational overhead of vector algorithms, making it well-suited for pump, fan, and conveyor loads where torque linearity across the full speed range is not a primary constraint.

Unlike closed-loop vector drives, the SIMOVERT Eco Drive architecture deliberately minimizes firmware complexity to maximize mean time between failures (MTBF) in environments with high ambient particulate or thermal cycling. The 6SE9521-7DC40 occupies a compact panel-mount footprint and integrates forced-air cooling with an internal fan rated for continuous operation at ambient temperatures up to 40°C, with derating applicable to 50°C.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6SE9521-7DC40 is built on a three-stage power conversion architecture: uncontrolled diode bridge rectifier → DC link capacitor bank → IGBT-based inverter bridge. The rectifier stage uses a six-pulse diode topology, which introduces characteristic 5th and 7th harmonic currents into the supply network (THDi typically 35–45% without line reactor). For installations with sensitive upstream equipment, Siemens recommends adding a 2–3% impedance line reactor at the input terminals to suppress harmonic injection and protect the DC bus capacitors from supply-side voltage notching.

The DC link capacitor bank serves as the energy buffer between rectification and inversion. In the 7.5 kW class, the capacitance is sized to maintain DC bus ripple below ±5% under rated load, which directly determines the quality of the synthesized output waveform. The IGBT inverter bridge operates with space-vector PWM modulation at a selectable carrier frequency of 2–16 kHz. Lower carrier frequencies (2–4 kHz) reduce switching losses and IGBT junction temperature, extending component life in high-ambient installations. Higher carrier frequencies (8–16 kHz) reduce audible motor noise — relevant for HVAC fan applications in occupied buildings.

EMC compliance is achieved through an integrated Class C2 EMC filter on the input stage, which attenuates conducted emissions to meet EN 61800-3 Category C2 limits for industrial environments. The filter incorporates common-mode chokes and X/Y capacitors referenced to the PE (protective earth) rail. Proper PE bonding with low-impedance cable shields is mandatory; floating PE connections will cause the filter capacitors to charge the enclosure to hazardous potentials.

The control board uses a dedicated microcontroller for V/f ramp generation, fault detection, and USS serial communication. Fault response time from overcurrent detection to IGBT gate inhibit is under 10 µs, implemented in hardware comparator logic rather than firmware polling — this prevents IGBT desaturation damage during hard short-circuit events. The unit stores the last 8 fault codes with timestamps in non-volatile EEPROM, accessible via the OP1S panel or USS protocol for post-event diagnostics.

System Integration Benefits

• Deterministic ramp control: Independently configurable acceleration and deceleration ramps (0.1–650 s) allow precise matching to load inertia, preventing mechanical shock on belt conveyors and pump impellers without requiring external soft-starter hardware.
• USS protocol integration: The RS-485 USS interface enables direct parameter read/write and run/stop commands from Siemens SIMATIC S7 PLCs or third-party Modbus masters via protocol converters, reducing discrete I/O wiring by up to 80% in multi-drive panels.
• Quadratic V/f characteristic: The selectable quadratic torque-speed curve reduces motor flux — and therefore magnetizing current — at low speeds, cutting no-load losses by 15–25% on centrifugal pump and fan loads compared to linear V/f operation.
• DC injection braking: Controlled DC injection into the stator windings at stop provides holding torque without a mechanical brake, useful for inclined conveyors and positioning applications where regenerative braking is not required.
• Fault transparency: 8-event fault log with fault code, output frequency, output current, and DC bus voltage at time of fault enables root-cause analysis without external data loggers, reducing mean time to repair (MTTR) in field service scenarios.
• Adjustable PWM frequency: Carrier frequency selection from 2 to 16 kHz allows the installer to balance acoustic noise, motor cable length limitations (dV/dt), and drive thermal performance — a single parameter change that adapts the drive to the installation rather than requiring hardware modification.
• Skip frequency bands: Up to three programmable skip frequency bands prevent sustained operation at mechanical resonance frequencies of the driven load, eliminating structural fatigue in pump housings and fan frames without mechanical dampers.
• Analog and digital I/O: Two analog inputs (0–10 V / 4–20 mA selectable), one analog output, and multiple digital I/O points allow direct integration with process controllers, pressure transmitters, and PLC discrete outputs without additional signal conditioning modules.
• Motor protection integration: Programmable electronic motor overload (I²t) protection with adjustable thermal time constant eliminates the need for a separate bimetallic overload relay in the motor circuit, reducing panel component count and wiring complexity.
