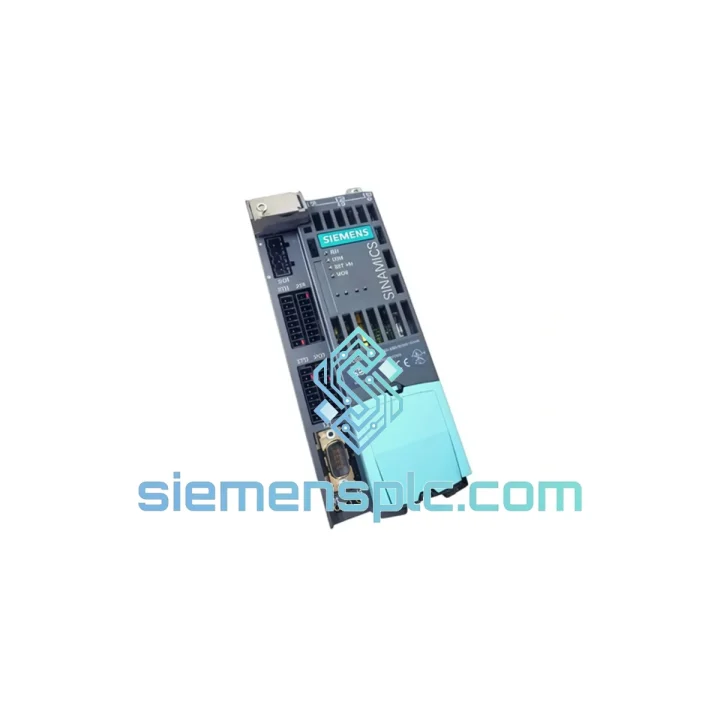

Siemens 6SL3040-0JA02-0AA0 Servo Drive Control Unit – SINAMICS S110

Siemens 6SL3040-0JA02-0AA0 CU305 PN — Single-Axis Servo Control Unit for SINAMICS S110 Drive Systems

The 6SL3040-0JA02-0AA0 is the CU305 PN Control Unit within the SINAMICS S110 single-axis servo drive platform. Its architectural role is unambiguous: it functions as the closed-loop motion controller, fieldbus master interface, and safety logic processor for one servo axis. Unlike general-purpose variable-frequency drives, the S110 platform was engineered exclusively for positioning tasks — and the CU305 PN is the computational core that makes deterministic axis control achievable in production environments where repeatability tolerances are measured in micrometers.

The unit mounts in booksize format directly onto a compatible SINAMICS S110 PM340 Power Module. Communication with the supervisory PLC (SIMATIC S7-300, S7-400, or S7-1500) is handled via an integrated dual-port PROFINET IO switch, supporting both RT (Real-Time) and IRT (Isochronous Real-Time) communication modes. In IRT mode, the CU305 PN synchronizes its internal interpolation cycle to the PROFINET bus clock with jitter below 1 µs — a prerequisite for multi-axis coordinated motion when the S110 is deployed alongside other PROFINET-synchronized drives.

Encoder feedback is processed through a dedicated encoder evaluation circuit supporting HTL/TTL incremental encoders, SSI absolute encoders, EnDat 2.1/2.2 serial encoders, and DRIVE-CLiQ digital motor interfaces. The DRIVE-CLiQ port enables automatic motor and encoder identification at power-up, eliminating manual parameter entry for motor data sets and reducing commissioning time on repeat machine builds.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The CU305 PN’s internal architecture separates three functional domains onto distinct processing layers, which is the primary reason for its deterministic behavior under load.

PROFINET IRT Synchronization Engine: The integrated ERTEC (Enhanced Real-Time Ethernet Controller) ASIC handles PROFINET frame scheduling independently of the main application processor. This hardware-level separation ensures that fieldbus cycle timing is not affected by application-layer computation load — a critical distinction from software-only PROFINET stacks where CPU contention can introduce jitter. In IRT mode, the CU305 PN achieves bus cycle synchronization with a maximum jitter of <1 µs, enabling its use as a synchronized drive node in multi-axis PROFINET IRT topologies.

Encoder Evaluation and Position Loop Closure: The encoder interface circuit operates at a hardware interrupt level, decoding incremental or absolute position data at update rates up to 125 µs. The position control loop is closed internally within the CU305 PN at this rate, independent of the PROFINET bus cycle. This architecture means that even if the PLC communication cycle is 4 ms, the servo position loop continues to execute at 125 µs — preventing position error accumulation during bus cycle gaps.

EMC Design and Signal Integrity: The CU305 PN’s PCB layout follows Siemens’ internal EMC design guidelines for industrial drive electronics: separate ground planes for analog signal processing and digital logic, optocoupler isolation on all 24 V digital I/O channels, and shielded signal routing for encoder differential pairs. The unit is tested to EN 61800-3 Category C2 for conducted and radiated emissions, and to EN 61000-4-2 (ESD), EN 61000-4-4 (EFT/Burst), and EN 61000-4-5 (Surge) for immunity — the standard suite for industrial drive equipment operating in environments with variable-frequency switching noise from adjacent power electronics.

STO Safety Circuit Architecture: The Safe Torque Off function is implemented via a dual-channel hardwired input circuit that monitors both STO_A and STO_B terminals independently. Internal cross-monitoring logic detects single-channel failures and triggers a safe state within the response time specified in the safety data sheet. This architecture satisfies the requirements of IEC 62061 SIL 2 and ISO 13849-1 PLe Category 3 without requiring an external safety relay module — reducing BOM cost and panel wiring complexity on safety-rated machine designs.

System Integration Benefits

• Unified TIA Portal Engineering: The CU305 PN is fully integrated into Siemens TIA Portal via the Startdrive add-on. Parameter sets, drive objects, and safety configurations are stored within the TIA project file, enabling version-controlled drive configuration management alongside PLC and HMI programs — eliminating the risk of drive parameter mismatch after firmware updates or hardware replacement.
• PROFINET Device Replacement Without PG: The CU305 PN supports PROFINET device replacement without a programming device. When a replacement unit is connected to the PROFINET network, the IO controller automatically downloads the stored parameter set to the new device — reducing unplanned downtime on production lines where spare units are pre-staged.
• Integrated Trace and Oscilloscope Function: The STARTER and Startdrive commissioning tools provide a 4-channel software oscilloscope with configurable trigger conditions, sampling rates down to 125 µs, and direct access to internal drive variables (speed actual value, torque setpoint, position error, current). This eliminates the need for external measurement equipment during servo tuning and fault diagnosis.
• Standardized Alarm and Fault Diagnostics: The CU305 PN generates structured fault and alarm messages with fault codes, fault values, and timestamps accessible via PROFINET acyclic read services or the commissioning tool. Fault history is stored in a non-volatile buffer, enabling post-mortem analysis of drive trips without requiring a connected PLC or HMI at the time of the fault.
• DRIVE-CLiQ Topology Auto-Detection: When Siemens DRIVE-CLiQ motors and encoders are connected, the CU305 PN reads motor nameplate data (rated current, rated speed, encoder resolution, thermal model parameters) directly from the motor’s electronic nameplate at startup. This eliminates manual motor data entry errors — a common source of commissioning faults on multi-axis machine builds.
• Scalable Safety Function Licensing: The base unit includes STO. Extended Safety Integrated functions — SS1 (Safe Stop 1), SLS (Safely Limited Speed), SDI (Safe Direction), and SOS (Safe Operating Stop) — are available via software license activation without hardware modification. This allows machine builders to deploy a standard hardware platform and activate safety functions per machine variant through license management.
• Deterministic Cycle Time for Positioning Tasks: The internal position control cycle of 125 µs, combined with PROFINET IRT synchronization, provides a deterministic end-to-end control chain from PLC setpoint generation to motor torque output. For applications requiring coordinated multi-axis motion — such as gantry systems or electronic gearing — this determinism is a prerequisite for maintaining synchronization accuracy across axes.
• Compact Booksize Form Factor with Shared DC Bus Capability: The CU305 PN mounts directly onto PM340 Power Modules in booksize format. Multiple PM340 units can share a common DC bus via a Line Module, enabling regenerative energy exchange between axes — reducing net energy consumption on machines with alternating acceleration and deceleration cycles across multiple servo axes.

Quality Assurance & Global Logistics

Every 6SL3040-0JA02-0AA0 unit supplied by siemensplc.com is sourced from verified Siemens-authorized distribution channels. Each unit undergoes a structured pre-dispatch inspection protocol: visual examination of housing, connector pins, and label integrity; verification of the Siemens holographic authenticity seal; and a functional power-on check where applicable. Units are dispatched in original Siemens packaging or equivalent ESD-protective enclosures with desiccant inserts to prevent moisture ingress during transit.

Shipping is handled from our warehouse in Xiamen, China, with access to DHL Express, FedEx International Priority, and UPS Worldwide Expedited services. Standard transit times to major industrial hubs: Europe 3–5 business days, North America 4–6 business days, Southeast Asia 2–3 business days. For urgent production line recovery scenarios, same-day dispatch is available on confirmed stock items when orders are placed before 14:00 CST. Export documentation — commercial invoice, packing list, and certificate of origin — is prepared in compliance with destination country import requirements. HS Code 8537.10 applies to this product category for customs classification purposes.

A 12-month warranty against manufacturing defects is provided from the date of dispatch. Dead-on-arrival (DOA) units are replaced or credited within 5 business days of confirmed fault verification. Technical support for commissioning, parameter configuration, and fault diagnosis is available via email and WhatsApp throughout the warranty period and beyond.
