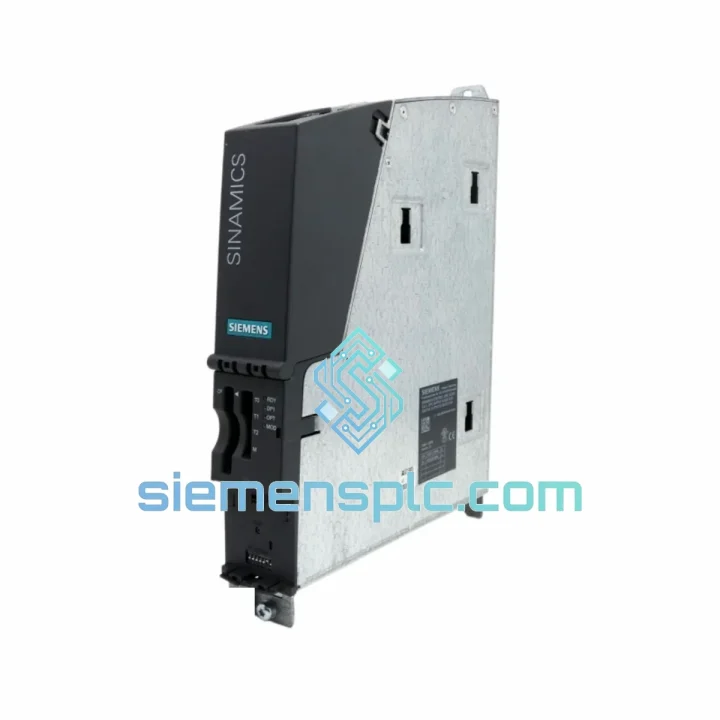

Siemens 6SL3040-0MA00-0AA1 Drive Control Unit – SINAMICS S120

Siemens 6SL3040-0MA00-0AA1 CU320 — Central Control Intelligence for SINAMICS S120 Multi-Axis Drive Systems

The CU320 Control Unit occupies the apex of the SINAMICS S120 hardware hierarchy. In a booksize or chassis drive line-up, every Motor Module, every encoder feedback channel, and every safety function is subordinate to the CU320’s real-time arbitration. The 6SL3040-0MA00-0AA1 is the standard-firmware variant of this unit — firmware-ready from the factory, parameterizable via Siemens STARTER or SCOUT, and designed to manage coordinated multi-axis motion across servo, vector, and V/f drive objects within a single control domain.

In practical terms, a single 6SL3040-0MA00-0AA1 can supervise up to six drive objects simultaneously over the DRIVE-CLiQ topology, executing interpolation cycles at 125 µs current-control resolution. The PROFIBUS DP interface operates at up to 12 Mbit/s, delivering deterministic process data exchange with SIMATIC S7-300, S7-400, and S7-1500 controllers without gateway overhead. This architecture eliminates the latency penalties inherent in distributed drive topologies and concentrates diagnostic transparency at a single node — a critical advantage in high-throughput manufacturing where fault isolation time directly determines mean time to repair (MTTR).

The 6SL3040-0MA00-0AA1 is deployed across automotive transfer lines, paper machine winder sections, flexographic press register systems, and AS/RS crane drives — environments where axis synchronization tolerances are measured in microseconds and unplanned downtime costs exceed thousands of dollars per minute. Its position in the SINAMICS S120 ecosystem is not interchangeable with lighter CU310 or CU250S variants; the CU320 is specifically engineered for multi-axis centralized control, and its hardware architecture reflects that design mandate at every layer.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6SL3040-0MA00-0AA1 is built around a dual-processor architecture: a real-time DSP core handles closed-loop current and speed regulation at sub-millisecond cycle rates, while a separate application processor manages PROFIBUS DP communication, parameter management, and fault logging. This separation of concerns prevents communication jitter from contaminating the servo control loop — a design principle that distinguishes the CU320 from single-core architectures where bus traffic competes with control execution time.

DRIVE-CLiQ Topology and Backplane Bus Arbitration: The four DRIVE-CLiQ ports implement Siemens’ proprietary isochronous serial protocol, derived from Industrial Ethernet at the physical layer but operating with a fixed 125 µs frame cycle. Each port can address a daisy-chained string of Motor Modules, Sensor Module Cabinets (SMC10/20/30), and Line Modules. The CU320 acts as the DRIVE-CLiQ master, issuing synchronous setpoint telegrams and collecting actual-value feedback within the same isochronous window. Clock synchronization across all nodes is maintained to ±1 µs, which is the prerequisite for electronic gearing and cam-profile interpolation in multi-axis applications.

EMC Design and Signal Integrity: The CU320 PCB employs a multi-layer ground plane strategy with dedicated analog and digital ground domains separated at a single star point. All external I/O signals pass through optocoupler isolation barriers rated at 500 V AC working voltage, preventing ground loop currents from the power section from coupling into the control logic. The PROFIBUS DP transceiver is galvanically isolated from the internal logic bus, and the DRIVE-CLiQ ports incorporate common-mode chokes at the physical layer to suppress conducted emissions in accordance with EN 61800-3 Category C2.

Redundancy and Fault Arbitration Logic: The CU320 implements a watchdog supervisor circuit that monitors both the DSP core and the application processor independently. If either core fails to assert its watchdog token within the configured timeout window (default: 800 ms, adjustable via p9780), the hardware watchdog asserts a controlled shutdown sequence — disabling PWM outputs on all connected Motor Modules via the DRIVE-CLiQ STO (Safe Torque Off) signal path before de-energizing the 24 V logic rail. This sequence ensures that motor coasting rather than uncontrolled deceleration occurs in the event of a control unit fault, which is the safer failure mode for most mechanical loads.

Parameter and Firmware Storage Architecture: All drive parameters, motor data sets, and encoder configurations are stored on the CompactFlash card rather than internal flash memory. This design choice allows a complete drive configuration to be transferred to a replacement CU320 by physically moving the CF card — a significant advantage in emergency maintenance scenarios where STARTER software access may not be immediately available. The CF card interface operates at 3.3 V logic with hardware write-protect capability, preventing accidental parameter corruption during power cycling.

System Integration Benefits

• Deterministic Isochronous Operation: PROFIBUS DP in isochronous mode (PROFIBUS DPV2) synchronizes the CU320’s control cycle to the PLC scan cycle, eliminating variable communication latency and enabling position-synchronous setpoint transfer with jitter below 1 µs.
• Centralized Diagnostic Transparency: All axis faults, warnings, and operational states are aggregated at the CU320 and accessible via a single PROFIBUS address. Maintenance engineers can read the complete drive system status — including Motor Module temperatures, DC bus voltage, and encoder signal quality — from the PLC HMI without physical access to the drive cabinet.
• Reduced Cabinet Wiring Complexity: DRIVE-CLiQ daisy-chaining replaces individual encoder cables, resolver cables, and analog setpoint wiring between the control unit and each Motor Module. A six-axis system requires four DRIVE-CLiQ cables versus potentially 24 or more individual signal cables in a conventional distributed architecture.
• Scalable Drive Object Configuration: A single 6SL3040-0MA00-0AA1 supports servo control (with encoder feedback via SMC), sensorless vector control, and V/f open-loop control simultaneously across different drive objects. Mixed-mode configurations are parameterized in STARTER without hardware changes.
• Safety Integrated Compatibility: When paired with Motor Modules that support Safety Integrated (SI) functions, the CU320 coordinates STO, SS1, SLS, and SDI safety functions across all axes from a single safety program instance, reducing the complexity of TÜV-certified safety validation.
• Electronic Gearing and Cam Profiles: The CU320’s isochronous DRIVE-CLiQ architecture supports master-slave axis coupling with electronic gear ratios and programmable cam profiles, enabling register control and synchronization applications without an external motion controller.
• Firmware Upgrade Path: The CF card-based firmware architecture allows field upgrades to newer SINAMICS S120 firmware versions without hardware replacement, protecting the capital investment in the drive system over its operational lifetime.
• Standardized Commissioning Workflow: STARTER and SCOUT provide automatic drive identification via DRIVE-CLiQ — the CU320 reads motor nameplate data, encoder type, and Motor Module ratings automatically during first commissioning, reducing manual parameterization errors and shortening initial startup time.

Quality Assurance & Global Logistics

Every 6SL3040-0MA00-0AA1 unit dispatched from our Xiamen, China facility is sourced through verified supply channels with full manufacturer traceability documentation. Pre-shipment inspection covers physical authenticity markers — label typography, holographic seals, DRIVE-CLiQ port pin geometry, and PCB revision markings — cross-referenced against Siemens factory documentation. Where stock condition permits, power-on verification and DRIVE-CLiQ enumeration testing are performed before packaging.

Units are packed in anti-static shielding bags, placed in custom-cut EPE foam inserts within double-wall corrugated cartons, and sealed with tamper-evident tape. Export documentation — commercial invoice, packing list, and certificate of conformity — is prepared in compliance with Chinese customs regulations and destination-country import requirements. Shipments to Europe, North America, Southeast Asia, the Middle East, and Australia are dispatched via DHL Express, FedEx International Priority, or UPS Worldwide Expedited, with typical transit times of 3–7 business days to major industrial hubs. A 12-month warranty from dispatch date covers manufacturing defects under normal operating conditions.
