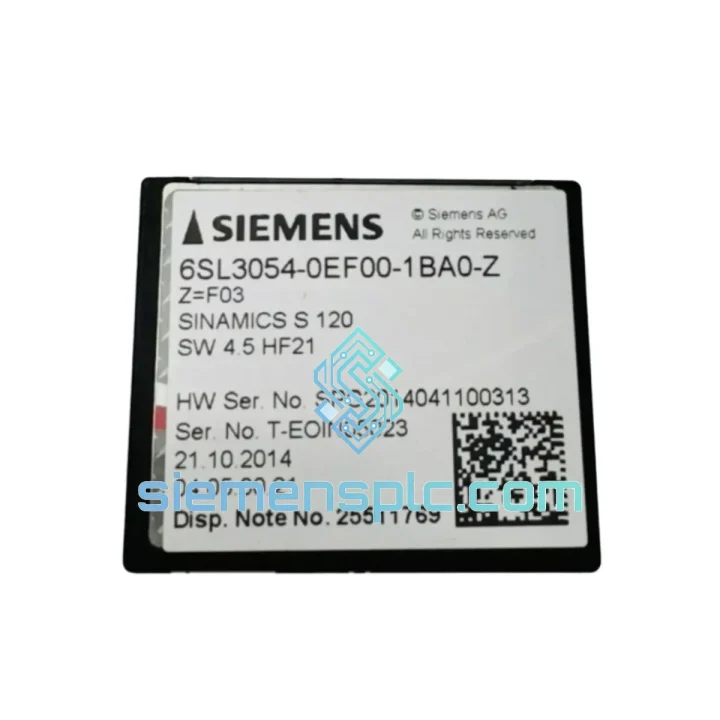

Siemens 6SL3054-0EF00-1BA0-Z Parameter Memory Card – SINAMICS S120

Siemens 6SL3054-0EF00-1BA0-Z SINAMICS Parameter Memory Card — Non-Volatile Drive Data Storage in Motion Control Architecture

The 6SL3054-0EF00-1BA0-Z is a CompactFlash-based parameter memory card engineered for the Siemens SINAMICS S120 drive family. Its primary function within a control loop is to provide non-volatile, field-replaceable storage of drive parameterization data, firmware images, and trace records — enabling deterministic drive restoration without re-commissioning from an engineering workstation. In multi-axis servo architectures where the Control Unit (CU320-2 or CU310-2) manages coordinated motion across multiple Motor Modules, the loss of parameter integrity is a critical failure mode. This card eliminates that risk by decoupling parameter persistence from the CU’s internal volatile memory, allowing hot-swap replacement of a Control Unit while preserving the complete drive dataset.

The card interfaces directly with the CompactFlash slot on the SINAMICS S120 Control Unit. At power-on, the CU firmware performs a checksum-validated read of the parameter set stored on the card. If the stored firmware version matches the CU’s bootloader expectation, the drive enters operational state without requiring STARTER or TIA Portal intervention. This architecture is particularly significant in OEM machine tool applications where field service personnel may not have access to the original project file.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6SL3054-0EF00-1BA0-Z employs industrial-grade NAND flash memory organized in a wear-leveling managed file system. Unlike standard consumer CompactFlash cards, the firmware partition and the parameter partition are logically separated at the block allocation level. This means a firmware update operation — which involves sequential block erasure and rewrite — does not disturb the parameter dataset stored in its dedicated partition. The CU’s bootloader reads the firmware image first, validates its CRC-32 checksum, then mounts the parameter partition as a secondary read operation. If either checksum fails, the CU raises fault F01018 (memory card error) and halts initialization, preventing a corrupted parameter set from propagating into the drive’s RAM-resident parameter mirror.

From an EMC standpoint, the card’s metal housing provides shielding continuity with the CU’s grounded chassis when fully seated. The CF slot on the CU320-2 includes a mechanical retention latch that maintains contact pressure across the 50-pin ATA connector, preventing intermittent contact faults in high-vibration environments such as press lines or heavy milling centers. The card’s operating temperature ceiling of 70 °C aligns with the thermal design of the CU320-2 cabinet, which is rated for 40 °C ambient with 10 K internal rise — leaving adequate thermal margin in standard enclosure designs.

For redundant drive architectures using the SINAMICS S120 in master-follower or parallel infeed configurations, a single parameter card stores the complete axis grouping dataset. When a CU is replaced in the field, inserting the original card into the replacement CU triggers automatic parameter download on the next power cycle, restoring all axis-specific p-parameters, drive object assignments, and PROFINET device names without manual re-entry. This behavior is governed by p0010 (drive commissioning parameter filter) and p0970 (factory reset behavior), both of which are preserved on the card.

System Integration Benefits

• Zero-downtime CU replacement: Parameter card enables plug-and-restore CU swap without STARTER or TIA Portal access, reducing MTTR in production environments from hours to under 15 minutes.
• Firmware version control: The card stores the exact firmware version validated during commissioning, preventing unintended firmware drift when replacement CUs ship with newer bootloader versions.
• Axis dataset integrity: All drive objects — including servo axes, vector axes, and infeed objects — are stored as a unified dataset, eliminating partial-restore errors common in manual re-parameterization.
• PROFINET device name persistence: The card retains the PROFINET device name assigned during network commissioning, ensuring the replacement CU is immediately recognized by the PLC’s IO controller without address reassignment.
• Trace and fault log archiving: SINAMICS trace records and fault history buffers can be written to the card, providing post-mortem diagnostic data accessible without a live drive connection.
• Offline parameter editing: The card can be read by a PC via a standard CF reader and edited using STARTER’s offline project import function, enabling pre-staging of parameter changes before scheduled maintenance windows.
• Multi-axis scalability: A single card supports up to 6 drive objects on a CU320-2, covering complex multi-axis gantry or winding applications within one storage medium.
• Deterministic boot sequence: The CU’s boot time with a valid parameter card is consistent and measurable — typically under 30 seconds to operational state — supporting predictable restart sequences in safety-integrated machine designs.

Quality Assurance & Global Logistics

Every 6SL3054-0EF00-1BA0-Z unit supplied by siemensplc.com is sourced as genuine Siemens OEM product. Physical inspection covers label authenticity, holographic seal integrity, and serial number traceability against Siemens’ product identification standards. Units are stored in anti-static packaging within a humidity-controlled warehouse environment in Xiamen, China.

Shipments are dispatched from Xiamen via DHL Express, FedEx International Priority, or UPS Worldwide Expedited, with typical transit times of 3–5 business days to Europe and North America, and 2–4 business days to Southeast Asia. Full commercial invoice, packing list, and certificate of origin are provided with every shipment to support customs clearance. For orders requiring consolidated shipping of multiple line items, consolidation is handled at our Xiamen facility before dispatch. Export classification is managed in compliance with applicable dual-use regulations.
