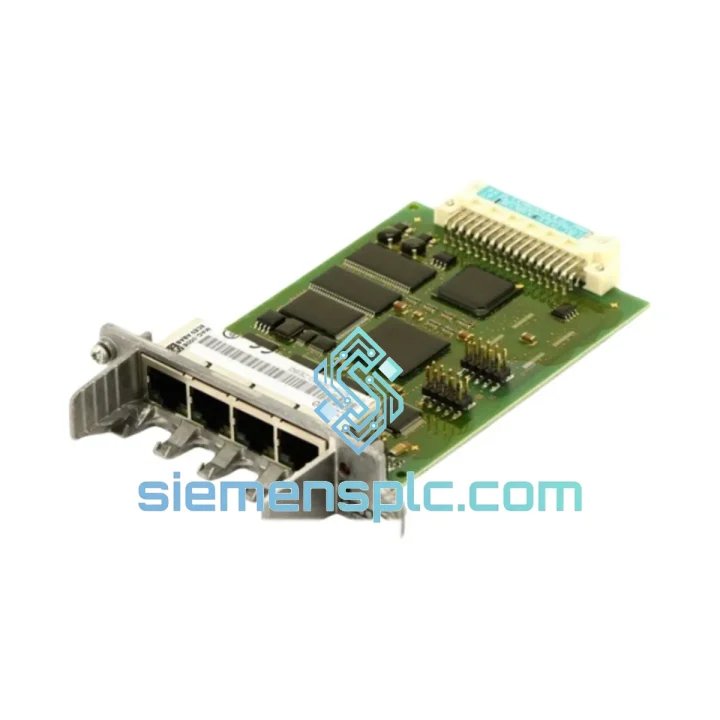

Siemens 6SL3055-0AA00-2EB0 Drive System Module

6SL3055-0AA00-2EB0 — Every Hour of Downtime Costs You. We Ship Today.

Your SINAMICS S120 drive line is down. The CNC spindle won’t respond. The servo axis is faulted. Production is stopped and every minute the clock is running. The Siemens 6SL3055-0AA00-2EB0 is the SMC30 Sensor Module Cabinet-Mounted — the encoder feedback interface that sits between your motor encoder and the SINAMICS S120 drive system. When this module fails, the entire axis goes dark. We stock it. We ship it today from Xiamen.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The SMC30 is a passive feedback conditioner — it does not run firmware in the traditional sense, but it does carry an electronic nameplate (ENC) that the CU320-2 reads via DRIVE-CLiQ on power-up. Here is what you need to know before you pull the old module and slot in the replacement:

Common Fault Codes That Point to a Failed SMC30:

• F07900 / A07901 — Encoder 1 signal fault. If the fault persists after checking cable continuity, the SMC30 itself is the likely culprit, not the encoder.
• F30015 — Phase failure detected. Can be triggered by corrupted encoder feedback causing the drive to misread motor position.
• F07826 — DRIVE-CLiQ communication error on the SMC30 node. First check the DRIVE-CLiQ cable; if the cable tests good, replace the module.
• A07850 — Encoder limit frequency exceeded. Verify your encoder PPR setting in p0408 matches the physical encoder on the motor shaft.

Step-by-Step Replacement Procedure:

1. Power down the drive line-up completely. Wait for the DC link capacitors to discharge — minimum 5 minutes after the DC link LED extinguishes. Do not skip this step.
2. Label and photograph all encoder cable connections before disconnecting. The SMC30 has up to three encoder sub-D connectors (X520, X521, X522) plus the DRIVE-CLiQ port (X500). Mixing these up will cause immediate faults on restart.
3. Disconnect the DRIVE-CLiQ cable first, then the encoder cables, then the 24 V supply. Reverse this order on installation.
4. Snap the new 6SL3055-0AA00-2EB0 onto the DIN rail in the same slot position. The SINAMICS S120 topology is position-sensitive — the CU320-2 maps each DRIVE-CLiQ node by its physical chain order.
5. No DIP switch or rotary address setting is required on the SMC30. The module self-identifies via its electronic nameplate over DRIVE-CLiQ. However, verify that p0400 (encoder type selection) and p0408 (encoder pulse number) are correctly set in your drive parameters — these are stored in the CU, not the SMC30, so they survive the swap.
6. On first power-up after replacement, the CU320-2 will detect the new module and may prompt a topology confirmation in STARTER or TIA Portal. Accept the new topology. If the system was previously saved with the old module’s serial number in the topology, you may see A01006 (topology deviation) — this is normal and clears after confirmation.
7. Firmware: The SMC30 does not require a separate firmware download. It is powered and managed entirely by the CU320-2. Ensure your CU firmware is V4.7 SP9 or later for full EnDat 2.2 support.

Pro tip from the field: If you are replacing an SMC30 in a multi-axis booksize line-up and the DRIVE-CLiQ chain passes through the module, a failed SMC30 can take down all downstream nodes in the chain. Always check the full topology tree in STARTER before assuming multiple modules have failed simultaneously.

Reliability in Harsh Conditions

Cabinet-mounted does not mean protected from the real world. Industrial control cabinets in steel mills, paper plants, and automotive body shops routinely see internal temperatures above 45 °C, vibration transmitted through the cabinet floor, and humidity spikes during seasonal changeovers. The 6SL3055-0AA00-2EB0 is built to Siemens’ SINAMICS S120 platform standards, which means it has been validated against IEC 61800-5-1 for electrical safety and EN 61000-6-2 for industrial EMC immunity.

The PCB assembly inside the SMC30 uses conformal coating on signal-level circuits, which provides a meaningful barrier against condensation and airborne contaminants — a common failure mode in coastal and high-humidity manufacturing environments. The encoder signal conditioning circuitry is designed with differential line receivers that reject common-mode noise up to ±7 V, which matters enormously in environments where VFD switching noise couples into encoder cables that were not properly shielded or grounded.

Vibration resistance is validated to EN 60068-2-6 (sinusoidal, 10–500 Hz, 1 g). For applications with severe mechanical vibration — press lines, compressors, or equipment mounted on vibrating structures — ensure the DIN rail mounting screws are torqued correctly and the DRIVE-CLiQ cable is secured with a cable tie within 50 mm of the connector to prevent fretting corrosion on the RJ45 contacts.

All units in our Xiamen stock are stored in ESD-safe, climate-controlled conditions. Each module is inspected for physical damage, connector integrity, and label legibility before dispatch. We do not ship modules with damaged sub-D connector pins or bent DRIVE-CLiQ tabs — these are the first things that cause intermittent faults after installation.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. For urgent industrial replacement orders, we operate a same-day cut-off: orders confirmed and paid before 15:00 CST ship the same business day.

• DHL Express Worldwide: Xiamen to most of Europe and North America in 2–4 business days. Real-time tracking from our warehouse door to your receiving dock.
• FedEx International Priority: Typically 1–3 business days to the US, Canada, and key Asia-Pacific destinations. Ideal for critical downtime situations where every hour counts.
• UPS Expedited: Cost-effective option for non-emergency replacement stock replenishment, 3–5 business days to most destinations.
• Customs & Documentation: We prepare full commercial invoices, packing lists, and HS code declarations (HS 8537.10) for smooth customs clearance. For EU imports, we can provide EUR.1 movement certificates where applicable.
• Dangerous Goods: The 6SL3055-0AA00-2EB0 contains no lithium batteries or hazardous materials and ships without DG restrictions.

If your plant is in a country with specific import requirements — CE marking documentation, country-of-origin certificates, or third-party inspection — contact us before ordering and we will prepare the necessary paperwork in advance to avoid customs delays.
