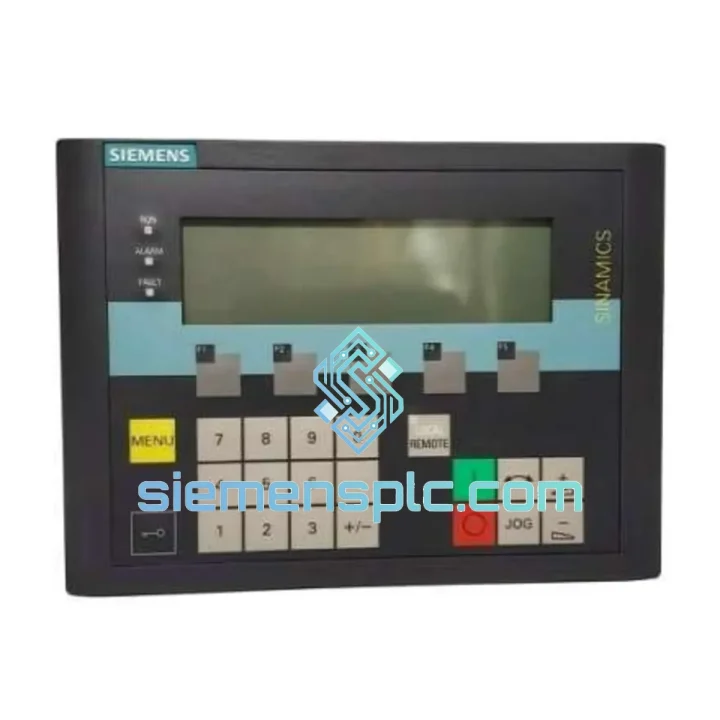

Siemens 6SL3055-0AA00-4CA5 Drive Operator Panel – SINAMICS Series

Siemens 6SL3055-0AA00-4CA5: Local Operator Interface for SINAMICS Drive Control Loops

The 6SL3055-0AA00-4CA5 is a dedicated operator panel engineered for direct integration with Siemens SINAMICS S120, G120, G120C, G130, and G150 drive platforms. Within a closed-loop drive control architecture, this panel occupies the human-machine interface layer of the control hierarchy — sitting between the drive’s Control Unit (CU) and the commissioning or maintenance engineer. It provides deterministic, low-latency access to the drive’s parameter memory (EEPROM-backed P-number space), fault register (Fxxxx), and alarm buffer (Axxxx) without requiring an external PG/PC or STARTER/SCOUT software session.

In multi-axis S120 booksize installations, where a single CU320-2 DP/PN governs multiple Motor Modules via the DRIVE-CLiQ backbone, the 6SL3055-0AA00-4CA5 connects directly to the CU’s front-panel BOP interface port. This physical connection bypasses the PROFIBUS/PROFINET fieldbus entirely, ensuring that panel access remains available even when the network segment is offline — a critical requirement for fault isolation during production incidents.

For G120 installations using CU240B-2 or CU240E-2 control units, the panel connects via the BOP Link interface, enabling door-mount configurations with cable runs up to 3 m. This allows the panel to be surface-mounted on a control cabinet door while the drive remains in a ventilated enclosure bay, maintaining IP54 cabinet integrity without compromising operator access.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6SL3055-0AA00-4CA5 interfaces with the SINAMICS Control Unit through a proprietary serial bus embedded in the BOP connector. This bus operates independently of the DRIVE-CLiQ ring topology that interconnects the CU with Motor Modules, Sensor Modules, and Line Modules. The architectural separation means that panel communication latency is not subject to DRIVE-CLiQ cycle jitter — parameter read/write operations complete within a fixed response window regardless of the drive’s current servo cycle load (125 µs to 4 ms depending on application class).

EMC Design: The panel’s internal PCB employs a ground-plane-referenced layout with filtered signal lines at the BOP connector interface. This suppresses conducted interference from the drive’s PWM switching transients, which can reach dV/dt values exceeding 5 kV/µs on the DC bus. The LCD driver circuitry is isolated from the connector interface via a common-mode choke network, preventing display corruption during high-frequency switching events — a failure mode observed in non-OEM panels used in high-power S120 chassis installations.

Parameter Memory Arbitration: When the panel is connected simultaneously with an active STARTER/SCOUT online session via PROFIBUS or PROFINET, the CU firmware implements a write-arbitration protocol. Panel-initiated parameter writes are queued and executed with lower priority than PLC-originated writes via the fieldbus parameter channel (PKW channel in PROFIBUS DPV1, or PROFIdrive parameter access in PROFINET). This prevents parameter conflicts during live commissioning without requiring the operator to disconnect the panel.

Non-Volatile Storage Interaction: The panel can trigger a RAM-to-ROM save operation (equivalent to P0971 = 1) directly from its keypad. This writes the current parameter set from the CU’s volatile RAM to its onboard EEPROM, ensuring parameter retention across power cycles. The operation is confirmed by the panel display before execution, preventing accidental overwrites — a safeguard absent in software-only commissioning tools when network connectivity is intermittent.

Fault Buffer Architecture: The SINAMICS fault buffer stores up to 8 fault entries with timestamps referenced to the drive’s internal real-time clock. The 6SL3055-0AA00-4CA5 displays each fault entry sequentially, including the fault value (r0949) and fault time (r2130/r2131), enabling root-cause sequencing without a connected PC. This is particularly valuable in installations where the drive operates in standalone mode without a supervisory SCADA or PLC fault logging system.

System Integration Benefits

• Fieldbus-Independent Access: Panel communication operates on a dedicated serial channel, maintaining full parameter and diagnostic access when PROFIBUS or PROFINET segments are offline, faulted, or under reconfiguration — eliminating dependency on network availability for maintenance operations.
• Zero-Configuration Recognition: The CU firmware detects the panel at power-up via device identification handshake. No parameter assignment or address configuration is required, reducing commissioning time for replacement units to under 60 seconds.
• Deterministic Fault Response: Direct display of Fxxxx fault codes with associated fault values (r0949) allows maintenance personnel to identify fault causes — overcurrent, ground fault, encoder error — without software tools, reducing mean time to repair (MTTR) in production environments.
• Motor Identification Trigger: The panel can initiate the drive’s motor identification routine (rotating or stationary) directly from the keypad. This is essential during motor replacement or after stator resistance changes due to thermal aging, ensuring the drive’s internal motor model remains accurate for vector control performance.
• JOG Mode for Mechanical Commissioning: The integrated JOG function allows controlled low-speed shaft rotation without PLC program execution, enabling mechanical alignment, coupling verification, and brake release testing during machine installation phases.
• Parameter Upload/Download via Panel: Supported CU variants allow parameter sets to be transferred between drives using the panel as an intermediary storage medium, accelerating drive replacement in multi-axis systems where identical parameter sets are required across axes.
• Alarm Acknowledgment Without PLC: Active alarms (Axxxx) can be acknowledged directly from the panel in applications where the PLC alarm acknowledgment logic is unavailable — for example, during PLC program development or after a PLC CPU fault.
• Cabinet Door Integration: Via BOP Link cable, the panel mounts flush in a standard 138 × 74 mm door cutout, maintaining cabinet IP54 rating while providing front-panel operator access. This eliminates the need for a separate HMI panel for drive-level diagnostics in compact control cabinet designs.
• Setpoint Override for Testing: The panel supports local setpoint input, allowing engineers to command speed or torque references directly during load testing and performance verification, independent of the automation system’s reference signal chain.
• Lifecycle Alignment: As an OEM Siemens component, the 6SL3055-0AA00-4CA5 is covered under Siemens’ spare parts availability commitment for the SINAMICS platform, providing a defined procurement horizon for long-term plant maintenance planning.

Quality Assurance & Global Logistics

Every unit of the 6SL3055-0AA00-4CA5 supplied by siemensplc.com is sourced through verified industrial distribution channels with full traceability to Siemens AG manufacturing. Units are inspected upon receipt for physical integrity, label authenticity, and connector condition. Functional verification is performed where test infrastructure permits, including BOP interface continuity and LCD display operation checks.

Packaging follows OEM specifications: anti-static inner wrap, foam-cushioned outer carton, and moisture-barrier sealing for ocean freight. Each shipment includes a packing list with part number, serial number (where present), and inspection record.

Shipping from Xiamen, China: Our logistics hub in Xiamen (Fujian Province) provides direct access to Xiamen Gaoqi International Airport (XMN) and Xiamen Port, supporting both air freight and sea freight dispatch. Standard air freight transit times: 3–5 business days to Europe, 4–7 business days to North America, 2–4 business days to Southeast Asia. DDP (Delivered Duty Paid) shipping is available for select destinations, eliminating customs clearance burden for the buyer.

Warranty Terms: 12-month warranty from shipment date against manufacturing defects. Dead-on-arrival (DOA) units are replaced within 7 business days of confirmed fault report. Warranty claims require photographic documentation of the defect and the unit’s label. Out-of-warranty repair assessment is available on request.

CE marking and RoHS compliance documentation available upon request for import clearance purposes.
