Siemens 6SL3100-0BE23-6AB0 Smart Line Module – SINAMICS S120

Siemens 6SL3100-0BE23-6AB0 — Regenerative DC Bus Infeed for SINAMICS S120 Multi-Axis Drive Systems

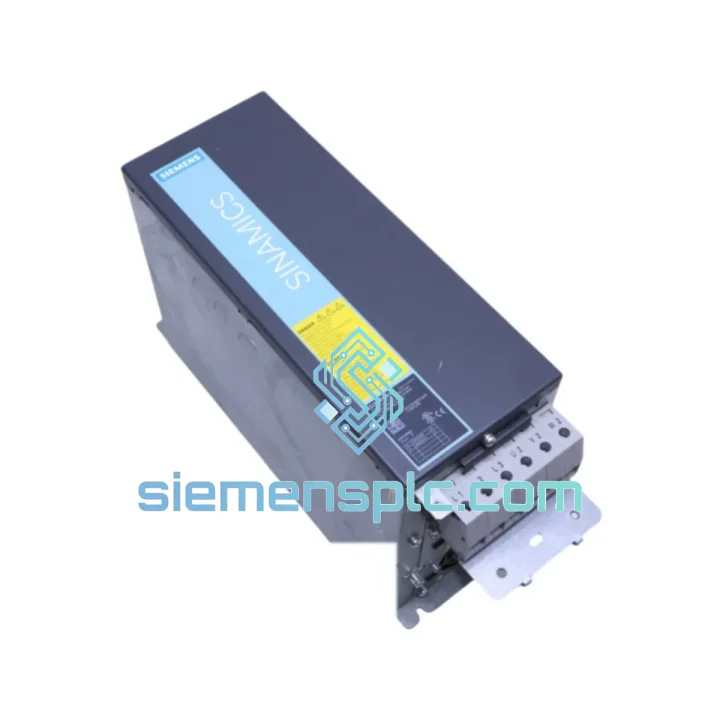

The 6SL3100-0BE23-6AB0 is a 36 kW Smart Line Module (SLM) within the Siemens SINAMICS S120 booksize drive family. Its primary function is to serve as the bidirectional power interface between the three-phase AC supply network and the shared DC bus that feeds downstream Single Motor Modules or Double Motor Modules. Unlike a Basic Line Module, which is a passive diode-bridge rectifier, the SLM employs an IGBT-based Active Front End (AFE) topology. This distinction is architecturally significant: the AFE enables four-quadrant operation, meaning the module can both draw power from the grid during motoring phases and return regenerated energy to the supply during braking or deceleration phases. In cyclic industrial processes — crane lowering, press return strokes, centrifuge deceleration — this regenerative capability measurably reduces net energy consumption and eliminates the thermal dissipation burden that resistive braking resistors impose on the control cabinet.

The module is rated for a 3-phase AC supply of 380–480 V (±10 %) at 47–63 Hz, producing a regulated DC bus voltage in the range of approximately 600–720 V DC depending on supply voltage. Rated input current is 36 A, corresponding to 36 kW of active power throughput. The unit is housed in the standard SINAMICS S120 booksize format, enabling direct side-by-side mounting with Motor Modules on a common mounting rail without additional mechanical adapters.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6SL3100-0BE23-6AB0 is built around a three-phase IGBT bridge operating as a voltage-source PWM rectifier. The control algorithm continuously monitors the AC supply voltage waveform and modulates the IGBT switching pattern to maintain the DC bus at its target setpoint while keeping the input current sinusoidal and in phase with the supply voltage. This is the mechanism behind the near-unity power factor and low THDi figures — the module does not simply rectify; it actively shapes its own input current.

EMC Architecture: The AFE switching frequency (typically 4–8 kHz) generates conducted and radiated emissions. Siemens addresses this through an integrated EMC filter stage on the AC input side, combined with a recommended external line reactor (e.g., 6SL3000-0CE23-6AA0) that provides additional differential-mode impedance. The combination achieves IEC 61800-3 Category C2 compliance without requiring a separate harmonic filter cabinet in most industrial supply environments.

DC Bus Capacitor Bank: The internal DC link capacitor bank serves two functions: it buffers short-duration load transients from Motor Modules and provides the energy reservoir for the AFE control loop to maintain voltage stability during rapid load steps. The capacitor sizing is matched to the 36 kW power class, with a pre-charge circuit that limits inrush current during power-up — a critical protection mechanism for the upstream supply fuses and contactors.

DRIVE-CLiQ Topology Bus: The module integrates a DRIVE-CLiQ port that carries both the real-time process data (DC bus voltage, input current, temperature, fault codes) and the electronic nameplate data (article number, serial number, firmware version). When connected to a CU320-2 Control Unit, the SLM self-identifies and populates its parameter set automatically. This eliminates manual parameter entry errors during commissioning and enables the Control Unit to enforce firmware compatibility checks before enabling the power stage.

Thermal Management: An internal NTC temperature sensor on the IGBT heatsink feeds the thermal model in the Control Unit. If junction temperature approaches the protection threshold, the Control Unit reduces the output current setpoint in a controlled ramp rather than triggering an abrupt fault trip. This thermal fold-back behavior protects the power semiconductors while maintaining drive availability in high-ambient or restricted-airflow installations.

System Integration Benefits

• Shared DC Bus Efficiency: Multiple Motor Modules connected to a single 6SL3100-0BE23-6AB0 can exchange braking energy internally across the DC bus without that energy passing through the AC supply. An axis decelerating can directly power an axis accelerating, reducing the net demand on the SLM and the upstream supply infrastructure.
• Deterministic Real-Time Control: DRIVE-CLiQ operates at a fixed 125 µs isochronous cycle, synchronizing the SLM’s DC bus regulation loop with the Motor Module current controllers. This determinism is essential in multi-axis CNC and robotics applications where coordinated motion requires phase-coherent torque commands across all axes.
• Diagnostic Transparency: The SLM continuously reports over 40 diagnostic parameters to the Control Unit, including input phase voltages, DC bus voltage ripple, IGBT temperature, fan speed, and capacitor bank health indicators. These are accessible in real time via TIA Portal or STARTER without interrupting production.
• Reduced Cabinet Footprint: The booksize form factor and shared DC bus topology eliminate the need for individual rectifier stages per axis. A single SLM serving four Motor Modules occupies significantly less panel space than four independent drive units with separate rectifiers.
• Harmonic Compliance Without External Filters: The AFE’s active current shaping keeps THDi below 5 %, satisfying IEEE 519-2022 and EN 61000-3-12 harmonic limits in most industrial supply configurations. This avoids the cost and space penalty of passive harmonic filter banks.
• Seamless TIA Portal Integration: The module’s electronic nameplate is read automatically by TIA Portal V15 and later, populating the hardware catalog entry and enabling online firmware updates without manual article number entry.
• Scalable Power Architecture: The SINAMICS S120 system allows multiple SLMs to operate in parallel on a common DC bus for applications exceeding 36 kW, with the Control Unit managing load sharing between modules. The 6SL3100-0BE23-6AB0 participates in this parallel topology without additional hardware.
• Compatibility with Safety Functions: When paired with a CU320-2 DP or CU320-2 PN Control Unit and appropriate Safety Integrated option boards, the SLM supports Safe Torque Off (STO) and Safe Stop 1 (SS1) functions per IEC 62061 SIL 2 / ISO 13849-1 PLd, enabling integration into machinery safety architectures without external safety relays on the DC bus.
