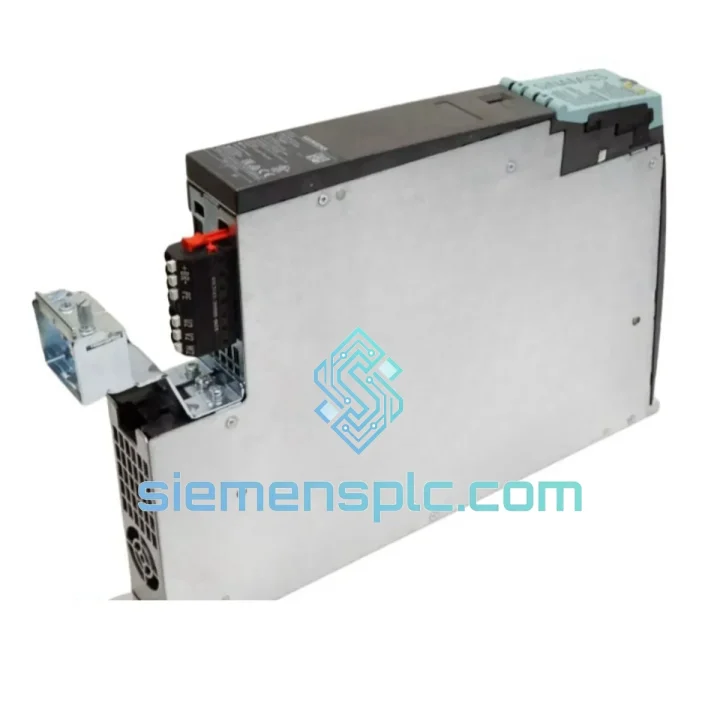

Siemens 6SL3120-1TE13-0AD0 AC Servo Drive Module – SINAMICS S120

Siemens 6SL3120-1TE13-0AD0 SINAMICS S120 Booksize Single Motor Module 3A — DC-Bus Architecture and Axis Control Role

The 6SL3120-1TE13-0AD0 is a Booksize-format Single Motor Module within the SINAMICS S120 drive system, rated at 3 A DC-link current. Its function within a multi-axis drive line-up is precisely defined: it receives a stabilized DC bus voltage from an upstream Line Module, converts that DC power into a three-phase PWM output, and delivers controlled current to a single servo or induction motor axis. The module does not operate independently — it is a subordinate power stage governed by a SINAMICS S120 Control Unit (CU320-2 or CU310-2) via the DRIVE-CLiQ serial interface.

At 3 A DC-link rating, this module targets low-to-medium torque axes: auxiliary positioning axes, tool changers, rotary tables, and feed axes in compact machine tool configurations. Its slim Booksize profile allows multiple modules to be mounted side-by-side on a shared DC bus bar, with a common cooling channel — a mechanical arrangement that directly reduces cabinet footprint and simplifies thermal management compared to standalone drive topologies.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

DC-Bus Power Stage Architecture
The 6SL3120-1TE13-0AD0 operates as a voltage-source inverter (VSI) drawing from a shared 600 V DC bus. The IGBT bridge within the module executes space-vector PWM at a default 4 kHz carrier frequency, generating a sinusoidal motor current with low harmonic distortion. At 3 A DC-link rating, the IGBT gate drive circuitry is sized for low-inductance switching transitions, which reduces switching losses and keeps junction temperatures within safe margins even at elevated ambient conditions.

DRIVE-CLiQ Communication Layer
DRIVE-CLiQ is Siemens’ proprietary serial protocol running over standard CAT5e cabling at 100 Mbit/s full-duplex. Each DRIVE-CLiQ node — including this Motor Module — carries an embedded Electronic Rating Plate (ERP) stored in non-volatile memory. When the Control Unit powers up, it reads the ERP from every connected node, automatically identifies the hardware topology, and cross-references it against the stored drive configuration. This eliminates manual parameter entry for hardware identification and reduces commissioning errors in multi-axis systems. The 1 ms isochronous cycle time of DRIVE-CLiQ is synchronized to the servo control cycle of the CU320-2, ensuring deterministic current setpoint delivery to the power stage.

EMC Design and Conducted Emission Suppression
The Booksize form factor integrates a common-mode choke on the DC-bus input to suppress high-frequency conducted emissions generated by IGBT switching transients. The module’s PCB layout separates high-voltage power traces from low-voltage signal paths with a defined clearance zone, reducing capacitive coupling between the PWM output stage and the DRIVE-CLiQ signal layer. The metal housing provides a Faraday shield against radiated emissions, and the module’s PE (protective earth) connection is bonded directly to the cabinet bus bar through a low-impedance contact, maintaining a continuous EMC ground reference across the entire drive line-up.

Integrated Safety Hardware Path
The STO function is implemented as a hardware-level gate inhibit: when the STO input is de-energized, the IGBT gate drive supply is physically disconnected, preventing any PWM pulses from reaching the motor regardless of firmware state. This two-channel STO architecture (STO_A and STO_B) satisfies IEC 62061 SIL 2 and ISO 13849-1 Category 3 PL d without requiring an external safety contactor on the motor output — a measurable reduction in panel wiring and component count for machine builders operating under Machinery Directive 2006/42/EC.

Thermal Management and Derating Logic
An NTC thermistor mounted on the IGBT heatsink feeds a real-time temperature signal to the module’s local processor. If the heatsink temperature exceeds the warning threshold (typically 80 °C), the module reduces switching frequency from 4 kHz to 2 kHz to lower switching losses. If the temperature continues to rise toward the trip threshold (typically 95 °C), the module initiates a controlled ramp-down and issues a fault code via DRIVE-CLiQ to the Control Unit, enabling the PLC to execute a safe stop sequence rather than an uncontrolled trip.

System Integration Benefits

• Shared DC-Bus Energy Recovery: Regenerative braking energy from decelerating axes is returned to the 600 V DC bus and consumed by simultaneously accelerating axes. In multi-axis machine tool applications, this inter-axis energy exchange can reduce peak grid demand by 20–40%, depending on duty cycle overlap.
• Automatic Hardware Topology Detection: DRIVE-CLiQ ERP data eliminates manual drive identification during commissioning. TIA Portal reads the connected hardware tree and pre-populates axis parameters, reducing initial setup time from hours to minutes on complex multi-axis systems.
• Deterministic 1 ms Servo Cycle: The isochronous DRIVE-CLiQ link synchronizes current control execution in the Motor Module to the position/velocity loop in the CU320-2 at a fixed 1 ms interval, providing the timing determinism required for coordinated multi-axis interpolation in CNC and robotics applications.
• Integrated STO Without External Contactors: Hardware-level STO eliminates the motor output contactor in most Category 3 safety architectures, reducing panel space, wiring labor, and contactor wear-out as a maintenance item.
• Transparent Fault Diagnostics: The module reports over 60 distinct fault and alarm codes via DRIVE-CLiQ, covering overcurrent, overvoltage, ground fault, encoder loss, and thermal events. Each code maps to a specific hardware condition, enabling maintenance personnel to isolate faults without oscilloscope measurement.
• Scalable Multi-Axis Expansion: Additional Single or Double Motor Modules can be added to the DC bus without modifying the Line Module, provided total DC-bus load remains within the Line Module’s rated capacity. This allows machine variants to share a common drive platform with axis count adjusted per configuration.
• Wide Motor Compatibility: The module supports 1FK7, 1FT7, and 1PH8 Siemens servo motors natively via DRIVE-CLiQ motor encoder integration, and accommodates third-party motors with HTL/TTL encoders through the SMC20 Sensor Module — preserving investment in existing motor assets during drive upgrades.
• TIA Portal and STARTER Engineering: Full parameterization, trace recording, and firmware update are available through TIA Portal V14+ and STARTER V5.x. Drive traces with 125 µs sampling resolution enable precise analysis of transient torque and speed behavior during commissioning and fault investigation.

Quality Assurance & Global Logistics

Genuine Siemens Product Verification
Every 6SL3120-1TE13-0AD0 unit dispatched from siemensplc.com undergoes a structured pre-shipment inspection protocol. Visual inspection confirms intact Siemens holographic labels, unbroken factory seals, and correct hardware revision markings on the module nameplate. Firmware version is read via DRIVE-CLiQ and cross-referenced against Siemens’ published release history to confirm authenticity. Units with inconsistent firmware signatures or evidence of re-labeling are quarantined and excluded from sale. A 12-month warranty applies to all dispatched units, covering manufacturing defects and verified operational failures under normal operating conditions.

Xiamen Export Hub — Logistics Infrastructure
Xiamen is a designated Class-A customs port with direct sea and air freight connections to major industrial hubs across Southeast Asia, Europe, the Middle East, and the Americas. Xiamen Gaoqi International Airport handles daily cargo flights to Frankfurt, Amsterdam, Dubai, Los Angeles, and Singapore, enabling next-flight-out dispatch for urgent orders. Xiamen port provides weekly LCL and FCL consolidation services for bulk procurement orders requiring sea freight economics.

All export documentation — commercial invoice, packing list, certificate of origin, and HS code classification (HS 8537.10 for drive control modules) — is prepared in-house by our customs compliance team, ensuring clean customs clearance at destination ports. Multi-currency payment is accepted: USD, EUR, HKD, and CNY via T/T bank transfer, PayPal, and trade finance instruments. Typical express delivery timelines: 3–5 business days to Europe and North America via DHL Express or FedEx International Priority.
