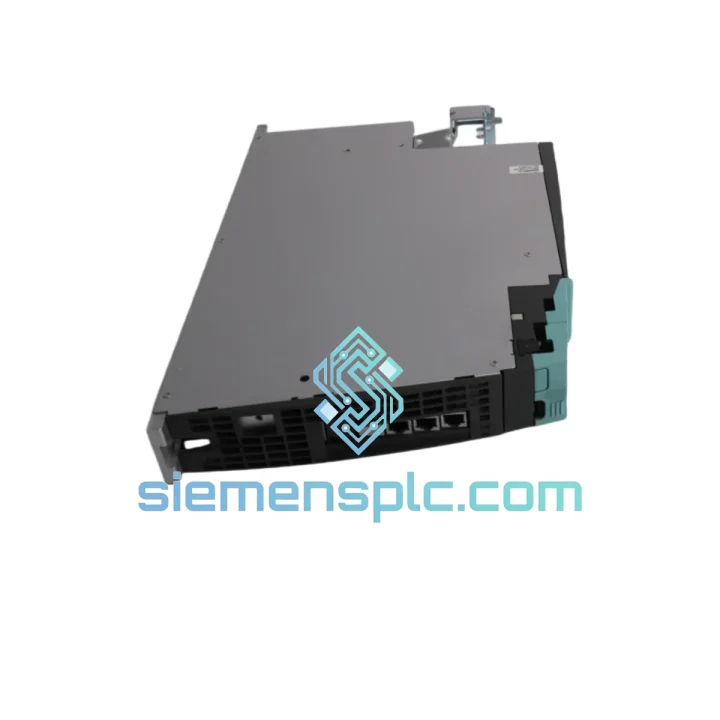

Siemens 6SL3120-1TE21-0AD0 Single Motor Module – SINAMICS S120

Siemens 6SL3120-1TE21-0AD0 — DC Bus-Coupled Axis Power Stage in the SINAMICS S120 Booksize Architecture

The 6SL3120-1TE21-0AD0 is a booksize-format Single Motor Module within the Siemens SINAMICS S120 drive family. It functions as a dedicated axis inverter, drawing regulated DC power from a shared Line Module and converting it into a three-phase PWM output to drive a connected servo or induction motor. Rated at 18 A continuous output current with a 200% overload capability for 5 seconds, this module is sized for servo axes in the 7.5–11 kW mechanical power range at 400 V AC motor voltage.

Unlike standalone variable-frequency drives, the 6SL3120-1TE21-0AD0 does not contain its own rectifier or mains interface. It operates exclusively on a shared DC bus (nominally 600 V DC for 400 V AC supply systems), which means braking energy from decelerating axes can be redistributed across the bus to accelerating axes — a passive energy-sharing mechanism that reduces peak demand on the Line Module and lowers overall cabinet heat dissipation without requiring an external braking resistor in most duty cycles.

Communication with the Control Unit (CU320-2 DP, CU320-2 PN, or CU310-2) is handled exclusively via DRIVE-CLiQ, Siemens’ proprietary serial interface operating at 100 Mbit/s full-duplex. DRIVE-CLiQ carries both control data (setpoint, actual value, status word) and electronic nameplate data from connected motors and encoders, eliminating manual parameterization of encoder type, pole count, and rated values. The module’s internal EEPROM stores its own electronic nameplate, which the Control Unit reads at power-up to auto-configure the axis without operator intervention.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

IGBT Power Stage and Gate Drive Architecture
The output stage of the 6SL3120-1TE21-0AD0 uses a three-phase IGBT bridge with dedicated gate driver ICs per switch. Gate drive signals are galvanically isolated from the control board via optocoupler barriers rated for ≥2.5 kV isolation voltage, ensuring that a fault on the motor side (phase-to-ground, phase-to-phase short) does not propagate into the low-voltage control circuitry. The IGBT modules are thermally coupled to an aluminum heat spreader with direct contact to the forced-air cooling channel; a thermistor embedded in the heat spreader feeds real-time junction temperature data to the control ASIC, which applies dynamic derating before thermal shutdown thresholds are reached.

DC Bus Capacitor Bank and Voltage Ripple Management
The module contains a local DC bus capacitor bank sized to absorb high-frequency switching ripple and short-duration regenerative transients. The capacitance value is deliberately kept minimal — bulk energy storage is the responsibility of the Line Module — but the local bank provides low-impedance decoupling at the switching frequency (4–16 kHz), preventing ripple from coupling into adjacent modules on the shared bus bar. Bus bar connections use silver-plated copper busbars with defined torque specifications to maintain contact resistance below 1 mΩ over the product lifetime.

EMC Design and Conducted Emission Suppression
The 6SL3120-1TE21-0AD0 is designed to meet IEC 61800-3 Category C2 conducted emission limits when installed with the recommended Siemens line filter on the Line Module. Internally, the PCB layout separates high-frequency switching nodes from the DRIVE-CLiQ signal traces using a ground plane partition strategy. Motor cable shield termination is via a dedicated EMC shield clamp on the module’s motor output terminal, providing a low-impedance path for common-mode currents back to the PE rail without routing them through the signal ground. This architecture prevents common-mode noise from appearing as differential interference on the encoder feedback path.

Integrated Safety EP Terminal Logic
The EP (Enable Pulses) terminals implement hardware-level STO without relying on firmware execution. When the EP+ / EP− circuit is opened (e.g., by a safety relay or safety PLC output), the gate drive supply to all six IGBTs is physically interrupted at the hardware level — no software command is required, and no firmware bug can re-enable the output. This architecture satisfies the requirements for PLe Category 4 per EN ISO 13849-1 and SIL 3 per IEC 62061 when wired according to Siemens Safety Integrated Application Manual.

DRIVE-CLiQ Electronic Nameplate and Auto-Commissioning
Each 6SL3120-1TE21-0AD0 stores a factory-programmed electronic nameplate in non-volatile memory. At Control Unit power-up, the topology scan reads this nameplate and automatically assigns axis parameters — rated current, switching frequency limits, thermal model coefficients — without manual data entry. Connected SIMOTICS motors with DRIVE-CLiQ encoders extend this auto-commissioning to the motor and encoder level, reducing commissioning time for a single axis from hours to minutes.

System Integration Benefits

• Shared DC Bus Energy Recovery: Regenerative braking energy from decelerating axes is fed back onto the common DC bus and consumed by simultaneously accelerating axes, reducing net energy drawn from the Line Module by up to 30% in multi-axis duty cycles with overlapping motion profiles.
• Deterministic Isochronous Communication: DRIVE-CLiQ operates in isochronous mode synchronized to the Control Unit’s servo cycle (125 µs minimum). Setpoint-to-output latency is bounded and jitter-free, a prerequisite for multi-axis interpolation in CNC and robotics applications.
• Scalable Multi-Axis Topology: Up to 6 Single Motor Modules can share a single CU320-2 Control Unit on one DC bus segment, with additional axes added via DRIVE-CLiQ daisy-chain without rewiring the power bus.
• Integrated Functional Safety Without External Hardware: STO and SS1 are implemented in hardware within the module. No external safety relay module is required for basic STO functionality, reducing BOM cost and panel wiring complexity.
• Transparent Axis Diagnostics via STARTER / TIA Portal Startdrive: The module exposes over 200 diagnostic parameters accessible via STARTER or TIA Portal Startdrive, including real-time IGBT junction temperature, DC bus voltage, output current waveform FFT data, and fault history with timestamps — enabling root-cause analysis without oscilloscope access.
• Thermal Derating Management: The internal thermal model continuously calculates estimated IGBT junction temperature based on output current, switching frequency, and measured heatsink temperature. When the estimated junction temperature approaches the limit, the drive automatically reduces switching frequency or output current before a fault trip occurs, maintaining axis availability in high-ambient installations.
• Firmware Consistency Across Platform: All SINAMICS S120 components — Control Unit, Line Module, Motor Modules — run synchronized firmware versions managed through a single TIA Portal project. Firmware mismatches are detected at topology scan and flagged before commissioning, preventing incompatibility faults in the field.
• Push-Through Cooling Compatibility: The booksize form factor supports push-through mounting, where the heat sink protrudes through the cabinet rear panel into an external cooling air duct. This separates the heat dissipation path from the control cabinet interior, allowing IP54 protection on the cabinet while maintaining IP20 on the drive electronics — a common requirement in food processing and washdown environments.
• Motor Compatibility Breadth: Beyond standard SIMOTICS S rotary servo motors, the 6SL3120-1TE21-0AD0 supports linear motors (1FN series), torque motors (1FW series), and third-party motors with TTL/HTL/SSI encoder interfaces via SMx sensor modules, providing flexibility across machine designs without changing the power module.
