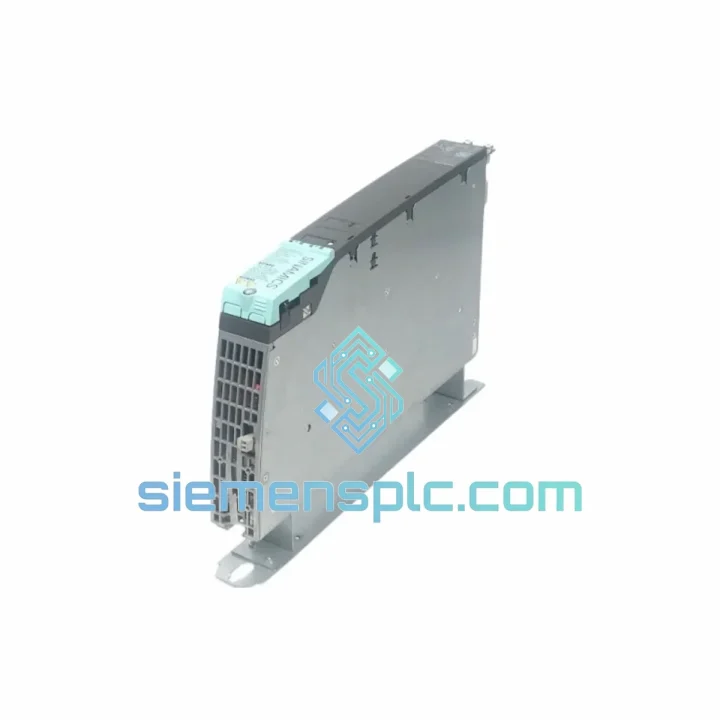

Siemens 6SL3120-1TE23-0AA4 Single Motor Module

6SL3120-1TE23-0AA4 — Your Line Is Down. Every Minute Costs Money. We Ship Today.

A failed Single Motor Module in a SINAMICS S120 Booksize system doesn’t just stop one axis — it kills the entire coordinated motion sequence. CNC spindle locked. Robot arm frozen. Packaging line halted. If you’re reading this at 2 AM with a production manager breathing down your neck, you already know what a 30 A motor module failure costs per hour. We stock the Siemens 6SL3120-1TE23-0AA4 in Xiamen and ship same-day via DHL Express. That’s the only thing that matters right now.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field calls on S120 systems teach you one thing: most “module failures” are actually misdiagnosed. Before you pull the 6SL3120-1TE23-0AA4, run through this checklist — it’ll save you a second trip.

Common Fault Codes on This Module:

• F30001 / F30002 — DC bus overvoltage / undervoltage: Don’t replace the motor module first. Check the Line Module (ALM/SLM) and DC bus capacitors. A failing Line Module will kill a new motor module within hours.
• F30021 — Ground fault detected: Isolate the motor cable before condemning the module. Insulation breakdown in the motor winding or cable shielding is the #1 cause of this fault on older machines. Megger the motor at 500 V DC — if it reads below 1 MΩ, the motor is the culprit, not the module.
• F30024 — Heatsink overtemperature: Pull the module, clean the fan intake and exhaust vents with compressed air. Blocked airflow in a dusty cabinet is responsible for roughly 40% of thermal shutdowns on Booksize drives. If the fan blade is cracked or seized, replace the fan assembly before reinstalling.
• A30042 — Motor blocked / stall detection: Check mechanical load — seized bearing, jammed gearbox, or overtightened brake. The module is almost certainly fine.
• F07900 series — DRIVE-CLiQ communication errors: Swap the DRIVE-CLiQ cable first. These cables fail at the connector crimp point from repeated cabinet door flexing. A $15 cable swap has saved many a $3,000 module replacement call.

Replacement Procedure — Critical Steps:

• Step 1 — Power down correctly: Disable the infeed, wait for the DC bus to discharge below 50 V (check with a meter — don’t trust the LED alone on aged capacitors), then lock out. The 6SL3120-1TE23-0AA4 holds significant bus energy.
• Step 2 — Document DRIVE-CLiQ topology before disconnecting: Take a photo of the cable routing. S120 systems are topology-sensitive; reconnecting DRIVE-CLiQ cables in the wrong port order will generate F01375 topology errors and prevent the system from coming online.
• Step 3 — Check firmware version on the replacement unit: The 6SL3120-1TE23-0AA4 uses embedded firmware that must match or be compatible with the Control Unit (CU320-2) firmware version. Mismatched firmware generates F01018 on startup. Use STARTER or Startdrive to check and update if needed before closing the cabinet.
• Step 4 — DRIVE-CLiQ auto-addressing: On first power-up with a new module, the CU320-2 will perform automatic component identification via DRIVE-CLiQ. Do NOT interrupt this sequence. It typically takes 60–90 seconds. If the system was previously configured with a specific drive object assignment, verify the axis mapping in STARTER/Startdrive matches the physical slot position.
• Step 5 — Re-run motor identification: After module swap, execute a stationary motor identification (p1910 = 1) before running under load. This recalibrates the current controller parameters to the actual motor connected, preventing torque ripple and instability on the first production run.
• Step 6 — Verify STO wiring: The STO terminals (EP terminals) on the 6SL3120-1TE23-0AA4 must be correctly wired and the safety function validated per your machine’s safety assessment before returning to production. A missing STO signal will prevent the drive from enabling.

DIP Switch / Hardware Settings: The 6SL3120-1TE23-0AA4 Booksize module has no user-accessible DIP switches for address setting — addressing is handled entirely via DRIVE-CLiQ enumeration by the Control Unit. No manual hardware configuration is required on the module itself.

Reliability in Harsh Conditions

The SINAMICS S120 Booksize platform was engineered for industrial environments where “controlled conditions” is a polite fiction. The 6SL3120-1TE23-0AA4 is rated to operate continuously at ambient temperatures up to 55 °C with derating, and its internal thermal management system actively monitors IGBT junction temperatures, adjusting switching frequency and output current limits in real time to prevent thermal runaway rather than simply tripping on overtemperature.

Vibration resistance meets IEC 60068-2-6 test standards — the module’s internal bus bar connections and IGBT power stack are mechanically secured to withstand the continuous low-frequency vibration typical of press rooms, compressor halls, and ship engine rooms. Conformal coating on the control PCB provides protection against condensation and airborne contaminants including metallic dust from machining operations — a common failure accelerator in unprotected drives.

The DC bus capacitor bank in this module is rated for a defined service life under nominal operating conditions. In high-cycle applications (frequent acceleration/deceleration, regenerative braking), capacitor aging is the primary long-term wear mechanism. Units supplied from our Xiamen stock are inspected for capacitor condition and date codes — we do not supply modules with capacitors showing signs of electrolyte leakage or bulging, which are the field indicators of end-of-life capacitor banks regardless of the module’s apparent operational status.

The forced-air cooling fan is a field-replaceable component. Fan bearing wear is the second most common cause of thermal faults on Booksize drives in service beyond five years. If you’re replacing a module that failed on overtemperature and the fan shows any wobble or noise, replace the fan assembly simultaneously — it’s a 10-minute job that prevents a repeat call in six months.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct DHL Express and FedEx International Priority service to major industrial centers worldwide. Here’s what the logistics chain looks like from your order to your cabinet:

• Order confirmation: Same-day confirmation for orders received before 16:00 CST. Urgent orders flagged for priority pick and pack.
• Export documentation: Commercial invoice, packing list, and HS code declaration (HS 8537.10 / 8504.40 depending on customs classification) prepared same day. We handle export customs clearance in Xiamen — no delays at origin.
• Packaging: The 6SL3120-1TE23-0AA4 ships in ESD-safe anti-static bag, foam-lined rigid outer carton, with moisture-barrier desiccant pack. Gross shipping weight approximately 13 kg. Carton dimensions comply with DHL/FedEx standard size limits — no oversized surcharges.
• Transit times (DHL Express / FedEx IP): Southeast Asia 2–3 business days | Europe 3–5 business days | Middle East 3–4 business days | North America 4–6 business days | Australia 3–5 business days.
• Tracking: AWB number provided within 2 hours of dispatch. Real-time tracking link sent via email and WhatsApp.
• Import duties: We provide accurate HS codes and declared values to facilitate smooth customs clearance at destination. For EU imports, EORI number coordination available on request. For US imports, we can provide IOR (Importer of Record) referrals if needed.
• Emergency freight: For genuine production-critical situations, we can arrange next-flight-out courier service from Xiamen Gaoqi International Airport. Contact us directly on WhatsApp for this option — it bypasses standard booking queues.
