Siemens 6SL3120-2TE13-0AD0 Double Motor Module

6SL3120-2TE13-0AD0 Down? Every Minute of Downtime Costs You Money — We Ship Today

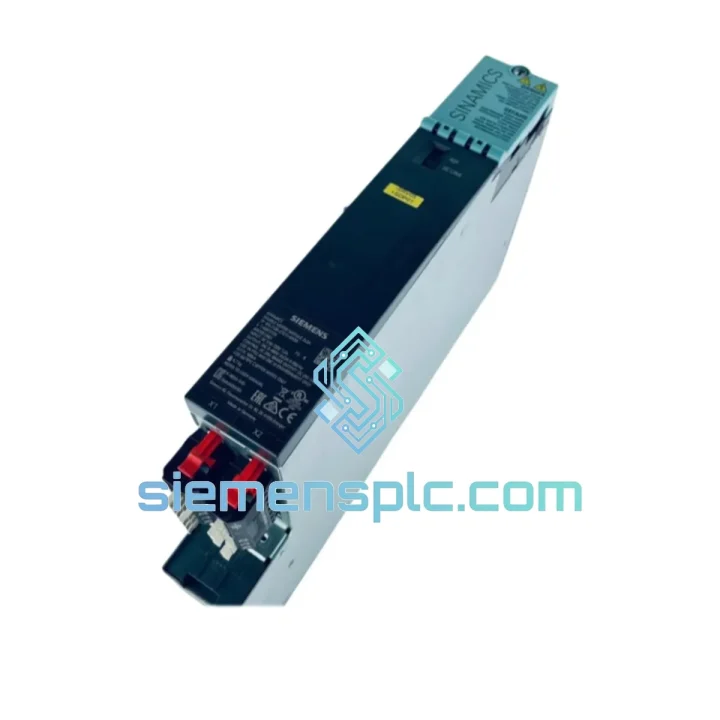

A failed SINAMICS S120 Double Motor Module doesn’t just stop one axis — it kills two simultaneously. On a CNC machining center or a high-speed packaging line, that means your entire cell is dark. The 6SL3120-2TE13-0AD0 is a booksize dual-axis module rated at 3 A per channel, and when it fails, there is no workaround. You need an exact replacement, firmware-matched, tested, and on a truck before your shift supervisor starts asking questions.

We stock the 6SL3120-2TE13-0AD0 in Xiamen. Not “available to order” — physically on the shelf, inspected, and ready to label. DHL Express to most destinations in 2–4 business days. If your line is down right now, stop reading and contact us first.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common fault codes that point directly to this module:

• F30001 / F30002 — DC link overvoltage or undervoltage. Before condemning the module, verify the Line Module is healthy and the DC bus capacitors are not degraded. If the Line Module checks out, the 6SL3120-2TE13-0AD0 power stage is the next suspect.
• F07900 / F07901 — Motor Module hardware fault. This is a direct module-level fault. Power cycle once; if it persists across both axes, the module is failed and must be swapped.
• A05006 — DRIVE-CLiQ communication error on the module port. Check the DRIVE-CLiQ cable first (6FX2002-1DC00 series). If the cable is intact and the fault follows the module to a different slot, the module’s CLiQ interface is damaged.
• F30021 — Ground fault detected. Inspect motor cables for insulation breakdown before installing the replacement — a shorted cable will destroy the new module within minutes.

Replacement procedure — field-tested sequence:

1. Export the drive parameters from STARTER/Startdrive before powering down. Save the project file with a timestamp. This is non-negotiable.
2. De-energize the cabinet. Verify DC bus discharge — the S120 bus capacitors hold lethal voltage for up to 5 minutes after power-off. Use a calibrated meter, not assumption.
3. Disconnect DRIVE-CLiQ cables, motor power connectors (X1/X2), and the DC bus bar adapter. Label every connector before removal.
4. Slide the module out of the booksize rail. The replacement 6SL3120-2TE13-0AD0 is mechanically identical — no bracket modification required.
5. The S120 booksize system uses automatic address assignment via DRIVE-CLiQ topology. The Control Unit (CU320-2) will detect the new module on first power-up and assign it the same drive object number, provided the topology is unchanged. No DIP switch setting is required on this module.
6. Firmware matching: the CU320-2 will attempt to download the correct firmware to the new module automatically if “Automatic firmware update” is enabled in STARTER. Verify the firmware version matches the rest of the drive train — mismatched firmware between the CU and Motor Module is a common cause of post-replacement F-faults.
7. Restore parameters from the saved project. Perform a “RAM to ROM” save after successful commissioning.
8. Run the motor at reduced speed before returning to full production. Monitor current feedback on both axes for the first 30 minutes.

Configuration note: The -0AD0 hardware revision suffix is important. It is functionally equivalent to earlier revisions at the same current rating, but always verify firmware compatibility in STARTER before substituting across revision levels in a SINUMERIK 840D sl environment.

Reliability in Harsh Conditions

The SINAMICS S120 booksize platform was engineered for industrial environments that would destroy consumer-grade electronics. The 6SL3120-2TE13-0AD0 is rated to operate continuously in ambient temperatures up to 40°C (with derating to 55°C), withstands vibration per IEC 60068-2-6 (10–500 Hz, 1 g), and carries a protection class of IP20 within a properly sealed control cabinet.

The internal power stage uses Siemens-qualified IGBT modules with gate driver circuits designed for high-cycle switching without thermal runaway. The DC bus capacitor bank is sized for the full booksize current range, meaning the 3 A variant operates well within its thermal envelope under continuous duty. In high-humidity environments (up to 95% RH non-condensing per IEC 60068-2-3), the conformal coating on the control PCB prevents corrosion-induced failures that plague lower-grade drives.

Every unit we ship has been stored in climate-controlled conditions with anti-static packaging and a humidity indicator card. We do not ship modules that have been exposed to uncontrolled warehouse environments. If the indicator card shows breach, the unit is quarantined — not sold.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian, China — one of China’s primary export hubs with direct DHL Express and FedEx International Priority service. Here is what happens after you confirm your order:

• Same-day dispatch for orders confirmed before 14:00 CST on business days.
• Export documentation prepared in-house: commercial invoice, packing list, certificate of origin, and HS Code 8504.40 declaration. No delays at customs clearance caused by missing paperwork.
• DHL Express / FedEx IP transit times: Southeast Asia 1–2 days, Europe 3–5 days, North America 3–5 days, Middle East 3–4 days, South America 5–7 days.
• Tracking number sent within 2 hours of dispatch via email and WhatsApp.
• Trade terms available: EXW Xiamen, FOB Xiamen. T/T wire transfer and PayPal accepted.
• For critical downtime situations, contact us directly on WhatsApp for priority processing — we will confirm stock and generate a proforma invoice within 30 minutes during business hours.
