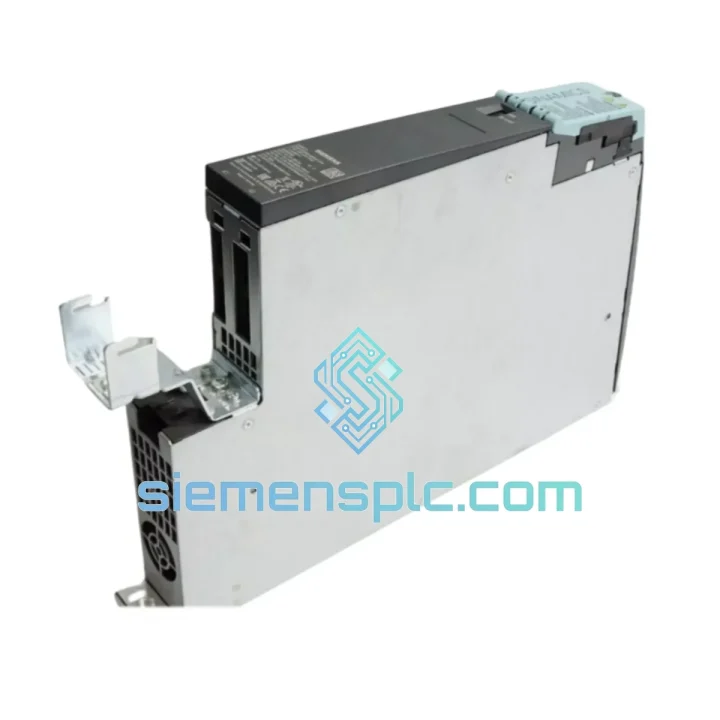

Siemens 6SL3120-2TE21-0AD0 Motor Module

6SL3120-2TE21-0AD0 — Stop the Bleeding: Dual-Axis Drive Back Online Before the Next Shift

Your line is down. Two axes dead. The CNC controller is throwing F07801 or A07850 and the shift supervisor is already on the phone. You know the drill — every hour this Double Motor Module sits failed is money walking out the door. In automotive stamping, that’s $8,000–$15,000/hr. In aerospace milling, worse. The Siemens 6SL3120-2TE21-0AD0 is on our shelf in Xiamen right now. Not on order. Not in transit from a warehouse in Europe. Here. Today. We ship DHL Express within 24 hours of payment confirmation. That’s the only number that matters when your production schedule is burning.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common fault codes that point directly to this module:

• F07801 / F07802 — Motor Module overcurrent or short circuit. Before condemning the module, check motor winding resistance and DRIVE-CLiQ cable continuity. If motor checks out clean, the module’s IGBT bridge is the culprit.
• F30001 / F30002 — DC bus undervoltage or overvoltage. Verify the Line Module is healthy first. If the Line Module is outputting correct DC link voltage and this axis still faults, the module’s internal voltage sensing circuit has failed.
• A07850 — Motor Module temperature warning. Check fan operation and airflow clearance (minimum 50 mm above and below). If fan is spinning and ambient is within spec, the NTC thermistor inside the module is drifting — replacement is the only fix.
• F07900 — Encoder fault on DRIVE-CLiQ. Swap the DRIVE-CLiQ cable first. If fault persists after cable swap, the module’s DRIVE-CLiQ port has failed.

Step-by-step hot-swap procedure (booksize format):

1. Issue OFF2 (coast stop) from the CNC or PLC. Confirm both axes are at standstill. Do not use OFF1 — the DC bus must discharge fully before you touch anything.
2. Lock out / tag out the incoming AC supply to the Line Module. Measure DC bus voltage at the module’s DC bus connector with a calibrated meter. Wait until voltage drops below 50 V DC — this typically takes 3–5 minutes after power removal.
3. Disconnect DRIVE-CLiQ cables from X200 and X201 ports. Label them — axis assignment matters. Disconnect motor power cables from X1 and X2. Note the cable routing before removal.
4. Release the DC bus connector (spring-clamp type on most S120 booksize units). Slide the module off the mounting rail. The replacement unit slides in on the same rail — no tools required for the mechanical fit.
5. Critical — DRIVE-CLiQ topology: The replacement module will auto-assign its component ID via DRIVE-CLiQ on first power-up. If your CU320-2 has a fixed topology configured (common in SINUMERIK 840D sl systems), you must either accept the new component ID in STARTER/Startdrive or pre-configure the replacement module’s firmware version to match. Mismatched firmware between the CU and the Motor Module will generate F01375 — check firmware compatibility via Siemens SIOS before powering up.
6. Reconnect motor power cables and DRIVE-CLiQ in the original order. Power up the Line Module first, then enable the Control Unit. Monitor the STARTER/Startdrive drive navigator — both axes should appear green within 30 seconds of power-up.
7. Run a short jog cycle on each axis at 10% speed before releasing to production. Verify actual current matches expected no-load current from the motor datasheet.

Configuration notes specific to 6SL3120-2TE21-0AD0:

• No DIP switches or rotary address switches on this module — addressing is fully automatic via DRIVE-CLiQ enumeration. Do not attempt to set addresses manually.
• If replacing a module with a different firmware version, use Startdrive V17 or later to perform a firmware update before commissioning. Older STARTER versions may not recognize the updated module variant.
• The 10 A rating is per axis simultaneously. Do not assume 20 A combined — each axis is independently current-limited. Running both axes at peak simultaneously without derating will trigger thermal shutdown within minutes in a poorly ventilated cabinet.

Reliability in Harsh Conditions

The SINAMICS S120 booksize platform was not designed for climate-controlled server rooms. It was built for the factory floor — and the 6SL3120-2TE21-0AD0 reflects that. The module’s power stage uses Siemens-qualified IGBTs rated for industrial duty cycles, not consumer-grade switching devices. The internal gate driver circuitry is conformal-coated against humidity ingress, which matters in coastal manufacturing facilities and tropical climates where condensation is a real failure mode.

Vibration resistance meets IEC 60068-2-6 Class 3M4 — the module will not loosen its DRIVE-CLiQ connectors or develop intermittent faults from the mechanical vibration of a press line or a large milling machine running at full spindle speed. The DC bus connector uses a spring-clamp design that maintains contact force regardless of thermal cycling — unlike screw-terminal designs that loosen over years of heat expansion and contraction.

Thermal management is active, not passive. The internal fan is speed-controlled based on module temperature, which extends fan bearing life compared to fixed-speed designs. In our pre-shipment inspection, we verify fan operation and measure no-load thermal rise to confirm the cooling circuit is intact before the unit leaves our facility.

Units sourced through siemensplc.com are inspected for physical integrity, label authenticity, and where possible, firmware version verification. We do not sell modules with damaged housings, corroded connectors, or evidence of prior field repair. Every unit ships in ESD-safe packaging with desiccant — because a module that arrives with moisture damage from a poorly packed shipment is not a replacement, it’s a second problem.

Global Express Logistics

Our warehouse is in Xiamen, Fujian — one of China’s primary export hubs with direct DHL and FedEx gateway access. This is not a drop-ship arrangement. Stock is physically on our shelves, inspected, and ready to pack the moment your payment clears.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Thailand, Vietnam, Malaysia): 2–3 business days via DHL Express
• Europe (Germany, Italy, Poland, Czech Republic): 3–5 business days via DHL Express or FedEx International Priority
• North America (USA, Canada, Mexico): 3–5 business days via FedEx International Priority
• Middle East (UAE, Saudi Arabia, Turkey): 3–4 business days via DHL Express
• India, Pakistan, Bangladesh: 3–4 business days via DHL Express
• Australia, New Zealand: 3–5 business days via DHL Express

Every shipment includes a commercial invoice, packing list, and certificate of origin — the documents your customs broker needs to clear the shipment without delays. For customers in the EU, we can provide an EUR.1 movement certificate upon request. For customers in countries with import duty exemptions on industrial automation components, we will work with you to ensure the HS code declaration is accurate and defensible.

We do not use economy postal services for industrial components. The cost difference between DHL Express and a postal service is trivial compared to one additional day of production downtime. If your procurement policy requires a specific carrier, tell us — we have accounts with DHL, FedEx, and UPS and can accommodate carrier preferences without surcharge on standard shipments.

For orders placed before 14:00 CST on business days, same-day dispatch is available. Contact us via WhatsApp to confirm cut-off time for your specific order.
