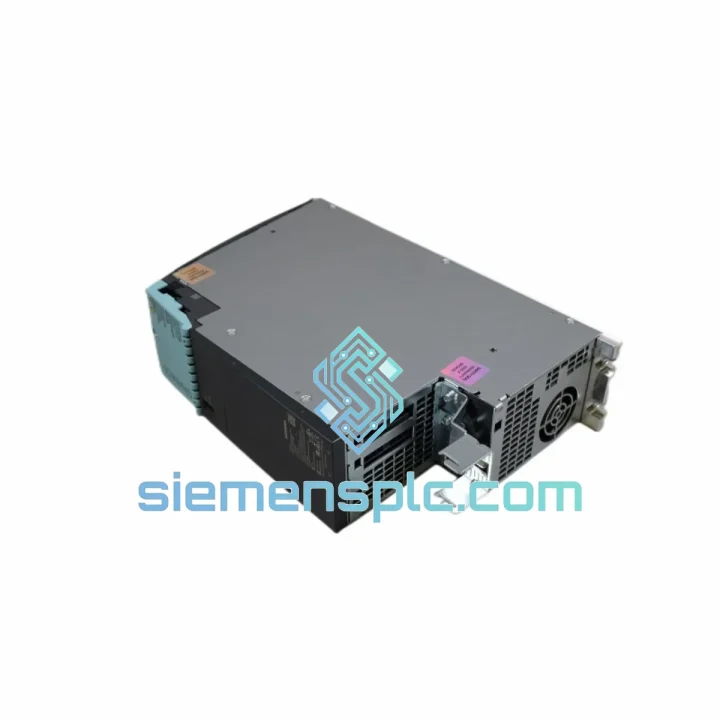

6SL3120-2TE21-8AC0 Double Motor Module — Stop the Clock on Your Downtime

Every minute a SINAMICS S120 drive axis sits dead, your line is bleeding money. The Siemens 6SL3120-2TE21-8AC0 Double Motor Module is one of the most failure-prone booksize components in high-cycle CNC and packaging environments — and when it goes, you need a verified replacement on your bench today, not in six weeks. We stock this module in Xiamen and ship globally via DHL/FedEx Express. Order before 15:00 CST and it moves the same day.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The 6SL3120-2TE21-8AC0 fails in predictable patterns. Here is what you will see on the CU320-2 fault display and what it actually means on the bench:

F30015 — Power unit: phase failure. Before condemning the module, check the DC bus fuses and the incoming rectifier. If the bus is clean and the fault persists after a power cycle, the IGBT gate driver board inside the motor module is the culprit. Replace the module.

F07900 / A07901 — DRIVE-CLiQ communication fault. Reseat the DRIVE-CLiQ cable at both ends first. If the fault clears momentarily and returns, the DRIVE-CLiQ port on the motor module is degraded — common after moisture ingress or vibration-induced connector fretting. Replace the module and re-run the topology scan in STARTER or TIA Portal.

F30021 — Ground fault detected. Isolate each motor cable individually. If the fault disappears when one motor is disconnected, the fault is in the motor winding or cable, not the module. If the fault persists with both motors disconnected, the module’s output stage has failed internally.

Replacement procedure — key steps:

• De-energize the drive line-up and discharge the DC bus. Measure with a meter — do not trust the LED alone. Wait a minimum of 5 minutes after power-off before touching the DC bus bars.
• Label and photograph all DRIVE-CLiQ cable positions before removal. The topology is stored in the CU, but a photo saves time during re-commissioning.
• The 6SL3120-2TE21-8AC0 uses automatic component addressing via DRIVE-CLiQ. No DIP switch setting is required on the module itself. After swapping, power up and allow the CU320-2 to perform an automatic topology comparison. Accept the new component when prompted.
• If the CU reports a component mismatch (F01375), navigate to the drive object in STARTER → Commissioning → Automatic configuration and re-run the topology detection. Save and download to the drive.
• Verify firmware compatibility. The replacement module must run firmware equal to or newer than the CU320-2 firmware version. Check via STARTER: Online → Drive unit → Firmware version. If the module firmware is older, use STARTER to perform a firmware update before going live.
• After commissioning, run a no-load test on both axes before reconnecting the mechanical load. Monitor current feedback on both channels for symmetry.

Reliability in Harsh Conditions

The SINAMICS S120 booksize platform was engineered for industrial environments that would destroy consumer-grade electronics in hours. The 6SL3120-2TE21-8AC0 is rated for continuous operation at ambient temperatures up to 40°C (derated to 55°C), with a storage range of −40°C to +70°C. The internal forced-air cooling system maintains junction temperatures within safe limits even during sustained peak-load cycles in poorly ventilated control cabinets.

Vibration resistance is validated to IEC 60068-2-6: 10–58 Hz at 0.075 mm displacement, 58–500 Hz at 9.8 m/s². In automotive body-shop and press-line environments where the cabinet itself vibrates with the machinery, this matters. The DRIVE-CLiQ connectors are latched and keyed — they do not back out under vibration the way standard RJ45 connections do.

Humidity tolerance is rated to 95% relative humidity, non-condensing. For installations in coastal or high-humidity facilities — paper mills, food processing, chemical plants — this module handles the environment without conformal coating modifications. That said, if your cabinet has a history of condensation events, inspect the DC bus bar insulators and the fan inlet filter before installing the replacement unit.

The IP20 rating means the module is designed for installation inside a closed, properly sealed control cabinet. It is not a field-mount device. If your cabinet door seals are compromised, address that before commissioning the replacement — a second failure from the same environmental cause is an expensive lesson.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. Here is how your order moves:

• Order confirmation → same-day pick and pack for orders placed before 15:00 CST. The module is pulled from bonded stock, inspected, and packed in anti-static foam with corner protection.
• Export documentation is prepared in parallel: commercial invoice, packing list, and certificate of origin. For destinations requiring an import license or specific HS code declaration (8537.10 / 8504.40), we coordinate with our customs broker to ensure clean clearance.
• DHL Express Worldwide: typical transit 2–4 business days to Europe, 3–5 days to North America, 1–3 days to Southeast Asia.
• FedEx International Priority: available as an alternative for destinations where FedEx has stronger last-mile coverage (Middle East, South America, parts of Africa).
• Tracking numbers are sent via email within 2 hours of handover to the carrier. WhatsApp updates are available on request.
• For urgent plant-down situations, we can arrange airport-to-airport freight with local customs broker coordination at the destination — contact us directly to discuss.

We have shipped SINAMICS S120 components to Germany, the United States, Mexico, Brazil, India, South Korea, Australia, and across Southeast Asia. Customs clearance issues are rare when documentation is complete — and we make sure it is.
