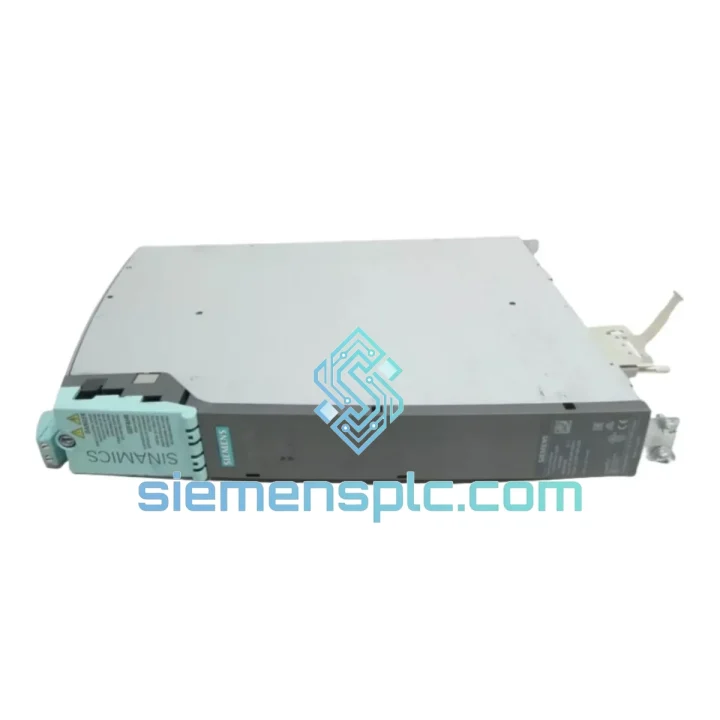

Siemens 6SL3130-6AE15-0AB1 Active Line Module

Siemens 6SL3130-6AE15-0AB1 — Stop the Bleeding. Get Your Line Back Up Today.

Every minute your SINAMICS S120 drive system sits dead, you’re burning money. A failed Active Line Module doesn’t just halt one axis — it takes down the entire DC bus, freezing every Motor Module downstream. We’ve seen it: a 5 kW ALM failure on a Monday morning that shut down a 12-axis CNC cell for 36 hours before a replacement arrived. That doesn’t happen when you source from siemensplc.com.

The 6SL3130-6AE15-0AB1 is in stock in Xiamen right now. We ship DHL Express same day on orders confirmed before 14:00 CST. Your panel is back online before your maintenance manager writes the incident report.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field work tells you the same story every time: most ALM failures on the 6SL3130-6AE15-0AB1 trace back to three root causes. Know them before you pull the module.

Fault F06000 / F06010 — DC Link Overvoltage: This is the most common alarm on a failing ALM. Before condemning the module, check the line voltage at X1 terminals. A supply spike above 528 V AC will trigger this fault on a healthy unit. If supply is clean and the fault persists across a power cycle, the IGBT pre-charge circuit or the DC link capacitor bank is degraded. Replace the ALM.

Fault A06900 — Line Module Overtemperature: The internal NTC thermistor reports over-temperature. First verify the fan is spinning — the 6SL3130-6AE15-0AB1 uses a 24 V DC internal fan that can fail independently. Check connector X46. If the fan is running and the cabinet ambient is below 40 °C, the thermistor itself or the power board is failing. A replacement module resolves this immediately.

DRIVE-CLiQ Topology Error after Replacement: This catches engineers off guard. When you swap in a new 6SL3130-6AE15-0AB1, the CU320-2 will detect a component change and may lock out with F01650 or F01660. You must accept the new topology in STARTER or TIA Portal (Online → Accept Topology). Do not skip this step — the drive will not release the DC bus enable until topology is confirmed.

Firmware Mismatch Warning A01007: If the replacement module carries a different firmware version than the rest of your S120 line-up, you’ll see this advisory. It’s non-fatal but should be resolved. Use STARTER to perform a firmware download to the ALM, matching the CU320-2 firmware version. Mismatched firmware across a booksize stack causes intermittent communication faults under load.

Replacement Checklist (Field-Proven):

• Isolate and lock out supply — verify DC link is fully discharged (wait minimum 5 minutes, measure at DC bus terminals).
• Label and photograph all DRIVE-CLiQ cable positions before disconnecting — X100, X101, X200, X201 positions matter.
• Transfer the 24 V DC control supply connector (X124) and the EP terminal wiring exactly as found.
• Do not swap the Control Unit (CU320-2) unless separately diagnosed — the ALM and CU are independent.
• After installation, power up with the drive in a safe state. Accept topology in TIA Portal / STARTER before enabling the drive.
• Run a no-load test: verify DC link voltage stabilizes at ~600 V DC and no faults appear within 60 seconds.

Reliability in Harsh Conditions

The 6SL3130-6AE15-0AB1 was not designed for a climate-controlled server room. It was built for the floor — and the floor is brutal.

Siemens subjects the SINAMICS S120 booksize series to IEC 60068-2 environmental testing: sinusoidal vibration at 10–200 Hz, 1 g continuous; shock loads up to 15 g; humidity cycling from 5% to 95% RH non-condensing. The internal power board uses conformal coating on critical sections to resist condensation ingress during temperature transitions — a common failure mode in coastal and tropical plant environments.

The DC link capacitors are rated for 100,000 hours at nominal operating temperature. The IGBT modules are soldered with lead-free alloy to IPC-A-610 Class 3 standards — the same standard used in aerospace and defense electronics. This is not a consumer-grade component dressed up in industrial packaging. Every unit we ship from Xiamen has passed incoming inspection: visual check of label authenticity, housing integrity, connector pin condition, and DRIVE-CLiQ handshake verification.

We store units in anti-static, humidity-controlled racking. Each outbound shipment is packed in anti-static foam-lined export cartons with a humidity indicator card. If the card reads red when your engineer opens the box, contact us immediately — it has never happened, but the card is there because we take this seriously.

Global Express Logistics

Our warehouse is in Xiamen, Fujian — one of China’s primary export hubs with direct DHL Express and FedEx International Priority lanes to every major industrial market.

Standard Express Timeline (from order confirmation):

• Europe (Germany, Italy, Poland, Czech Republic): 3–5 business days via DHL Express Worldwide
• North America (USA, Canada, Mexico): 3–5 business days via FedEx International Priority
• Southeast Asia (Thailand, Vietnam, Indonesia, Malaysia): 2–3 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Turkey): 3–4 business days via DHL Express
• South America (Brazil, Chile, Argentina): 5–7 business days via FedEx

Every shipment includes a commercial invoice, packing list, and certificate of origin — ready for customs clearance. For orders requiring an ATA Carnet, formal import permit documentation, or HS code pre-classification letters, contact us before placing the order. We handle the paperwork so your customs broker doesn’t hold the shipment at the port.

Same-day dispatch is available for orders confirmed before 14:00 CST Monday–Friday. Weekend orders are dispatched the following Monday morning. Tracking numbers are sent via email and WhatsApp within 2 hours of dispatch.

For plant shutdowns, scheduled maintenance windows, or emergency breakdowns requiring guaranteed next-flight-out courier, contact us directly on WhatsApp. We have handled emergency shipments to running production lines in Germany, Thailand, and Brazil — we know how to move fast when it counts.

Contact Information

Email: [email protected]
WhatsApp: +86 18359268345
Web: siemensplc.com
