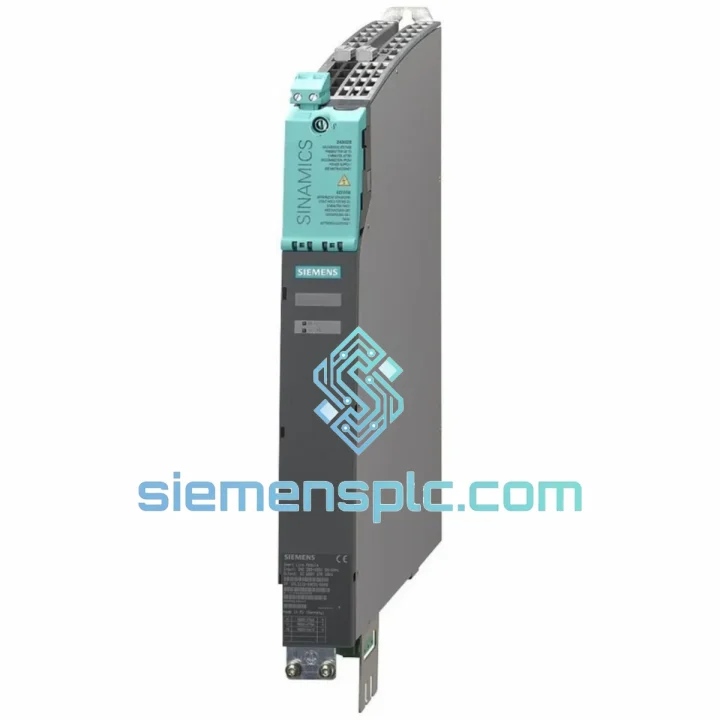

SIEMENS 6SL3130-6TE21-6AA4 Smart Line Module – SINAMICS S120

SIEMENS 6SL3130-6TE21-6AA4 Smart Line Module: Active Infeed Architecture for SINAMICS S120 Drive Systems

The 6SL3130-6TE21-6AA4 is a 16 kW Active Front-End (AFE) Smart Line Module within the SINAMICS S120 Booksize platform. Its primary function in a drive control loop is to regulate the DC bus voltage supplied to downstream Motor Modules while simultaneously managing bidirectional power flow between the AC supply grid and the drive system. Unlike passive Basic Line Modules, this unit employs a fully controlled IGBT bridge on the infeed side, enabling sinusoidal current draw from the supply and active return of regenerative energy during motor deceleration phases. In multi-axis systems sharing a common DC bus, this module acts as the sole power gateway — absorbing motoring demand from all connected axes and injecting recovered braking energy back to the grid rather than dissipating it as heat through braking resistors.

The module communicates with the SINAMICS S120 Control Unit (CU320-2 DP / CU320-2 PN) exclusively via DRIVE-CLiQ, Siemens’ proprietary serial topology bus. On power-up, the Control Unit performs automatic topology recognition, reads the module’s electronic nameplate (stored in its internal memory), and configures the infeed control parameters without manual parameterization of hardware addresses. This deterministic commissioning behavior is a key operational advantage in multi-drive cabinet builds.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The infeed stage of the 6SL3130-6TE21-6AA4 is built around a three-phase IGBT bridge operating in a voltage-source converter (VSC) topology. The gate driver circuits are isolated from the control logic via optocoupler barriers rated for reinforced insulation, providing a minimum 4 kV impulse withstand between the power and signal domains. This galvanic separation is not merely a safety measure — it also prevents high-frequency switching transients (dV/dt events at IGBT commutation, typically 5–10 kV/µs) from coupling into the DRIVE-CLiQ signal lines or the 24 V DC control supply rail.

DC bus voltage regulation is handled by a dedicated inner voltage control loop running at the module’s internal PWM cycle rate (typically 4 kHz or 8 kHz, selectable via parameter p0112). The outer current control loop enforces sinusoidal current draw from the AC supply by continuously computing the required modulation index based on measured grid voltage (via internal voltage sensing) and actual DC bus voltage feedback. The result is a supply current waveform with THD below 5% under rated load conditions — a figure that eliminates the need for passive harmonic filters in most industrial installations.

EMC performance is achieved through a combination of hardware and layout measures. The module’s internal PCB stack uses a dedicated ground plane layer to minimize common-mode impedance. The DC bus capacitor bank is physically distributed across multiple low-ESR film capacitors rather than a single bulk electrolytic, reducing high-frequency impedance on the bus and damping resonance between the infeed inductance and bus capacitance. For installations requiring compliance with IEC 61800-3 Category C2, an external line filter (e.g., 6SL3000-0BE21-6DA0) and line reactor must be installed upstream — the module’s internal design assumes these components are present and does not include internal EMC filtering beyond the capacitor bank.

The DRIVE-CLiQ interface implements a 100 Mbit/s full-duplex serial protocol over a proprietary physical layer. Each DRIVE-CLiQ port on the module contains an embedded electronic nameplate memory (EEPROM) storing the module’s order number, serial number, hardware revision, and rated electrical parameters. The Control Unit reads this data during topology scan and uses it to auto-populate the drive object configuration in STARTER or TIA Portal — eliminating manual entry of infeed module parameters and reducing commissioning errors in multi-module cabinets.

System Integration Benefits

• Bidirectional Power Flow with Grid Feedback: The AFE topology allows recovered braking energy to be returned to the AC supply at near-unity power factor, reducing net energy consumption by 20–35% in applications with frequent deceleration cycles (cranes, test benches, winding machines).
• Shared DC Bus Load Balancing: A single 6SL3130-6TE21-6AA4 can supply multiple Booksize Motor Modules on a common DC bus. Motoring and regenerating axes exchange energy directly on the bus without routing through the AC supply, improving system efficiency and reducing peak demand on the infeed.
• Deterministic Real-Time Response via DRIVE-CLiQ: The DRIVE-CLiQ topology provides cycle-synchronous data exchange between the Control Unit and the Smart Line Module, enabling the infeed control loop to respond to DC bus disturbances within a single PWM cycle — typically 125–250 µs depending on the configured sampling rate.
• Automatic Topology Recognition: On power-up, the Control Unit performs a DRIVE-CLiQ topology scan and auto-configures all connected modules. No manual DIP switch settings, address coding, or hardware parameterization is required for the infeed module itself.
• Integrated Diagnostic Transparency: The module continuously reports DC bus voltage, input current, module temperature, and fault status to the Control Unit via DRIVE-CLiQ. All diagnostic data is accessible in real time through STARTER, TIA Portal, or via PROFIBUS/PROFINET to the PLC — enabling predictive maintenance without additional instrumentation.
• Unity Power Factor Operation: Active front-end control maintains cos φ ≈ 1.0 across the full load range, eliminating reactive power penalties on industrial electricity tariffs and reducing transformer and cable sizing requirements in new installations.
• Scalable Infeed Architecture: Multiple Smart Line Modules can be operated in parallel on a common DC bus for higher power applications, with the Control Unit managing load sharing between infeed units. This modular scaling approach avoids the need for a single large transformer-fed rectifier unit.
• Reduced Panel Footprint vs. Passive Infeed: The elimination of braking resistors, passive harmonic filters, and power factor correction capacitors — all required with Basic Line Module configurations — results in a measurably smaller control cabinet volume and lower total installed cost for regenerative applications.

Quality Assurance & Global Logistics

Every 6SL3130-6TE21-6AA4 unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment verification process. Label authenticity, serial number format, and hardware revision markings are cross-referenced against SIEMENS factory documentation. Where test equipment is available, modules are powered on and DRIVE-CLiQ enumeration is verified before packaging. Units are packed in anti-static bags with desiccant sachets, surrounded by high-density foam inserts, and sealed in double-wall corrugated cartons rated for international air freight handling.

Shipping is handled via DHL Express, FedEx International Priority, or UPS Worldwide, with full tracking provided from dispatch. Standard lead time from order confirmation to dispatch is 3–7 business days. For urgent project requirements, same-day or next-day dispatch is available on confirmed stock. Sea freight consolidation is available for large-quantity orders. Export documentation including commercial invoice, packing list, and certificate of origin is provided as standard. HS Code 8537.10 applies for customs classification in most jurisdictions.

All units carry a 12-month warranty from the dispatch date covering manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed with a target response time of 2 business days. Replacement or credit options are available based on failure analysis outcome.
