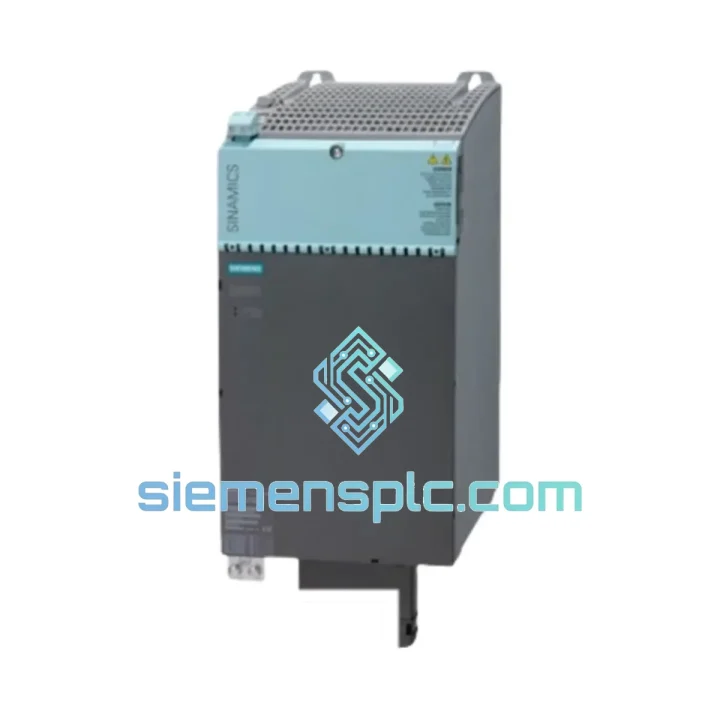

Siemens 6SL3130-6TE25-5AA3 Smart Line Module – SINAMICS S120

Siemens 6SL3130-6TE25-5AA3: 55 kW Four-Quadrant Line Supply Module for SINAMICS S120 Booksize Multi-Axis Architectures

The 6SL3130-6TE25-5AA3 is a 55 kW Smart Line Module (SLM) within the Siemens SINAMICS S120 booksize drive family. Its primary function is to establish and regulate a stable intermediate DC circuit voltage for all Motor Modules connected to a shared DC bus rail within a coordinated multi-axis servo system. The module operates as an Active Front End (AFE): its line-side stage is built around a three-phase IGBT bridge rather than a passive diode rectifier, enabling controlled bidirectional power transfer between the AC supply and the DC bus. During motoring phases, the bridge draws current from the three-phase supply and charges the DC bus to the regulated setpoint. During braking phases, kinetic energy recovered from decelerating motor loads is inverted back to the AC grid — a process that eliminates the need for braking resistors in the majority of industrial duty cycles and reduces cabinet heat dissipation accordingly.

Within a SINAMICS S120 booksize cabinet assembly, the 6SL3130-6TE25-5AA3 occupies the role of the central power supply node. Downstream Motor Modules — such as the 6SL3120-series single-axis or double-axis variants — draw from the DC bus rail that this module maintains. The voltage regulation loop inside the SLM executes a voltage-oriented control (VOC) algorithm synchronized to the DRIVE-CLiQ communication cycle of the connected Control Unit (CU320-2 DP or CU320-2 PN). This synchronization ensures that DC bus corrections triggered by sudden load steps on individual axes are applied within the same control cycle, preventing voltage sag from propagating across the shared bus and inducing torque disturbances on adjacent axes.

The DRIVE-CLiQ interface on this module carries both real-time process data and configuration data. On initial power-up, the Control Unit reads the module’s electronic nameplate from its onboard EEPROM — containing part number, serial number, hardware revision, and rated parameters — and automatically integrates the module into the drive object topology without manual parameter entry. This automatic topology recognition is a contractual requirement in many OEM machine tool and packaging machine builds, where commissioning repeatability across production batches must be documented and verified.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The line-side power stage of the 6SL3130-6TE25-5AA3 consists of six IGBTs arranged in a three-phase full-bridge configuration, each driven by an isolated gate driver circuit referenced to its own floating supply. The gate drive signals are generated by a dedicated DSP executing the VOC algorithm at a carrier frequency of 8 kHz. The DSP samples three-phase supply voltage via resistive dividers and line current via Hall-effect sensors at a rate synchronized to the PWM carrier, enabling space-vector modulation with sub-cycle current correction. The resulting line current waveform is sinusoidal with a THD below 5% when the recommended line reactor is installed — a figure that satisfies EN 61000-3-12 harmonic emission limits for supply currents up to 75 A without additional passive filtering.

DC Bus Capacitor Bank and Transient Response: The intermediate circuit capacitor bank is sized to limit DC bus voltage deviation to within ±5% of the regulated setpoint during a 0–100% rated load step on the Motor Module side. This specification is not arbitrary: a DC bus deviation exceeding ±5% at the Motor Module input will cause the module’s internal overvoltage or undervoltage monitor to trigger a fault response, interrupting the drive cycle. The capacitor bank also absorbs switching ripple from the IGBT bridge, preventing high-frequency voltage components from coupling into the DC bus rail and inducing current ripple in Motor Module output stages.

EMC Architecture: The PCB layout within the 6SL3130-6TE25-5AA3 implements a split ground plane strategy: the high-frequency switching domain (IGBT drivers, gate resistors, snubber networks) is physically separated from the DRIVE-CLiQ signal domain by a ground plane gap bridged only at a single star point. This prevents switching transients from coupling into the communication bus via common-impedance paths. Ferrite clamp cores are applied to DRIVE-CLiQ cable exits at the module boundary, attenuating common-mode noise injection above 1 MHz. The steel housing provides shielding effectiveness exceeding 40 dB at frequencies above 30 MHz, consistent with EN 61800-3 Category C2 conducted and radiated emission limits. Installations requiring Category C1 compliance must add an upstream 6SL3000-series EMC filter.

Thermal Protection Logic: IGBT junction temperature is monitored by NTC thermistors embedded in the power module substrate, read by the DSP via an internal I²C bus at 1 ms intervals. When junction temperature reaches the first threshold (typically 125°C), the firmware reduces switching frequency from 8 kHz to 4 kHz, halving switching losses and extending thermal headroom without triggering a fault. If temperature continues to rise to the second threshold, the module issues a pre-warning via DRIVE-CLiQ before initiating a controlled shutdown — giving the Control Unit time to execute a coordinated stop sequence across all axes rather than an uncontrolled coast-to-stop.

Inrush and Pre-charge Circuit: A dedicated pre-charge relay and resistor network limits capacitor bank inrush current to below 10 A during power-up. The IGBT bridge enable signal is hardware-interlocked to a DC bus voltage comparator: the bridge cannot switch until the DC bus reaches 90% of its regulated setpoint, ensuring that Motor Modules are never exposed to an unregulated or partially charged supply during the startup sequence.

System Integration Benefits

• Stable DC Bus Under Dynamic Load: The VOC regulation loop corrects DC bus deviations within a single 125 µs control cycle, preventing load-induced voltage transients on one axis from disturbing the torque output of adjacent axes — a measurable improvement in multi-axis contouring accuracy at the CNC interpolator level.
• Grid Energy Recovery: Braking energy from all connected Motor Modules is aggregated and returned to the AC supply through the AFE bridge. In a four-axis machining center with 25–35% regenerative duty, this eliminates 8–15 kW of continuous heat dissipation from the cabinet, reducing cooling infrastructure sizing and extending capacitor and fan service intervals.
• Automatic Drive Object Commissioning: DRIVE-CLiQ electronic nameplate data eliminates manual parameter entry during initial commissioning and module replacement. The Control Unit reconstructs the complete drive topology from EEPROM data on every power-up, ensuring parameter consistency across production batches and after field replacements.
• Scalable Shared DC Bus Architecture: The 55 kW supply rating represents the aggregate motoring power ceiling for all Motor Modules on the shared rail. Individual axis peak current demands are handled by each Motor Module’s local current controller, decoupling axis-level dynamics from the supply regulation loop and allowing axis count to be scaled without modifying the SLM parameterization.
• Reactive Power Elimination: The AFE topology draws current at a displacement power factor exceeding 0.98, removing reactive power demand from the facility supply. This eliminates reactive power tariff penalties on industrial electricity contracts and satisfies utility interconnection requirements without external power factor correction capacitors.
• Real-time Diagnostic Transparency: DC bus voltage, three-phase input current, IGBT junction temperature, fan status, and all fault/warning states are transmitted over DRIVE-CLiQ to the Control Unit and are accessible in STARTER, Startdrive, and SIMATIC HMI panels without additional instrumentation. Mean time to diagnose a supply-side fault is reduced from hours to minutes.
• Remote Firmware Management: The module’s internal firmware is managed by the Control Unit and can be updated via DRIVE-CLiQ without physical access to the module — a significant operational advantage in sealed cabinet installations or remote machine deployments where physical access is restricted.
• Harmonic Compliance Without Dedicated Filter: When paired with a 6SL3000-series line reactor at 2–4% impedance, the AFE switching pattern reduces supply current THD to below 5%, meeting EN 61000-3-12 Class A limits for supply currents up to 75 A. This eliminates the cost, panel space, and wiring complexity of a dedicated harmonic filter in the majority of industrial installation scenarios.

Quality Assurance & Global Logistics

All 6SL3130-6TE25-5AA3 units shipped from our Xiamen, China operations center are procured through documented Siemens authorized distribution channels. Each unit carries an intact factory label bearing a traceable serial number verifiable against Siemens’ product authentication system. Prior to dispatch, our technical team conducts a structured incoming inspection covering label and hologram integrity, DRIVE-CLiQ port pin geometry, housing seal condition, and connector locking mechanism function. Any unit exhibiting evidence of prior installation, field repair, or label alteration is quarantined and removed from inventory.

Packaging is engineered to IEC 60068-2-27 shock and IEC 60068-2-64 random vibration handling criteria. Each module is sealed in a conductive anti-static polyethylene bag, cushioned within 50 mm closed-cell polyethylene foam inserts, and enclosed in a double-wall corrugated carton rated at 32 ECT. Air freight shipments receive an additional moisture-barrier film wrap. International dispatch is via DHL Express, FedEx International Priority, or UPS Worldwide Expedited, with full end-to-end tracking provided from collection to delivery confirmation. Consolidated sea freight is available for orders of 10 or more units.

A 12-month warranty covers all units against manufacturing defects and functional failure under normal operating conditions as defined in the Siemens product specification. Warranty claims are acknowledged within 2 business days and resolved within 5 business days of defective unit receipt, with replacement unit dispatch or credit note issued upon defect confirmation. Pre-sales technical support — including S120 topology compatibility verification, firmware version matching, line reactor and EMC filter sizing, and cabinet layout review — is provided at no charge by our engineering team.
