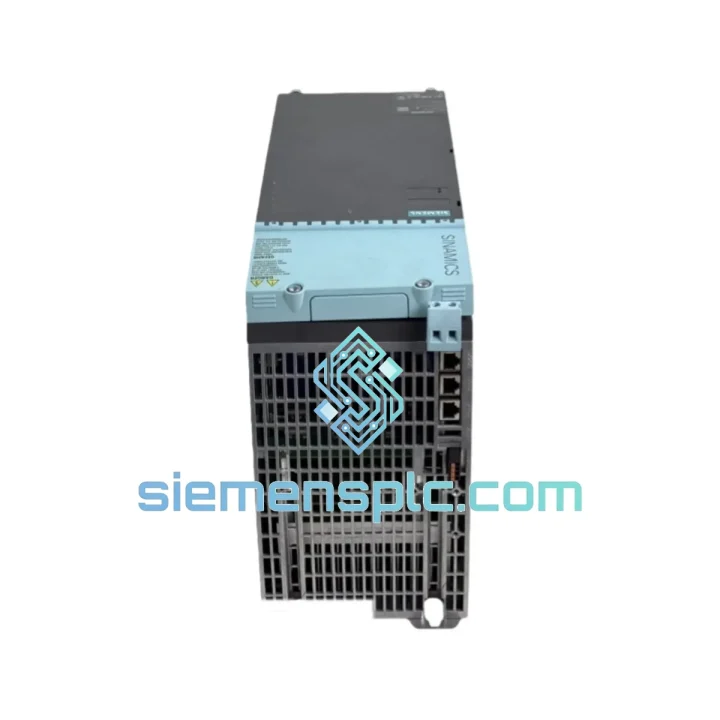

Siemens 6SL3130-7TE23-6AA3 Active Line Module

6SL3130-7TE23-6AA3 Down? Every Minute of Downtime Costs You Money — Ship Today from Xiamen

Your SINAMICS S120 drive line just tripped. The Active Line Module is dead. The production line is cold. You’ve already called your local distributor — lead time is 6 weeks. That’s not an option.

We stock the Siemens 6SL3130-7TE23-6AA3 — the 36 kW Booksize Active Line Module for SINAMICS S120 — and we ship same-day from Xiamen via DHL Express. Most customers in Southeast Asia, the Middle East, and Europe receive their unit within 3–5 business days. No waiting. No production loss. No excuses.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After 10 years of field work on SINAMICS S120 systems, these are the failure patterns I see most often with the 6SL3130-7TE23-6AA3 — and what you need to nail before you power back up.

Common Fault Codes on the Outgoing Unit:

• F30001 / F30002 — DC link overvoltage or undervoltage. Often caused by a failing ALM that can no longer regulate the DC bus. If your Motor Modules are throwing these faults and the ALM is warm to the touch, the ALM is the prime suspect.
• F30021 — Ground fault detected. Check the line filter and cable insulation before condemning the ALM — but if the filter checks out, the ALM’s internal IGBT bridge is likely compromised.
• F07011 / A07012 — Line supply fault. Verify incoming 3-phase voltage symmetry first. If phases are balanced and the fault persists, the ALM’s line voltage sensing circuit has failed.
• F30052 — DRIVE-CLiQ communication error. Can indicate a failing ALM processor board or a damaged DRIVE-CLiQ cable. Swap the cable first; if the fault follows the ALM, replace the module.

Replacement Checklist — Do Not Skip These Steps:

• ✔ Discharge the DC bus fully before touching any connections. Measure with a calibrated meter — do not trust the LED indicator alone. Wait at least 5 minutes after power-off.
• ✔ Record all parameters from the outgoing ALM via STARTER or TIA Portal Startdrive before removal. Export the drive project file. The replacement unit will need parameter download.
• ✔ DRIVE-CLiQ auto-topology detection: The 6SL3130-7TE23-6AA3 supports automatic component identification via DRIVE-CLiQ. On first power-up with the new module, the Control Unit (CU320-2) will detect the new ALM and prompt for topology acceptance — confirm this in STARTER/Startdrive before running.
• ✔ Firmware matching: Verify the firmware version on the replacement ALM is compatible with your CU320-2 firmware. Mismatched firmware versions cause F01018 faults. Use STARTER to check and update if necessary. Siemens recommends all components in a drive line run the same firmware baseline.
• ✔ Line filter re-connection: The 6SL3000-0BE23-6DA0 line filter is rated for this ALM. Inspect the filter capacitors for bulging or leakage — a failed filter is often the root cause of ALM failure and will kill a new module within weeks if not replaced.
• ✔ Line reactor check: Verify the 6SL3000-0CE23-6AA0 line reactor inductance is within spec. A shorted reactor winding causes asymmetric current draw that stresses the ALM’s rectifier bridge.
• ✔ First power-up sequence: Apply 24 V DC control supply first. Confirm DRIVE-CLiQ communication is established and no faults are present before enabling the main AC contactor. Do not energize the AC line with an unacknowledged fault active.

Reliability in Harsh Conditions

The 6SL3130-7TE23-6AA3 is not a lab instrument — it was engineered for the factory floor. Siemens designed the SINAMICS S120 Booksize platform to operate continuously in environments that would destroy lesser hardware.

The module’s forced-air cooling system maintains internal component temperatures within safe limits at ambient temperatures up to 40°C (derating applies above 40°C up to 55°C maximum). The integrated fan is monitored by the control system — fan failure triggers an alarm before thermal damage occurs, giving you time to respond rather than discovering the problem after a meltdown.

Vibration resistance meets IEC 60068-2-6 standards — the module handles the constant mechanical stress of presses, compressors, and heavy conveyor drives without connector fatigue or PCB cracking. The Booksize form factor’s rigid backplane mounting eliminates the resonance issues seen in chassis-mounted drives in high-vibration environments.

Humidity tolerance is rated to 95% relative humidity (non-condensing) per IEC 60068-2-78. The conformal coating on critical PCB assemblies provides additional protection against moisture ingress in foundry, food processing, and coastal installations. If your environment sees condensation cycles, install the cabinet anti-condensation heater — this is a system-level requirement, not a module deficiency.

The IP20 rating means the module is designed for installation inside a properly sealed control cabinet. The cabinet is your first line of defense against dust, coolant mist, and conductive particles. Maintain positive cabinet pressure with filtered air supply in dirty environments — this single measure extends ALM service life dramatically.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to international air freight terminals. This is not a drop-ship operation. Stock is physically on our shelves.

Standard Express Delivery Timeline (from order confirmation):

• Southeast Asia (Vietnam, Thailand, Malaysia, Indonesia, Philippines): 2–4 business days via DHL Express or FedEx International Priority
• Middle East (UAE, Saudi Arabia, Qatar, Kuwait): 3–5 business days via DHL Express
• Europe (Germany, Netherlands, Poland, Turkey, UK): 4–6 business days via FedEx International Priority or DHL Express
• South Asia (India, Pakistan, Bangladesh): 3–5 business days via DHL Express
• Americas (USA, Canada, Mexico, Brazil): 5–7 business days via FedEx International Priority
• Africa & Oceania: 5–8 business days depending on destination customs clearance speed

What’s included with every shipment:

• Commercial invoice with accurate HS code declaration (HS 8537.10 / 8504.40 as applicable)
• Packing list and weight/dimension certificate for customs
• DHL/FedEx tracking number provided within 4 hours of dispatch
• Anti-static packaging with foam cushioning — the module arrives in the same condition it left our warehouse
• Optional: Certificate of Origin (Form E for ASEAN preferential tariff, or standard CO for other regions)

For urgent orders placed before 14:00 CST, same-day dispatch is available. Contact us directly to confirm cut-off time for your region.
