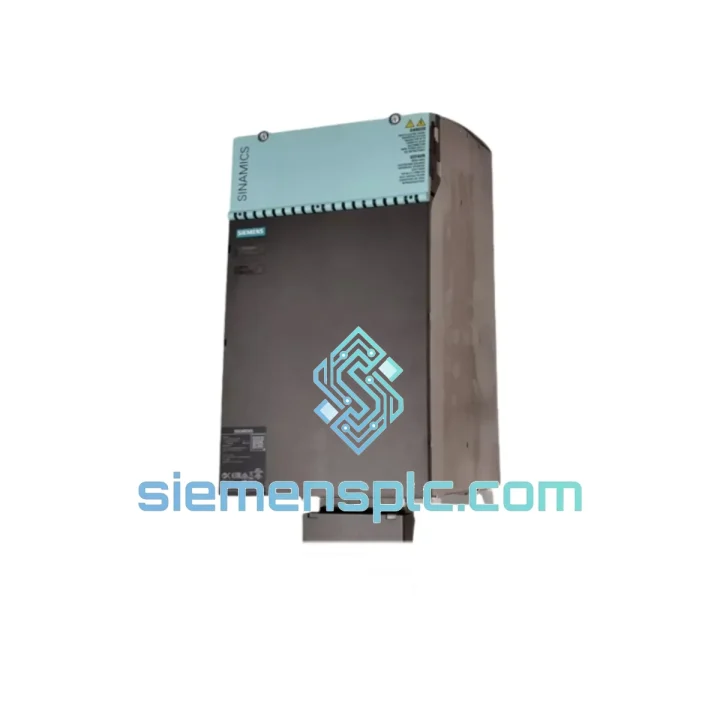

Siemens 6SL3130-7TE25-5AA3 — 55 kW Active Line Module in the SINAMICS S120 Booksize Platform

The 6SL3130-7TE25-5AA3 is a 55 kW Active Line Module (ALM) belonging to the Siemens SINAMICS S120 Booksize drive family. Its primary function within a multi-axis drive system is to condition three-phase AC supply power into a tightly regulated DC-link bus, while simultaneously enabling bidirectional power flow — returning regenerative braking energy from Motor Modules back to the utility grid. Unlike passive rectifier-based supply units, this module employs an IGBT-based active front-end topology that enforces near-sinusoidal line current waveforms, keeping total harmonic distortion (THD) below 5% under rated load conditions. This characteristic eliminates the need for bulky line reactors or passive harmonic filters in the majority of industrial panel installations, reducing both cabinet volume and commissioning complexity.

Within a SINAMICS S120 Booksize cabinet, the 6SL3130-7TE25-5AA3 occupies the supply-side position on the shared DC bus rail. It interfaces with the Control Unit (CU320-2 DP or CU320-2 PN) via a DRIVE-CLiQ daisy-chain, transmitting real-time status data — DC-link voltage, input current, thermal state, and fault codes — at the 125 µs isochronous cycle rate of the DRIVE-CLiQ protocol. This deterministic data exchange allows the CU320-2 to execute coordinated pre-charge sequencing, inrush current limiting, and dynamic DC-link voltage regulation without any additional fieldbus overhead.

The module is rated for continuous operation on 3-phase AC supplies from 380 V to 480 V (±10%), covering both 400 V European and 460 V North American industrial standards within a single hardware variant. The regulated DC-link output sits at approximately 600–750 V DC depending on supply voltage, providing the downstream Motor Modules with a stable power rail that is decoupled from supply voltage fluctuations of up to ±10%. This decoupling is particularly valuable in facilities with weak grid infrastructure or significant load-side switching transients.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6SL3130-7TE25-5AA3 implements a voltage-source active rectifier (VSR) architecture. The power stage consists of a three-phase IGBT bridge operating in PWM mode at a carrier frequency of 4 kHz (default), with gate drive circuits isolated from the control board via optocoupler barriers rated to withstand 4 kV impulse voltage. This galvanic isolation between the high-voltage power stage and the 24 V DC control domain is the primary EMC containment mechanism, preventing high-frequency switching noise from coupling into the DRIVE-CLiQ signal lines or the CU320-2 processor bus.

The DC-link capacitor bank integrated within the module provides a local energy buffer that absorbs short-duration load transients from Motor Modules without propagating voltage spikes back to the AC supply. The pre-charge circuit — a series resistor network switched by a bypass contactor — limits inrush current during power-up to a controlled ramp, protecting both the capacitor bank and the upstream supply infrastructure. The pre-charge sequence is managed autonomously by the module’s internal microcontroller and reported to the CU320-2 via DRIVE-CLiQ status words, allowing the control unit to gate Motor Module enable signals only after DC-link voltage has stabilised within the ±5% tolerance band.

EMC compliance at the system level is achieved through a combination of the active front-end harmonic suppression, the module’s internal common-mode choke on the AC input terminals, and the shielded DC bus bar connection to adjacent Motor Modules. The common-mode choke attenuates high-frequency leakage currents that would otherwise flow through protective earth conductors and generate conducted emissions exceeding IEC 61800-3 Category C2 limits. For installations requiring Category C1 compliance (residential proximity), an external line filter such as the 6SL3000-0BE25-5AA0 is added upstream.

Thermal management relies on a forced-air channel running vertically through the Booksize module body. The internal fan operates at a fixed speed controlled by the module’s thermal management firmware, which monitors IGBT junction temperature via NTC sensors embedded in the power module. If junction temperature approaches the 150 °C threshold, the firmware initiates a controlled output current derating before triggering a fault shutdown — a graduated response that avoids abrupt machine stops in production environments.

System Integration Benefits

• Deterministic DC-Bus Regulation: The active front-end control loop maintains DC-link voltage within ±2% of the setpoint during load steps up to 100% rated current, ensuring Motor Modules receive a stable power rail regardless of simultaneous axis acceleration events.
• Grid Regeneration with Measurable Energy Recovery: Four-quadrant operation returns deceleration energy to the AC supply. In high-cycle applications such as press transfer or robotic welding, net energy consumption reductions of 20–35% are achievable compared to resistive braking systems.
• Unity Power Factor Operation: The active rectifier maintains a displacement power factor of approximately 1.0, eliminating reactive power penalties on utility billing and reducing the required rating of upstream transformers and switchgear.
• Plug-and-Play DRIVE-CLiQ Topology: The module is automatically identified by the CU320-2 upon connection. Firmware version, serial number, and rated parameters are read from the module’s electronic nameplate (EEPROM), eliminating manual parameter entry during commissioning and replacement.
• Integrated Diagnostic Transparency: Over 40 real-time process data objects (PDOs) — including input phase voltages, DC-link voltage, input current per phase, IGBT temperatures, and fan status — are accessible via DRIVE-CLiQ and mappable to PROFIBUS/PROFINET PLC process images for SCADA integration.
• Scalable Multi-Axis Architecture: A single 6SL3130-7TE25-5AA3 can supply multiple Booksize Motor Modules sharing the common DC bus rail, with total connected Motor Module power limited by the 55 kW ALM rating. This shared-bus topology reduces the number of AC supply connections and simplifies cabinet wiring.
• Safe Torque Off (STO) Coordination: The module participates in the SINAMICS S120 integrated safety architecture. When STO is triggered on any Motor Module, the ALM continues to maintain DC-link voltage, allowing non-safety axes to remain operational — a critical capability in partial-stop safety functions per IEC 62061 SIL 2.
• TIA Portal / Startdrive Commissioning: Full parameter set upload, download, and comparison is supported within Startdrive V17 and TIA Portal V17+. Drive trace recording at 125 µs resolution enables precise fault analysis without external measurement equipment.

Quality Assurance & Global Logistics

Every unit of the 6SL3130-7TE25-5AA3 supplied by siemensplc.com is a genuine Siemens OEM component sourced through verified industrial supply channels. Each module carries a traceable serial number and date code that can be cross-referenced against Siemens production records. Prior to dispatch, units undergo a powered functional verification: DC-link pre-charge sequence, DRIVE-CLiQ enumeration, and input voltage measurement across all three phases are confirmed and logged.

Packaging follows ESD-safe protocols: the module is placed in an anti-static shielding bag with desiccant sachets, then secured in a double-wall corrugated carton with foam corner inserts rated to withstand 1.2 m drop impacts per ISTA 2A. This packaging standard ensures the module arrives at its destination in the same condition it left our Xiamen warehouse, regardless of transit duration or handling conditions.

Shipments originate from Xiamen, China, with access to major international freight forwarders and express courier networks including DHL Express, FedEx International Priority, and UPS Worldwide Expedited. Standard in-stock orders are dispatched within 1–2 business days. Export documentation — commercial invoice, packing list, and certificate of origin — is prepared to comply with customs requirements in the EU, North America, Southeast Asia, and the Middle East. HS Code 8504.40 applies to this product category for customs classification purposes. The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions as defined in the Siemens SINAMICS S120 hardware installation manual.
