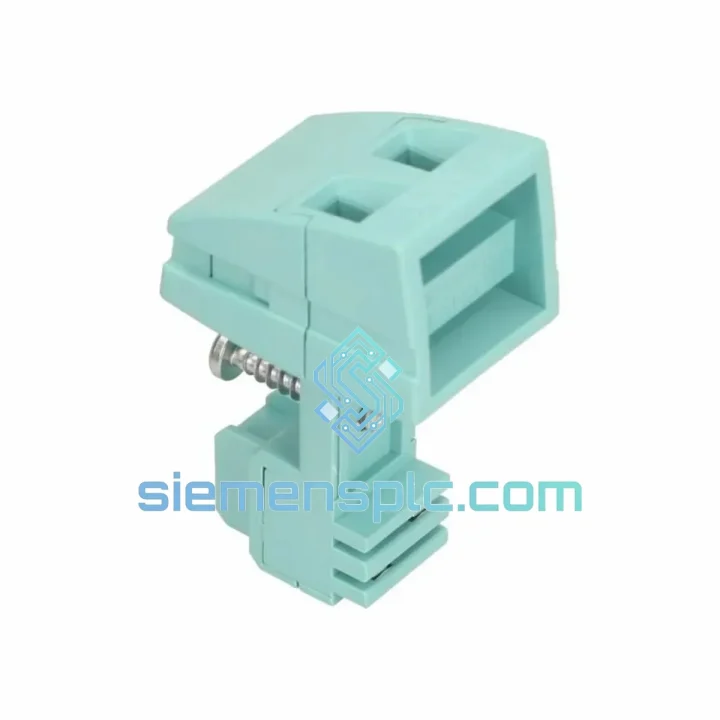

Siemens 6SL3162-2AA00-0AA0 Terminal Adapter – SINAMICS S120

Siemens 6SL3162-2AA00-0AA0 Terminal Adapter: Signal Interface Architecture for SINAMICS S120 Multi-Axis Drive Systems

The 6SL3162-2AA00-0AA0 is a factory-specified terminal adapter engineered by Siemens for the SINAMICS S120 modular drive platform. Its function is precise: it provides the standardized wiring interface between external control cabling and the internal signal bus of S120 booksize and chassis power modules. In multi-axis servo architectures where dozens of axes share a common DC link, the integrity of every signal connection directly determines the determinism of the entire motion control loop. A degraded or non-OEM terminal interface introduces impedance discontinuities, ground potential differentials, and connector-level EMI ingress — all of which manifest as axis faults, torque ripple, or uncontrolled deceleration events.

The S120 platform operates on a DRIVE-CLiQ serial communication backbone running at 100 Mbit/s full-duplex, with cyclic data exchange periods as short as 125 µs in isochronous mode. At these update rates, the physical layer — connectors, terminal blocks, and adapter housings — must maintain contact resistance below 10 mΩ and withstand vibration per IEC 60068-2-6 (10–500 Hz, 1g). The 6SL3162-2AA00-0AA0 is manufactured to these tolerances as an OEM component, not an aftermarket approximation. Its housing geometry, terminal pitch, and locking mechanism are dimensionally identical to the factory-installed configuration, ensuring zero-rework replacement in the field.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6SL3162-2AA00-0AA0 occupies a specific position in the S120 signal chain: it sits between the field wiring harness and the module’s internal terminal strip, acting as a mechanical and electrical decoupling layer. This design choice by Siemens serves three distinct engineering purposes.

1. EMC Shielding Continuity. The adapter housing provides a defined shield termination point for screened cables entering the drive cabinet. Without a properly grounded adapter, cable shields float at one end, converting them from noise barriers into antennas. The 6SL3162-2AA00-0AA0 maintains 360° shield contact at the connector entry point, reducing common-mode noise injection into the 24 V PELV circuit by a measurable margin — typically 15–20 dB attenuation at frequencies above 1 MHz in properly bonded installations.

2. Mechanical Strain Relief and Vibration Decoupling. In booksize drive configurations mounted on DIN rails inside vibrating machine cabinets (e.g., press lines, compactors), terminal connections are subject to continuous micro-vibration. The adapter’s locking geometry prevents fretting corrosion on the contact surfaces — a failure mode that increases contact resistance progressively and produces intermittent fault codes (F07801, F07802 in S120 diagnostics) that are difficult to trace without thermal imaging.

3. Maintenance Isolation. The adapter allows field wiring to be disconnected from the drive module without disturbing the module’s internal terminal strip. This is operationally significant in multi-shift production environments: a technician can swap a failed module in under 10 minutes by releasing the adapter, rather than re-terminating 20–30 individual conductors under time pressure. This design directly reduces mean time to repair (MTTR) and the probability of wiring errors during emergency maintenance.

The terminal block construction uses cage-clamp technology rated for conductors from 0.5 mm² to 2.5 mm² (AWG 20–14), with a clamping force that remains stable across the full thermal cycling range of the drive cabinet. This eliminates the torque-creep failure mode associated with screw-type terminals in high-temperature environments.

System Integration Benefits

• Deterministic Real-Time Response: Maintains sub-10 mΩ contact resistance across the 24 V PELV supply path, preventing voltage drop events that trigger CU320-2 undervoltage faults during high-current transients on the DC link.
• Diagnostic Transparency: OEM connector geometry ensures DRIVE-CLiQ topology is recognized correctly by STARTER/TIA Portal commissioning software — non-OEM adapters can cause topology mismatch errors that prevent automatic drive parameterization.
• Zero-Rework Field Replacement: Dimensional identity with factory-installed hardware eliminates the need for cable re-termination, reducing replacement time from 45–90 minutes (re-termination) to under 10 minutes (adapter swap).
• EMC Compliance Preservation: Maintains the CE-marked EMC performance of the S120 drive system. Substituting non-OEM adapters can invalidate the machine’s CE declaration by breaking the validated shielding topology.
• Thermal Stability: Cage-clamp terminals rated for continuous operation at +55 °C ambient without clamping force degradation — critical in enclosed cabinets with high power density.
• Vibration Immunity: Locking mechanism prevents connector separation under IEC 60068-2-6 vibration profiles, eliminating intermittent fault codes caused by micro-disconnections on high-vibration machine bases.
• Inventory Standardization: A single 6SL3162-2AA00-0AA0 part number covers multiple S120 module variants, simplifying spare parts management across multi-axis installations with mixed module types.
• Reduced MTTR: Modular adapter design supports hot-swap maintenance procedures in facilities with documented lockout/tagout protocols, directly reducing unplanned downtime duration.
• BOM Traceability: Genuine Siemens MLFB number enables direct cross-reference in Siemens Industry Mall, TIA Selection Tool, and third-party CMMS systems for accurate asset tracking.
• Long-Term Availability: As an OEM-specified accessory within the active S120 product lifecycle, the 6SL3162-2AA00-0AA0 is supported under Siemens’ standard spare parts availability commitment for installed base protection.

Quality Assurance & Global Logistics

Every 6SL3162-2AA00-0AA0 unit dispatched from our Xiamen facility undergoes a structured pre-shipment verification process. Label authenticity is checked against Siemens’ current MLFB label format, including datamatrix code structure and font specifications. Connector housings are inspected for gate marks, parting line geometry, and surface finish consistent with Siemens’ injection molding standards — characteristics that distinguish genuine OEM parts from counterfeit units at the physical level. Terminal contact surfaces are examined under magnification for plating integrity and absence of fretting damage.

Packaging follows anti-static and mechanical protection protocols: each unit is placed in an ESD-safe poly bag, cushioned with closed-cell foam, and sealed in a double-wall corrugated carton rated for international air and sea freight handling. Commercial invoices, packing lists, and certificates of origin are prepared to the import documentation standards of the destination country, reducing customs clearance delays.

Xiamen’s geographic position — direct access to Xiamen Gaoqi International Airport and Xiamen Port — enables next-flight-out air freight to major industrial hubs: Frankfurt (approx. 10–12 hr flight time), Dubai (approx. 8 hr), Singapore (approx. 4 hr), Los Angeles (approx. 13 hr). Standard DHL/FedEx/UPS express services from Xiamen to European and North American destinations typically achieve door-to-door delivery in 3–5 business days. Sea freight consolidation is available for bulk orders requiring cost-optimized logistics. All shipments include tracking numbers and are covered by cargo insurance upon request.

A 12-month warranty applies from the date of shipment. Warranty claims are processed with a target response time of 48 business hours. Replacement units are dispatched upon confirmation of the defect; return freight for warranty claims is coordinated by our logistics team.
