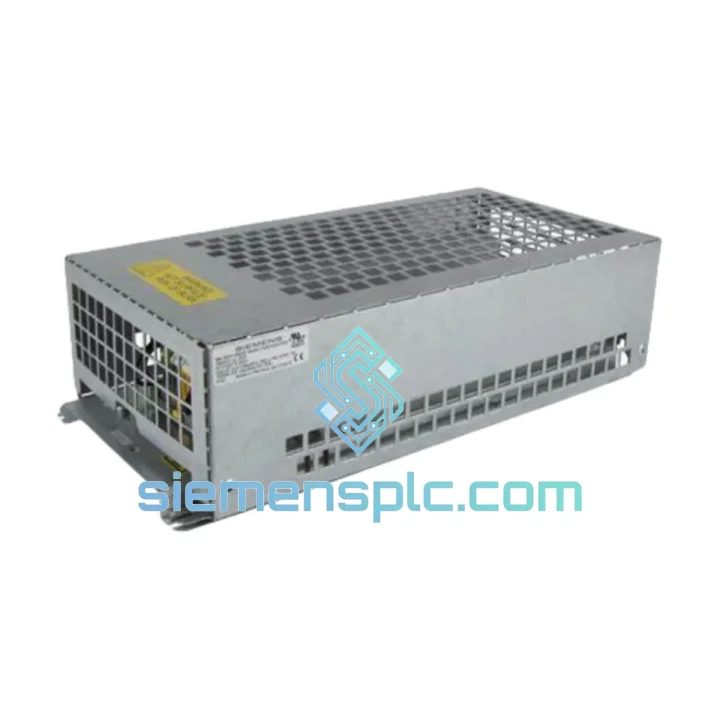

Siemens 6SL3201-0BE21-8AA0 Smart Line Module

6SL3201-0BE21-8AA0 — Every Hour of Downtime Costs You Money. We Ship Today.

Your SINAMICS S120 Booksize drive line is down. The Smart Line Module has faulted, the DC bus is dead, and production is at a standstill. You’ve already pulled the diagnostics — F30001, F30002, or a persistent DC bus undervoltage alarm that won’t clear no matter how many times you reset. You know the module is gone. What you need now is a verified replacement, on a truck, today.

The Siemens 6SL3201-0BE21-8AA0 is the 18 A Smart Line Module (SLM) for the SINAMICS S120 Booksize platform. It handles regenerative energy feedback to the supply grid, maintains the shared DC bus for all downstream Motor Modules, and communicates with the Control Unit via DRIVE-CLiQ. When this module fails, every axis in the drive group goes with it. We stock it in Xiamen and can have it moving within hours of order confirmation.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common fault codes that point to a failed 6SL3201-0BE21-8AA0:

• F30001 / F30002 — Power unit: overcurrent or hardware fault. If this persists after a clean power cycle with no load connected, the SLM itself is the source, not the Motor Modules downstream.
• F06000 / A06000 — DC bus undervoltage. The SLM is not charging the bus to the expected level. Check input fuses first (3NE series). If fuses are intact and input voltage is confirmed good, the SLM pre-charge circuit or IGBT section has failed.
• F07900 — DRIVE-CLiQ communication fault. Can indicate a failed SLM DRIVE-CLiQ port or internal processor fault. Swap the CLiQ cable first; if the fault follows the module, the SLM is defective.
• A01900 / F01900 — Component not found on DRIVE-CLiQ topology. The Control Unit cannot detect the SLM at startup. Confirms the module is electrically dead or the CLiQ interface has failed.

Step-by-step replacement procedure:

1. Isolate and lock out. Open the main circuit breaker upstream of the drive cabinet. Verify DC bus voltage has discharged below 50 V DC using a calibrated meter — the bus capacitors in an S120 system hold lethal charge for several minutes after power-off. Do not skip this step.
2. Document the DRIVE-CLiQ topology. Before disconnecting anything, photograph or export the topology from STARTER or Startdrive. The CU stores the expected topology; a mismatch after replacement will generate F01900 and prevent startup.
3. Disconnect in order. Remove the DRIVE-CLiQ cables first (label them — X100, X101), then the DC bus bar connectors, then the AC input terminals (U1, V1, W1), then the PE conductor. Finally, remove the mounting screws and slide the module out of the rail.
4. Check the DIP switches on the new unit. The 6SL3201-0BE21-8AA0 does not have address DIP switches — addressing is handled automatically via DRIVE-CLiQ. However, verify the module’s firmware version label. If your system runs firmware below V4.7, a firmware update via STARTER is required before the new SLM will be accepted.
5. Install and reconnect in reverse order. Torque the DC bus bar bolts to the specified value (refer to the S120 Booksize Installation Manual, document A5E03264273). Under-torqued bus connections cause intermittent faults under load.
6. Power up and accept topology. On first power-up with a new SLM, the CU320-2 will detect a topology change and prompt you to accept the new component. Confirm in STARTER or via the BOP20 operator panel. The SLM will self-commission its DRIVE-CLiQ identity automatically — no manual address setting required.
7. Verify pre-charge sequence. Watch the DC bus voltage ramp during startup. It should reach nominal bus voltage within 2–3 seconds. A slow or incomplete pre-charge indicates a wiring issue or a mismatch between the SLM rating and the connected Motor Module total power demand.
8. Run a no-load test. Enable the drive in speed control with no mechanical load. Confirm no faults for at least 5 minutes before reconnecting the machine.

Configuration notes specific to this module: The SLM does not require manual parameterization of its own power data — the DRIVE-CLiQ interface transmits the module’s electronic nameplate to the Control Unit automatically. However, if you are replacing an SLM that was previously configured with a specific line filter assignment (p0220), verify this parameter is correctly set in the CU after replacement. Incorrect line filter settings can cause harmonic-related faults on sensitive supply networks.

Reliability in Harsh Conditions

The 6SL3201-0BE21-8AA0 is built to operate in environments that would kill consumer-grade electronics. The internal power stage uses Siemens-qualified IGBTs with gate driver circuits designed for continuous switching at industrial duty cycles. The forced-air cooling system is engineered to maintain junction temperatures within safe limits at ambient temperatures up to 40 °C continuous, with derating curves that allow operation up to 55 °C for installations where cabinet cooling is marginal.

The DC bus capacitor bank is rated for the voltage transients common in industrial supply networks — voltage spikes from neighboring heavy machinery, capacitor bank switching, and generator transfer events. The pre-charge circuit limits inrush current on every power-up cycle, protecting both the module and the upstream supply infrastructure from stress.

Vibration resistance meets the requirements of EN 60068-2-6 (sinusoidal) and EN 60068-2-27 (shock), making this module suitable for installation in mobile equipment, ship-mounted machinery, and press-line environments where mechanical shock is a daily reality. The conformal-coated PCBs inside the module provide a baseline level of protection against condensation and airborne contaminants — a critical factor in food processing, chemical, and coastal industrial environments where humidity and corrosive atmospheres are unavoidable.

Every unit we ship has been stored in a climate-controlled warehouse. We do not stock modules in uncontrolled environments. Capacitor degradation from improper storage is a real failure mode in the secondary market — it is why we maintain strict inventory rotation and will not ship units that have been sitting on a shelf for years without verification.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateway facilities. This is not a drop-ship arrangement. We physically hold stock, pack orders in-house, and hand them to the carrier the same day for orders confirmed before 15:00 CST.

Typical transit times from Xiamen:

• Southeast Asia (SG, MY, TH, VN, ID): DHL Express 1–2 business days
• East Asia (JP, KR, TW): FedEx International Priority 1–2 business days
• South Asia (IN, PK, BD): DHL Express 2–3 business days
• Middle East (AE, SA, QA): FedEx / DHL 2–3 business days
• Europe (DE, FR, IT, PL, NL): DHL Express 3–4 business days
• North America (US, CA, MX): FedEx International Priority 3–5 business days
• Australia / New Zealand: DHL Express 3–4 business days

Every shipment includes a commercial invoice with accurate HS Code 8504.40 classification, a packing list, and — where required — a certificate of origin. We handle export customs clearance from the China side. For destinations with import duty sensitivities, we can provide additional documentation to support your customs broker. Full tracking numbers are provided within 2 hours of dispatch.

For critical downtime situations, contact us directly via WhatsApp before placing an order. We can confirm stock availability, provide a proforma invoice, and coordinate same-day dispatch for wire transfers received before noon CST. We have shipped to active production facilities on six continents. Getting parts to you fast is not a marketing claim — it is the only reason customers come back.
