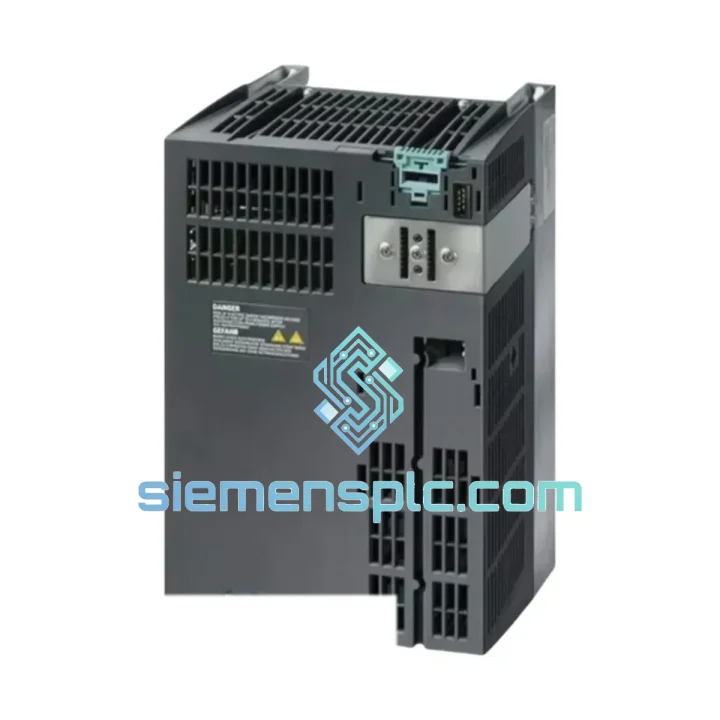

Siemens 6SL3225-0BE31-5AA0 Motor Module – SINAMICS S120

Siemens 6SL3225-0BE31-5AA0 — DC-Bus Single Motor Module in SINAMICS S120 Booksize Architecture

The 6SL3225-0BE31-5AA0 is a DC-link-fed Single Motor Module within the Siemens SINAMICS S120 Booksize drive family. Rated at 15 kW continuous output power with a nominal output current of 18 A, this module operates exclusively from a shared DC bus supplied by a compatible Line Module (Active Line Module or Smart Line Module from the 6SL3130 series). It does not accept AC mains input directly — a design choice that centralizes rectification, reduces harmonic injection per axis, and enables regenerative energy exchange between axes on the same DC rail.

In a multi-axis servo system, the 6SL3225-0BE31-5AA0 functions as the final power conversion stage for a single motor axis. It receives a stabilized DC bus voltage (nominally 600 V DC under standard 400 V AC supply conditions) and performs IGBT-based pulse-width modulation to synthesize a three-phase AC output with variable frequency and amplitude. The switching frequency is configurable — typically 4 kHz for high-power efficiency or up to 8 kHz for reduced torque ripple in precision servo applications — and directly governs the thermal derating profile of the module.

Communication with the Control Unit (CU320-2, CU310-2, or SIMOTION D) is handled exclusively via DRIVE-CLiQ, Siemens’ proprietary serial interface operating at 100 Mbit/s full-duplex. DRIVE-CLiQ carries both control data (setpoints, status words) and diagnostic data (temperature, DC link voltage, IGBT junction estimates) in a deterministic, time-stamped frame structure synchronized to the isochronous PROFIBUS/PROFINET cycle. This eliminates the need for separate encoder interface cards in most configurations when paired with DRIVE-CLiQ-capable motors (1FK7, 1FT7, 1PH8 series).

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6SL3225-0BE31-5AA0 employs a three-phase IGBT half-bridge topology with integrated gate driver circuits and desaturation detection per switch. Each IGBT leg incorporates a dedicated NTC thermistor whose resistance is sampled every 1 ms by the onboard DSP; if junction temperature exceeds the thermal model threshold, the module autonomously reduces switching frequency before issuing a fault — a graduated response that avoids abrupt shutdowns in production environments.

EMC Design: The module’s DC bus input incorporates a common-mode choke and Y-capacitor network to suppress high-frequency conducted emissions generated by IGBT switching transients. The chassis is bonded to PE through a low-impedance copper strap, and all signal cables within the module are routed orthogonally to power conductors to minimize inductive coupling. This design supports compliance with EN 61800-3 Category C2 without external EMC filters in most standard cabinet configurations.

Redundancy and Fault Arbitration: In SINAMICS S120 multi-axis topologies, the 6SL3225-0BE31-5AA0 participates in the system’s distributed safety arbitration via PROFIsafe or TM54F Safety Module. The module’s Safe Torque Off (STO) function — certified to SIL 2 / PLe — is implemented in dual-channel hardware: two independent gate-driver disable paths, each monitored by a separate watchdog circuit. Activation of STO does not require communication with the Control Unit, ensuring sub-10 ms response to safety events regardless of bus load.

DC Bus Capacitor Bank: An internal electrolytic capacitor bank buffers DC link voltage ripple and provides ride-through energy during brief supply interruptions (typically 20–30 ms at full load). The capacitor bank is dimensioned for a minimum 100,000-hour service life at 40 °C, consistent with the module’s rated operating conditions.

System Integration Benefits

• Deterministic isochronous operation: DRIVE-CLiQ synchronizes all Motor Modules to a common clock derived from the Control Unit, achieving cycle-to-cycle jitter below 1 µs — a prerequisite for coordinated multi-axis contouring in CNC and robotics applications.
• Plug-and-play motor identification: When connected to a DRIVE-CLiQ motor, the module reads motor nameplate data (rated current, pole pairs, encoder resolution) directly from the motor’s electronic nameplate, eliminating manual parameter entry and reducing commissioning errors.
• Transparent thermal diagnostics: Real-time IGBT junction temperature estimates and heatsink NTC readings are accessible via STARTER or TIA Portal without additional hardware, enabling predictive maintenance scheduling based on actual thermal load rather than fixed intervals.
• Scalable axis count: Multiple 6SL3225-0BE31-5AA0 modules share a single DC bus and a single Line Module, reducing cabinet footprint and wiring complexity compared to standalone drive architectures. The shared DC bus also allows regenerative energy from decelerating axes to be consumed by accelerating axes, reducing net energy draw from the supply.
• Integrated safe motion functions: STO (Safe Torque Off), SS1 (Safe Stop 1), and SBC (Safe Brake Control) are available without external safety relays when used with a TM54F or CU320-2 with integrated safety, reducing BOM cost and panel wiring.
• Firmware-level diagnostics: The module logs fault history with timestamps, axis-specific current waveform snapshots at fault occurrence, and DC link voltage at the moment of trip — data retrievable via STARTER trace function for root-cause analysis without oscilloscope access.
• Flexible motor compatibility: Non-DRIVE-CLiQ motors (third-party or legacy Siemens) are supported via SMC (Sensor Module Cabinet) adapters, preserving investment in existing motor assets while gaining full S120 diagnostic capability.
• TIA Portal integration: Full parameterization, axis configuration, and online monitoring are available within TIA Portal V15 and later, consolidating PLC, HMI, and drive engineering in a single software environment and reducing version management overhead.

Quality Assurance & Global Logistics

Every 6SL3225-0BE31-5AA0 unit dispatched from our Xiamen, China facility undergoes a structured incoming inspection protocol: serial number verification against Siemens’ product database, visual inspection of DRIVE-CLiQ port contacts and DC bus busbars, and a power-on functional test confirming DRIVE-CLiQ enumeration and self-diagnostic pass status. Units are stored in a temperature- and humidity-controlled warehouse (20–25 °C, 40–60% RH) to preserve electrolytic capacitor charge and prevent connector oxidation.

Packaging follows IEC 60068-2-27 shock and IEC 60068-2-64 vibration guidelines: each module is individually wrapped in anti-static PE foam, placed in a double-wall corrugated carton with corner protectors, and sealed with tamper-evident tape. Export documentation — commercial invoice, packing list, and certificate of origin — is prepared to DDP or DAP Incoterms as required, with HS Code 8504.40.9990 pre-declared for customs clearance efficiency.

Standard dispatch from Xiamen is within 1–3 business days for in-stock units. Air freight to major industrial hubs (Frankfurt, Chicago, Tokyo, Dubai) typically achieves door-to-door delivery in 5–8 business days. Sea freight consolidation is available for bulk orders. All shipments are covered by cargo insurance, and tracking numbers are provided within 24 hours of dispatch.
