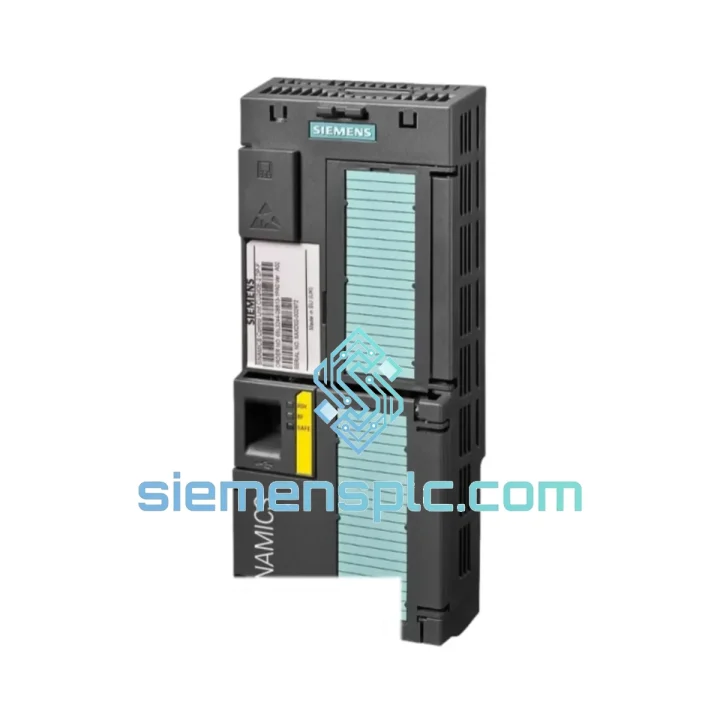

Siemens 6SL3244-0BB13-1PA1 SINAMICS S120 Power Module

6SL3244-0BB13-1PA1 Down — Every Minute Costs You Money. We Ship Today.

Your SINAMICS S120 axis just tripped. The line is stopped. Maintenance is on the phone. You already know the 6SL3244-0BB13-1PA1 is the culprit — now you need one on a truck before the shift ends. We stock this module in Xiamen and can have it moving via DHL Express within hours of order confirmation. No broker delays, no grey-market risk. Original Siemens, traceable batch, ready to drop into your drive line-up.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on S120 systems, these are the failure patterns and swap pitfalls that catch engineers off guard on this specific module:

Common Fault Codes on the 6SL3244-0BB13-1PA1:

• F30001 / F30002 — DC link overvoltage / undervoltage: Before condemning the Power Module, verify the Line Module (ALM/SLM) is healthy and the DC bus capacitors are not degraded. A failing BLM will kill a good PM every time.
• F30021 — Ground fault: Check motor cable insulation resistance to PE before installing the replacement. A shorted motor winding will destroy the new module within minutes of energization.
• F30035 — Overcurrent: Often caused by a seized bearing or mechanical jam on the driven axis. Clear the mechanical fault first. Swapping the PM without fixing the load is a waste of a module.
• A30920 — DRIVE-CLiQ communication fault: Inspect the DRIVE-CLiQ cable and connector on both the Control Unit and the PM. Corrosion or a bent pin here causes intermittent faults that look like a failing module but are not.

Step-by-Step Replacement Procedure:

• Step 1 — Safe isolation: Isolate the drive line-up at the main breaker. Verify DC bus voltage has discharged below 50 V DC before touching any terminals (use a calibrated meter — the LED indicators are not reliable after a fault).
• Step 2 — Document current parameters: Upload the full drive parameter set from the CU320-2 via STARTER or TIA Portal Startdrive before disconnecting anything. Save to a dated file. This is your recovery point.
• Step 3 — DRIVE-CLiQ topology note: The S120 system auto-detects the PM via DRIVE-CLiQ on power-up. When you install the new 6SL3244-0BB13-1PA1, the CU will recognize it and assign the drive object automatically — no manual address setting or DIP switch configuration is required on this module. However, confirm the firmware version on the new PM matches or is compatible with your CU firmware. Mismatched firmware versions generate F01018 on first boot.
• Step 4 — Motor cable reconnection: Torque all power terminals to spec (refer to the S120 hardware manual for terminal torque values). Loose U/V/W connections cause intermittent F30035 faults under load that are extremely difficult to diagnose remotely.
• Step 5 — First energization: Power up with the motor mechanically uncoupled if possible. Run a motor identification routine (p1910 = 1) to re-establish motor model data. This takes 2–3 minutes and eliminates parameter mismatch as a post-swap fault source.
• Step 6 — Load test: Run the axis through its full speed and torque range under controlled conditions before returning the machine to production. Log current and temperature for the first 30 minutes of operation.

Configuration Checklist Before Ordering:

• Confirm your Line Module type (ALM / SLM / BLM) — the 6SL3244-0BB13-1PA1 is compatible with all three but DC bus voltage must match
• Verify motor rated current ≤ 1.3 A continuous — if your motor pulls more, you need a higher-current PM variant
• Check CU firmware version — target PM firmware ≥ CU firmware to avoid F01018 on boot
• Confirm encoder type — DRIVE-CLiQ native motors connect directly; HTL/TTL/resolver motors require an SMC module

Reliability in Harsh Conditions

The SINAMICS S120 Power Module platform was engineered for continuous-duty industrial environments, not controlled lab conditions. The 6SL3244-0BB13-1PA1 is validated against the following stress profiles:

• Vibration: Tested to IEC 60068-2-6 sinusoidal vibration profiles. The internal PCB assemblies use conformal coating and mechanically secured connectors — critical in press, stamping, and compressor applications where structure-borne vibration is constant.
• Thermal cycling: Rated for 0–40 °C continuous with derating to 55 °C. The internal cooling fan is speed-controlled based on heatsink temperature, extending fan life compared to fixed-speed designs. In practice, modules in properly ventilated panels routinely exceed 10 years of service life.
• Humidity and condensation: IP20 enclosure with conformal-coated boards handles relative humidity up to 95% non-condensing. For environments with condensation risk (outdoor enclosures, coastal facilities), add an anti-condensation heater to the panel — the module itself does not carry an IP rating above 20.
• Altitude: Full rated output to 1000 m. Above 1000 m, derate output current by 1% per 100 m. At 2000 m, you are running at 90% rated current — factor this into your motor sizing if your plant is at elevation.
• EMC: Meets EN 61800-3 Category C2. Ensure proper PE bonding and shielded motor cables are terminated at both ends to maintain EMC compliance in CE-marked machinery.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian — one of China’s primary industrial export hubs with direct access to international freight lanes. Here is exactly how your order moves:

• Order confirmation → same-day dispatch: Orders confirmed before 14:00 CST ship the same business day. Orders after 14:00 ship next morning. No exceptions, no excuses — downtime doesn’t wait.
• Carrier selection: DHL Express and FedEx International Priority are our primary carriers for urgent shipments. Both offer door-to-door tracking and customs clearance in most destinations. We select the faster option for your region at time of booking.
• Transit times (typical):
  • Southeast Asia (SG, MY, TH, VN): 2–3 business days
  • Europe (DE, FR, IT, PL, NL): 3–5 business days
  • North America (US, CA, MX): 3–5 business days
  • Middle East (AE, SA, QA): 3–4 business days
  • South America (BR, CL, CO): 5–7 business days
• Export documentation: Commercial invoice, packing list, and certificate of origin are prepared for every shipment. HS code 853710 is pre-declared. For countries requiring additional import permits or SONCAP/PVOC certification, contact us before ordering so we can prepare the correct documentation set.
• Customs clearance: We declare accurate values and descriptions — no undervaluation, no misdeclaration. This protects your import compliance and avoids customs holds that defeat the purpose of express shipping.
• Tracking: AWB number sent via email within 2 hours of dispatch. Real-time tracking link provided. For critical shipments, our logistics team monitors the shipment and proactively contacts you if any delay is detected.

Contact Information

Production line down? Send us the fault code, your CU firmware version, and your delivery address. We will confirm stock, price, and shipping time within 30 minutes during business hours.

• Email: [email protected]
• WhatsApp: +86 18359268345
• Web: siemensplc.com
