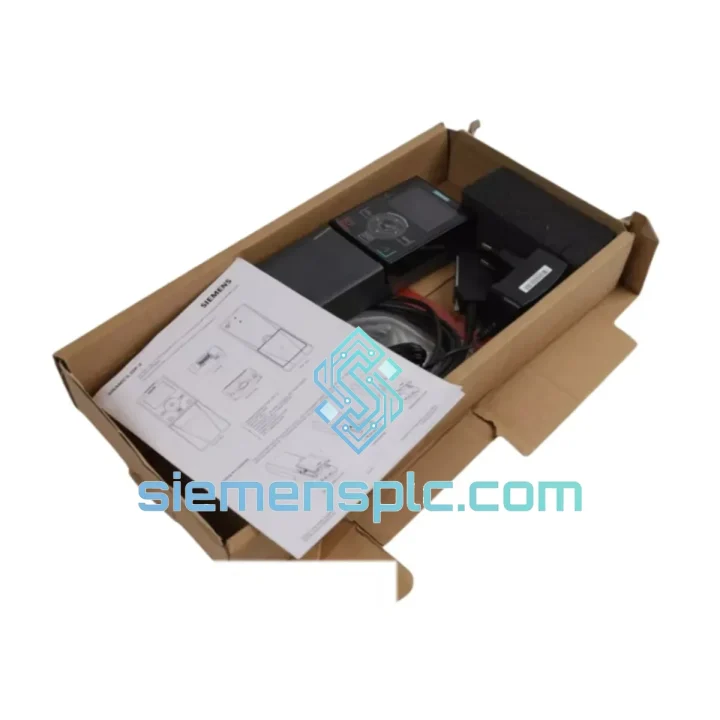

Siemens 6SL3255-0AA00-4HA1 Drive Accessory Module – SINAMICS S120

Siemens 6SL3255-0AA00-4HA1 Smart Access Module: Wireless Diagnostic Gateway for SINAMICS S120 Drive Systems

The 6SL3255-0AA00-4HA1 is a factory-original Smart Access Module (SAM) manufactured by Siemens AG for integration into the SINAMICS S120 multi-axis drive platform. Its primary function within a control loop is to provide a standards-compliant IEEE 802.11 b/g/n wireless bridge between the drive’s internal parameter server and any browser-capable mobile device — eliminating the need for a dedicated engineering PC, STARTER software, or PROFIBUS/PROFINET physical connection during commissioning and field diagnostics. In distributed machine architectures where the S120 Control Unit is mounted inside a sealed cabinet or elevated gantry, the SAM reduces mean-time-to-repair (MTTR) by granting technicians parameter read/write access from a safe working distance without interrupting the drive’s active control cycle.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6SL3255-0AA00-4HA1 interfaces with the SINAMICS S120 Control Unit through a dedicated option-board slot that exposes a parallel data bus clocked synchronously with the CU’s internal firmware cycle. This architecture ensures that parameter access via the SAM does not introduce latency jitter into the drive’s closed-loop torque or speed control — the wireless subsystem operates as a background task with strict priority subordination to the real-time kernel. The embedded WLAN chipset implements a hardware MAC layer with DMA-based frame transfer, keeping the CU’s main processor load contribution from the SAM below 2 % under sustained parameter polling.

From an EMC standpoint, the SAM’s PCB layout follows Siemens’ internal EMC design guideline SN 29500, with a dedicated ground plane separating the 2.4 GHz RF section from the 24 V DC power rail. A π-filter network on the supply input attenuates conducted emissions in the 150 kHz–30 MHz range, and the antenna trace is routed away from the backplane connector to minimize coupling with the drive’s PWM switching harmonics — which in a typical S120 Booksize configuration can reach 16 kHz fundamental with significant harmonic content up to 150 kHz. The module’s RF output power is limited to 20 dBm EIRP, compliant with ETSI EN 300 328, ensuring co-existence with other 2.4 GHz devices in dense factory environments.

The embedded HTTP server stores parameter data in a volatile RAM buffer that is refreshed at a configurable polling interval (default: 500 ms). Write operations to drive parameters are executed via a queued command mechanism: the SAM validates the parameter number against the CU’s object dictionary before issuing the write, preventing out-of-range values from reaching the drive’s non-volatile EEPROM. This two-stage validation — first at the SAM firmware level, then at the CU firmware level — provides a redundant guard against accidental parameter corruption during wireless commissioning sessions.

System Integration Benefits

• Zero-PC commissioning: Engineers can perform initial parameter upload, motor identification runs, and speed reference adjustments using a standard smartphone browser, reducing the tooling requirement for field service teams by eliminating STARTER/TIA Portal laptop dependency for routine tasks.
• Non-intrusive diagnostic access: Because the SAM operates on the option-slot bus rather than the PROFINET/PROFIBUS fieldbus, diagnostic reads do not consume fieldbus bandwidth or affect PLC cycle time — critical in deterministic motion control applications where cycle jitter must remain below 1 µs.
• Real-time fault transparency: The embedded web UI exposes the drive’s active fault buffer (r0945[0..7]) and alarm buffer (r2122[0..7]) in plain text with timestamp resolution to 1 ms, enabling rapid root-cause identification without connecting a laptop or interrupting production.
• Parameter backup and restore: The SAM supports parameter set download to the CU’s RAM and subsequent save-to-ROM command (p0971 = 1), providing a wireless path for parameter cloning across multiple identical drive axes — reducing multi-axis commissioning time proportionally to axis count.
• Secure access control: WPA2-PSK encryption with a configurable SSID and passphrase prevents unauthorized parameter access in shared factory floor environments. The module does not broadcast its SSID by default after initial setup, reducing RF visibility.
• Compatibility with TIA Portal ecosystem: While the SAM operates independently of TIA Portal, parameter changes made via the SAM are fully consistent with the drive’s object dictionary, ensuring that subsequent TIA Portal online sessions reflect the current drive state without synchronization conflicts.
• Reduced cabinet penetration: Wireless access eliminates the need to route additional RS232 or USB cables through cabinet gland plates for service access, preserving IP54/IP55 cabinet integrity and reducing the risk of cable-induced EMC ingress paths.
• Scalable across S120 topologies: A single SAM installed on the master CU in a multi-axis S120 configuration provides wireless access to all subordinate Motor Modules and their associated drive objects via the CU’s internal DRIVE-CLiQ topology — one module serves the entire drive line-up.

Quality Assurance & Global Logistics

Every 6SL3255-0AA00-4HA1 unit supplied by siemensplc.com is sourced as a genuine Siemens AG manufactured component. Each unit undergoes a structured incoming inspection protocol before dispatch:

• Label and hologram verification: The Siemens product label, 2D DataMatrix code, and anti-counterfeit hologram are cross-referenced against Siemens’ published label specifications for this part number family.
• Connector and housing inspection: The option-slot edge connector pin geometry and housing snap-fit tolerances are checked against OEM reference samples to confirm dimensional conformance.
• Power-on functional test: Where test fixtures are available, units are powered via a 24 V DC bench supply and the WLAN beacon frame is confirmed present using a spectrum analyzer or Wi-Fi scanner, verifying RF subsystem integrity.
• ESD-safe packaging: Units are individually sealed in anti-static PE bags (surface resistivity < 10¹¹ Ω/sq), placed in foam-lined cartons, and outer-packed with moisture-barrier desiccant for long-haul air freight.

Logistics operations are based in Xiamen, China — a major export hub with direct access to international express carriers. Standard dispatch lead time is 1–3 business days from order confirmation. Shipping options include DHL Express (3–5 business days to Europe/North America), FedEx International Priority, and UPS Worldwide Express. For bulk orders, consolidated sea-air freight via Xiamen Gaoqi International Airport or Xiamen Port is available with full export documentation: commercial invoice, packing list, certificate of origin (Form A or CO), and HS Code 8537.10 customs declaration support.
