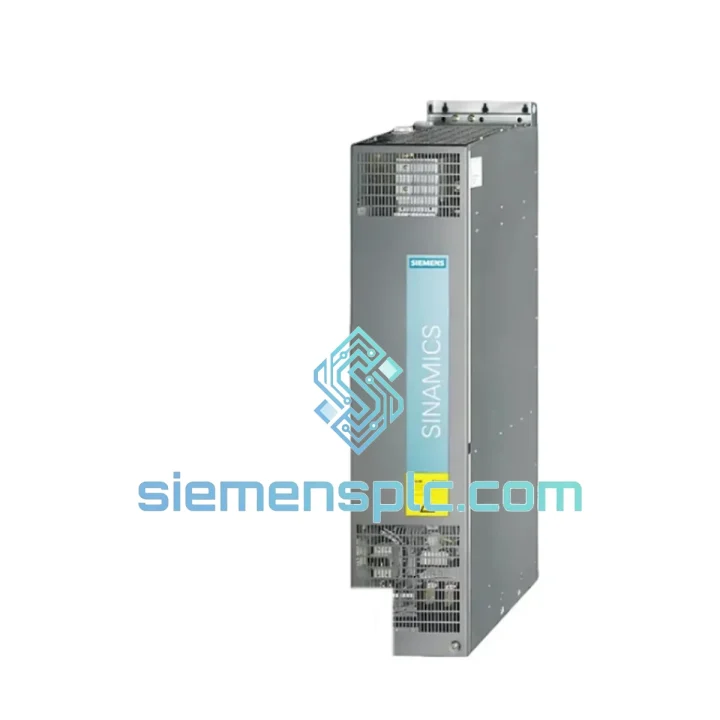

Siemens 6SL3351-1AE37-5BA1 Power Block – SINAMICS S120

Siemens 6SL3351-1AE37-5BA1 — Power Electronics Core of the SINAMICS S120 Booksize Drive Train

The 6SL3351-1AE37-5BA1 is the power electronics assembly — commonly designated as the Power Block — within the SINAMICS S120 booksize Motor Module architecture. In this design, Siemens separates the power stage from the control interface: the Power Block carries the IGBT inverter bridge, DC bus capacitor bank, gate driver circuitry, and thermal management hardware, while the Control Interface Module (CIM) handles DRIVE-CLiQ communication, encoder feedback, and closed-loop regulation. This modular split allows field replacement of the power stage without disturbing the control wiring or parameter set, a significant advantage in high-availability production environments where unplanned downtime carries measurable cost.

The 75 A continuous output rating positions this Power Block to serve medium-power servo and vector axes — spindle drives on machining centers, tension-controlled winding axes, servo presses, and multi-axis gantry systems where per-axis current demand falls in the 22–55 kW range at 400 V AC supply. The DC bus input is derived from a shared Line Module (Active, Smart, or Basic), and the Power Block operates across the resulting 540–720 V DC bus range without additional configuration. Gate drive timing, dead-time compensation, and short-circuit protection are handled internally by the IGBT driver stage, which communicates fault status upstream via the CIM’s DRIVE-CLiQ link to the Control Unit (CU320-2 DP/PN or CU310-2 series).

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The internal architecture of the 6SL3351-1AE37-5BA1 reflects Siemens’ design philosophy for high-cycle industrial servo applications, where thermal stability and fault transparency are non-negotiable.

IGBT Gate Driver Stage: The three-phase inverter bridge uses trench-gate IGBTs with integrated freewheeling diodes. The gate driver board implements active clamping to suppress collector-emitter voltage spikes (V_CE overshoot) during turn-off transients — a critical protection mechanism when operating at 75 A with inductive motor loads. Dead-time insertion is fixed at the hardware level, preventing shoot-through regardless of control software state.

DC Bus Capacitor Bank: The internal film capacitor bank serves two functions: it buffers the DC bus against high-frequency ripple generated by the PWM switching, and it provides a short-duration energy reservoir during regenerative braking transients before energy is returned to the shared bus. Capacitor aging is monitored indirectly through bus voltage ripple diagnostics accessible via STARTER or Startdrive commissioning tools.

Thermal Management: An integrated NTC thermistor array monitors heatsink temperature at multiple points. If junction temperature approaches the thermal derating threshold (typically 80 °C heatsink), the firmware reduces switching frequency automatically before triggering a fault — a graduated response that avoids abrupt shutdowns in continuous-duty applications. The forced-air cooling fan is speed-controlled based on thermal load, reducing acoustic output and fan wear during light-duty cycles.

EMC Design: The Power Block’s internal layout separates high-dV/dt switching nodes from the low-level signal traces of the gate driver feedback circuits using a ground plane partition strategy. The DC bus bars are arranged in a low-inductance laminated configuration to minimize parasitic inductance, which directly reduces the magnitude of switching transients and the resulting conducted emissions on the DC bus. This design supports compliance with EN 61800-3 Category C2 without external filtering in most standard cabinet installations.

Fault Detection and Reporting: Hardware-level overcurrent detection operates independently of the CIM’s DSP cycle. If phase current exceeds the hardware trip threshold (approximately 200% of rated current), the gate driver shuts off all IGBTs within 2–3 µs — faster than any software interrupt can respond. The fault event is latched and reported to the CIM via a dedicated hardware signal line, which then propagates the fault code upstream via DRIVE-CLiQ to the Control Unit within the next communication cycle (typically 125 µs or 250 µs isochronous cycle).

System Integration Benefits

• Modular field replacement: The Power Block separates from the CIM without disturbing encoder cables, DRIVE-CLiQ wiring, or motor terminals. Replacement time in a trained maintenance scenario is under 30 minutes, compared to full Motor Module swap which requires complete rewiring.
• Shared DC bus architecture: Operating on a common DC bus with other S120 Motor Modules enables energy exchange between braking and accelerating axes. In multi-axis systems, this reduces peak demand on the Line Module and lowers overall energy consumption — measurable in high-cycle applications such as press lines or pick-and-place systems.
• Isochronous PROFINET/PROFIBUS integration: Via the CU320-2 PN or CU320-2 DP Control Unit, the axis controlled by this Power Block participates in isochronous real-time (IRT) communication cycles as short as 125 µs, enabling deterministic position synchronization across multiple axes without application-layer jitter.
• STARTER and Startdrive commissioning: Full parameter access, drive wizard support, and trace/oscilloscope functions are available through Siemens’ commissioning tools. No third-party software is required for initial setup, fault diagnosis, or firmware update.
• Firmware version management: The hardware revision suffix (BA1) is tracked by SINAMICS firmware. Firmware packages are validated against hardware revision to prevent incompatible combinations, reducing the risk of field commissioning errors during software updates.
• Diagnostic transparency: Over 200 fault and alarm codes are accessible via the Control Unit’s diagnostic buffer, with timestamps referenced to the isochronous system clock. This enables post-event analysis of fault sequences without external data logging hardware.
• Scalable topology: The booksize form factor allows installation in standard 200 mm deep control cabinets. Multiple Motor Modules (each with their own Power Block) share a common DC bus bar set, simplifying cabinet layout and reducing wiring complexity compared to standalone drive architectures.
• Lifecycle support: The SINAMICS S120 platform carries a documented Siemens product lifecycle commitment. Spare parts, firmware updates, and engineering support are available through Siemens’ global service network, with the Power Block listed as a separately orderable spare part under the S120 spare parts catalog.

Quality Assurance & Global Logistics

Every unit of the 6SL3351-1AE37-5BA1 supplied by siemensplc.com is sourced as genuine Siemens original hardware. Authenticity verification includes label inspection against Siemens’ current part numbering and date code conventions, physical inspection of connector and housing condition, and where applicable, power-on functional verification prior to shipment.

Units are packed in anti-static bags with desiccant and humidity indicator cards, placed in foam-lined cartons rated for international air freight handling. Export documentation — commercial invoice, packing list, and Certificate of Conformity — is prepared for each shipment. HS Code 8537.10 is applied for customs classification. Shipments originate from our warehouse in Xiamen, China, with access to major international freight carriers including DHL Express, FedEx International Priority, and UPS Worldwide Expedited.

Typical transit times: 3–5 business days to Europe and North America via express air freight; 5–8 business days to Southeast Asia and the Middle East. For urgent requirements, same-day dispatch is available for orders confirmed before 14:00 CST. A 12-month warranty covers manufacturing defects and confirmed authenticity. Warranty claims are processed with a target response time of 48 hours from receipt of the returned unit.
