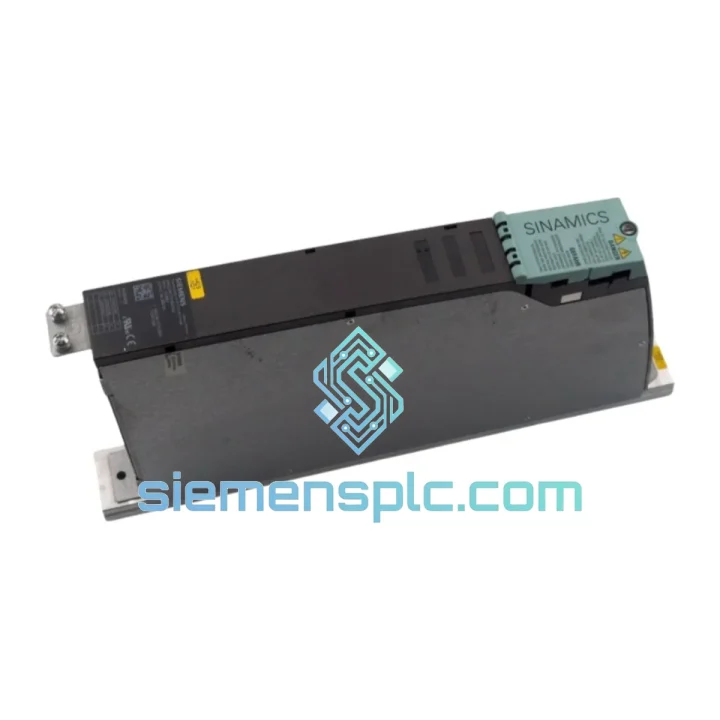

Siemens 6SL3352-3AE32-1AC0 Active Line Module

6SL3352-3AE32-1AC0 Active Line Module — Every Hour of Downtime Costs You Money. We Ship Today.

Your SINAMICS S120 drive cabinet is down. The DC bus is dead. Production is stopped. You’ve already traced the fault to the Active Line Module — and now you need a verified replacement unit on-site before the next shift. That’s exactly what we do. The Siemens 6SL3352-3AE32-1AC0 is in stock at our Xiamen warehouse. We process same-day and cut the paperwork fast. DHL Express to your dock in 3–5 business days, anywhere on the planet.

This is not a refurbished unit. Not a grey-market pull. Every 6SL3352-3AE32-1AC0 we ship is 100% original Siemens, sourced through verified industrial supply channels, inspected before dispatch, and packed in anti-static ESD-safe materials. When you’re staring at a halted line, you don’t have time for uncertainty — and we don’t give you any.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years on the floor taught me one thing: most ALM failures are not random. They follow a pattern. Here’s what to check before you condemn the module — and what to watch when you swap it in.

Common Fault Codes on the 6SL3352-3AE32-1AC0:

• F06000 / F06010 — DC bus overvoltage: Usually triggered by a failed pre-charge circuit or a shorted IGBT in the ALM. If the fault clears on power cycle but returns under load, the IGBT bridge is degrading. Replace the module — don’t wait for a hard failure.
• A06900 — Line supply asymmetry alarm: Check your incoming three-phase balance first. If phases are within 2% and the alarm persists, the ALM’s voltage sensing board is suspect.
• F30015 — Phase failure detected: Verify fuses on the line contactor upstream. If fuses are intact, the ALM’s internal current transformer may have failed. This is a module-level fault — swap required.
• F07801 — Motor overcurrent during ALM pre-charge: Often caused by a failed pre-charge resistor inside the ALM. The module will not reach operational DC bus voltage. Replacement is the only field fix.

Replacement Procedure — Field Checklist:

• De-energize the cabinet. Verify DC bus voltage is below 50 V with a calibrated meter before touching any terminals. The S120 DC bus holds charge for several minutes after power-off.
• Disconnect DRIVE-CLiQ cable first, then DC bus bars, then AC input terminals. Label everything — the ALM has separate PE, L1/L2/L3, and DC+ / DC- connections.
• The 6SL3352-3AE32-1AC0 uses automatic DRIVE-CLiQ topology recognition. On first power-up with the new module, the CU320-2 will detect the new component and may prompt a topology confirmation in STARTER or TIA Portal. Accept the new topology — do not skip this step or you will get persistent F01375 faults.
• Firmware matching: Check the existing CU320-2 firmware version. If the control unit runs firmware below V4.7, the replacement ALM may require a firmware downgrade or the system will report incompatibility. Use STARTER to verify firmware compatibility before commissioning.
• After installation, run the ALM identification routine (p3410 = 1) to let the module self-calibrate its current measurement. Skip this and your DC bus regulation will be off by 3–8%, causing nuisance trips under regenerative load.
• Verify the line reactor is still within spec. A degraded line reactor (6SL3000-0CE32-3AA0) will cause the new ALM to trip on F06010 within minutes of load application. Measure reactor inductance if in doubt.

Reliability in Harsh Conditions

The SINAMICS S120 Active Line Module was engineered for environments that would kill consumer-grade electronics in a week. The 6SL3352-3AE32-1AC0 is rated for continuous operation at ambient temperatures up to 40°C (with derating to 55°C), and it handles the kind of vibration, humidity, and electrical noise that comes standard in steel mills, paper plants, and offshore platforms.

The internal IGBT bridge uses Siemens’ proprietary gate driver design with active short-circuit protection — meaning a downstream fault won’t cascade into the ALM itself under normal conditions. The integrated EMC filter suppresses conducted emissions to Class C2 levels, protecting sensitive instrumentation in the same cabinet. The conformal-coated PCBs resist condensation and corrosive atmospheres, which matters when your cabinet is sitting 20 meters from a cooling tower or a chemical bath line.

Every unit we ship has been stored in climate-controlled conditions. We don’t pull modules from flooded warehouses or strip them from decommissioned machines. What you receive is a factory-fresh unit in original Siemens packaging, with the protective film still on the DRIVE-CLiQ ports.

Global Express Logistics

Our dispatch hub is in Xiamen, China — one of the most connected export ports in Asia. From the moment your order is confirmed, our logistics team begins the export documentation process in parallel with warehouse picking. We don’t wait for payment to clear before we start packing.

• Same-day dispatch for orders confirmed before 14:00 CST (Monday–Friday)
• DHL Express Worldwide: 3–5 business days to Europe, North America, Southeast Asia, and the Middle East
• FedEx International Priority: Available as an alternative carrier for destinations with DHL service restrictions
• Full export documentation: Commercial invoice, packing list, Certificate of Origin, and HS code declaration (HS: 8537.10) provided with every shipment
• Real-time tracking: AWB number sent within 2 hours of dispatch via email and WhatsApp
• Customs clearance support: We pre-declare all shipments with accurate HS codes and product descriptions to minimize customs holds. For EU imports, we can provide EORI-compatible documentation on request.
• Bulk orders: Sea freight via Xiamen port available for orders of 5+ units. Lead time 18–25 days to major ports. Contact us for FCL/LCL rates.

We’ve shipped to over 40 countries. We know which carriers work in which corridors, and we route accordingly. Your module doesn’t sit in a sorting hub for three days — it moves.
