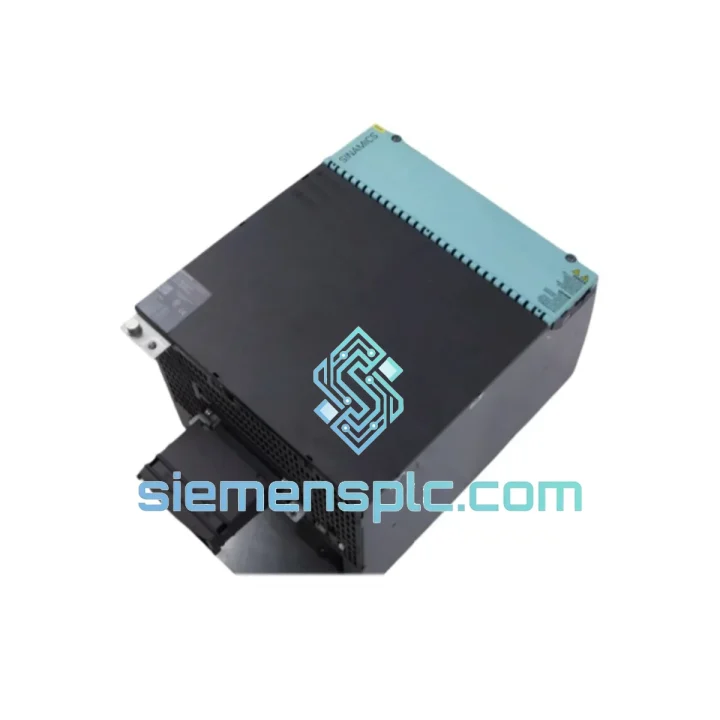

Siemens 6SL3352-3AG37-4AA0 Power Module – SINAMICS S120

Siemens 6SL3352-3AG37-4AA0 — DC-Link Power Distribution in High-Axis SINAMICS S120 Drive Architectures

The Siemens 6SL3352-3AG37-4AA0 is a Booksize Compact format Power Module within the SINAMICS S120 modular drive platform. Its primary function is to rectify incoming AC supply voltage into a stabilized DC-link bus, which is then distributed to downstream Single Motor Modules or Double Motor Modules within the same cabinet assembly. In centralized multi-axis configurations — common in automotive body-in-white lines, CNC machining centers, and high-speed packaging machinery — this power module acts as the energy backbone: all axis-level torque and speed control depends on the voltage and current integrity it maintains across the shared DC bus.

Unlike standalone inverter drives, the SINAMICS S120 architecture separates the rectification stage (handled by the Power Module) from the inversion stage (handled by Motor Modules). This separation allows engineers to size the infeed independently of individual axis ratings, enabling energy sharing between axes during regenerative braking events. When one axis decelerates and feeds energy back into the DC bus, another axis accelerating simultaneously can absorb that energy directly — reducing net grid draw and eliminating the need for braking resistors in many application profiles. The 6SL3352-3AG37-4AA0 supports this shared DC-link topology as a core architectural element.

The Booksize Compact form factor is engineered for high power density in constrained cabinet footprints. Modules in this format mount on a common mounting rail and connect via a DC busbar system, eliminating point-to-point DC cabling between power and motor modules. This busbar interconnect reduces resistive losses, simplifies cabinet assembly, and provides a mechanically robust connection that withstands the vibration loads typical of machine tool and press environments. The 6SL3352-3AG37-4AA0 integrates directly into this busbar architecture without adapter hardware.

DRIVE-CLiQ, Siemens’ proprietary serial communication interface, runs alongside the power path. The Power Module communicates its thermal status, DC-link voltage measurements, and fault states to the Control Unit (e.g., CU320-2 DP or CU320-2 PN) via DRIVE-CLiQ in real time. This data feeds into the SINAMICS S120 diagnostic engine, enabling the Control Unit to execute protective responses — such as reducing motor module output current or initiating a controlled stop sequence — before thermal or voltage thresholds cause hardware damage. The result is a self-monitoring power stage that reduces unplanned downtime compared to conventional drive architectures without integrated diagnostics.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6SL3352-3AG37-4AA0 employs an IGBT-based active front-end rectifier topology rather than a passive diode bridge. This distinction carries significant engineering consequences. A passive diode rectifier draws non-sinusoidal current from the supply network, generating low-order harmonics (5th, 7th, 11th) that degrade power quality and require upstream harmonic mitigation filters. The active front-end in the SINAMICS S120 Power Module uses pulse-width modulation on the input IGBT bridge to draw near-sinusoidal current at unity power factor, reducing total harmonic distortion (THD-I) to levels typically below 5 % under rated load conditions. This eliminates the need for dedicated harmonic filters in most industrial supply configurations and reduces reactive power demand on the facility transformer.

The DC-link capacitor bank within the module performs two functions: it filters switching ripple from the rectifier stage, and it provides a short-term energy reservoir that buffers transient load steps from the Motor Modules. During a rapid acceleration command on a downstream axis, the capacitor bank supplies the instantaneous current demand before the active front-end control loop can increase grid current draw. This decoupling prevents voltage sags on the DC bus that would otherwise cause undervoltage faults on other axes sharing the same bus segment.

EMC design in the Booksize Compact format addresses both conducted and radiated emissions. The module’s internal layout separates high-frequency switching nodes from the DRIVE-CLiQ signal traces using ground plane segmentation and localized decoupling capacitors at each IGBT gate driver. The DC busbar interconnect system uses a low-inductance laminated busbar structure, which limits the di/dt-induced voltage spikes during IGBT switching transitions. This reduces the stress on snubber components and extends the operational life of the power semiconductors under repetitive switching cycles at rated frequency.

Thermal management is handled by a monitored forced-air cooling system. An NTC thermistor mounted on the IGBT heatsink feeds temperature data to the module’s onboard microcontroller, which reports this value over DRIVE-CLiQ to the Control Unit. If heatsink temperature approaches the protection threshold (typically 80–85 °C depending on firmware configuration), the Control Unit can execute a current derating command to the Motor Modules before a hardware overtemperature trip occurs. This predictive thermal management strategy reduces nuisance trips in high-ambient installations such as foundry environments or summer operation in non-air-conditioned cabinets.

System Integration Benefits

• Shared DC-Bus Energy Recovery: Regenerative braking energy from decelerating axes is absorbed by accelerating axes on the same DC bus, reducing net energy consumption by 15–30 % in multi-axis motion profiles with overlapping acceleration/deceleration phases.
• Deterministic Fault Propagation: DRIVE-CLiQ transmits fault codes from the Power Module to the Control Unit within one communication cycle (typically 125 µs), enabling the CU320-2 to initiate a coordinated safe stop across all axes before secondary damage propagates.
• Scalable Axis Count: A single 6SL3352-3AG37-4AA0 can supply DC-link power to multiple Motor Modules in parallel, allowing engineers to expand axis count without replacing the infeed stage — provided total motor module power remains within the infeed rating.
• Reduced Cabinet Wiring Complexity: The DC busbar interconnect eliminates individual DC cabling between power and motor modules, reducing assembly time, potential wiring errors, and contact resistance variability across the DC distribution path.
• Unity Power Factor Operation: Active front-end rectification maintains near-unity displacement power factor across the load range, reducing reactive power charges on industrial electricity tariffs and avoiding power factor penalty clauses common in European and Asian utility contracts.
• Integrated Diagnostic Transparency: Voltage, current, temperature, and fault state data are continuously available to the SIMATIC S7 or TIA Portal environment via the Control Unit, enabling condition-based maintenance scheduling without external measurement instrumentation.
• Low Harmonic Distortion: THD-I below 5 % under rated conditions eliminates the need for passive harmonic filters (e.g., 5 % line reactors or 12-pulse transformer arrangements) in most standard industrial supply configurations, reducing BOM cost and panel space.
• Direct TIA Portal Integration: The module is fully parameterized and commissioned via STARTER or TIA Portal / Startdrive, with automatic component recognition via DRIVE-CLiQ topology detection — reducing commissioning time compared to manually parameterized drive systems.
• Firmware Upgrade Path: Siemens provides firmware updates for SINAMICS S120 components via STARTER/Startdrive, allowing the module to receive performance improvements and security patches without hardware replacement.
• Redundancy-Ready Architecture: In high-availability configurations, the SINAMICS S120 platform supports parallel infeed arrangements. The 6SL3352-3AG37-4AA0 can participate in redundant infeed topologies where a second Power Module takes over DC-link supply upon primary module fault detection.

Quality Assurance & Global Logistics

Every unit of the Siemens 6SL3352-3AG37-4AA0 supplied by siemensplc.com is sourced through verified procurement channels with full traceability documentation. Siemens manufactures SINAMICS S120 Power Modules under ISO 9001-certified production processes at its German facilities, and each unit carries Siemens’ factory quality markings, serial number, and firmware version label. We do not supply unmarked, relabeled, or counterfeit components — authenticity verification is available upon request for each shipment.

Pre-shipment inspection at our Xiamen, China facility includes visual examination of housing integrity, connector pin condition, label authenticity, and DRIVE-CLiQ port physical inspection. Units showing any sign of prior installation damage, connector wear, or label tampering are quarantined and excluded from shipment. A 12-month warranty against manufacturing defects applies to all units shipped, with replacement or credit resolution handled directly by siemensplc.com without requiring return to the original manufacturer.

Logistics from Xiamen are handled via DHL Express, FedEx International Priority, and sea freight consolidation depending on order volume and destination urgency. Export documentation — commercial invoice, packing list, certificate of origin, and HS code declaration (HS 8537.10 / 8504.40 as applicable) — is prepared for each shipment. For destinations requiring additional customs documentation (EUR.1, Form A, or country-specific certificates), these are arranged upon order confirmation. Typical international express transit times are 3–7 business days to Europe, 2–5 business days to Southeast Asia, and 5–10 business days to the Americas and Middle East. In-stock units are dispatched within 1–2 business days of payment confirmation.
