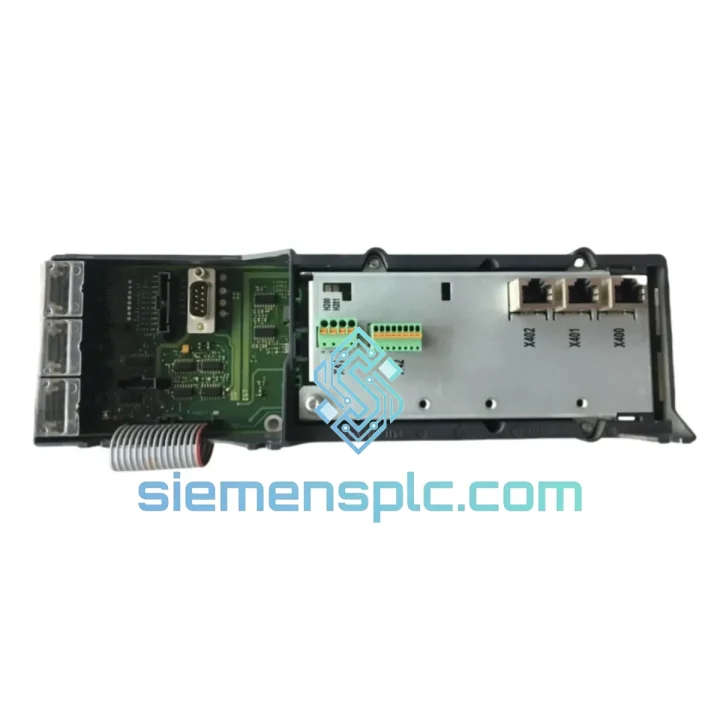

Siemens 6SL3352-6TG32-2AA3 Power Module

6SL3352-6TG32-2AA3 Down? Every Minute of Downtime Costs You Money — We Ship Today

A failed SINAMICS S120 Chassis Power Module doesn’t just halt one axis — it takes down the entire DC bus, freezing every drive in the cabinet. On a high-throughput press line or a multi-axis CNC cell, that translates directly into scrapped shifts, missed delivery windows, and penalty clauses. The Siemens 6SL3352-6TG32-2AA3 is a high-power infeed/regenerative module at the heart of your S120 architecture, and when it fails, there is no workaround — you need an exact replacement, fast.

We stock the 6SL3352-6TG32-2AA3 in Xiamen and ship same-day on confirmed orders. DHL Express reaches most of Southeast Asia within 24–48 hours, Europe in 3–5 days, and the Americas in 4–6 days. While your maintenance team is still writing the incident report, your replacement module can already be in the air.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on S120 chassis systems, these are the failure patterns and swap pitfalls that catch engineers off guard:

Common Fault Codes on a Failing 6SL3352-6TG32-2AA3:

• F06000 / F06010 — DC link overvoltage or undervoltage. Before condemning the ALM, verify the pre-charge circuit and the line contactor timing. A sticky contactor causes identical symptoms.
• F30001 / F30002 — Power unit overcurrent. Often triggered by a shorted Motor Module downstream, not the ALM itself. Isolate each Motor Module from the DC bus one at a time before pulling the ALM.
• A06912 — Line supply asymmetry alarm. Check incoming phase balance first. If phases are balanced and the alarm persists after a cold restart, the ALM’s internal voltage sensing board is suspect.
• F07011 — Motor Module communication fault after ALM replacement. This is almost always a DRIVE-CLiQ cable seating issue — reseat all DRIVE-CLiQ connectors on the new module before powering up.

Replacement Procedure — Field Checklist:

• De-energize the cabinet and verify DC bus discharge below 50 V with a calibrated meter. The 6SL3352-6TG32-2AA3 stores significant capacitive energy — do not rush this step.
• Label and photograph all DRIVE-CLiQ, power, and signal connections before disconnection. The chassis form factor has multiple identical-looking connectors.
• The 6SL3352-6TG32-2AA3 does not use DIP switches for addressing. Component addressing is handled automatically via DRIVE-CLiQ topology recognition — the CU320-2 will detect the new module on first power-up and assign it the same logical address as the failed unit, provided the DRIVE-CLiQ wiring order is preserved.
• If you are replacing with a unit from a different firmware revision, upload the project from your offline backup via STARTER or TIA Portal Startdrive before commissioning. Do not attempt to run with a firmware mismatch — the CU will throw F01018.
• After installation, perform a RAM-to-ROM save (p0977 = 1) immediately after the first successful run to lock the topology into non-volatile memory.
• Verify cooling fan rotation direction and airflow path before closing the cabinet. Reversed fan connectors are a common reassembly error on chassis modules.

Reliability in Harsh Conditions

The SINAMICS S120 Chassis platform was designed for continuous duty in environments that would destroy consumer-grade electronics. The 6SL3352-6TG32-2AA3 specifically is validated against:

• Vibration: IEC 60068-2-6 sinusoidal vibration testing at 10–58 Hz / 0.075 mm amplitude and 58–500 Hz / 1g acceleration. Suitable for press lines, compressor rooms, and mobile industrial platforms.
• Shock: IEC 60068-2-27 half-sine shock pulse 15g / 11 ms. The module survives the mechanical transients common in stamping and forging environments.
• Thermal Cycling: Rated for ambient up to 40 °C continuous, with derating curves published for operation up to 55 °C. Internal thermal management uses a monitored forced-air system with fault output on fan failure.
• Humidity: Rated to 95% relative humidity non-condensing per IEC 60068-2-78. Conformal coating on control boards provides additional protection in humid coastal or washdown-adjacent installations.
• EMC: Compliant with EN 61800-3 Category C3 for industrial environments. Integrated EMC filter reduces conducted emissions without external filter modules in most installations.
• Altitude: Full rated performance to 1,000 m ASL; derating applies above 2,000 m. Suitable for highland manufacturing facilities without additional hardware.

Every unit we ship has been stored in a climate-controlled warehouse. We do not sell modules that have been exposed to uncontrolled outdoor storage or flood-affected facilities — a common risk with grey-market chassis hardware.

Global Express Logistics

Our Xiamen warehouse is positioned 15 minutes from Xiamen Gaoqi International Airport (XMN), one of China’s primary air cargo hubs with direct freighter connections to Frankfurt, Amsterdam, Chicago O’Hare, and Dubai. This geography is deliberate — it means your emergency order moves from our shelf to an aircraft in hours, not days.

• Order Cut-off: Orders confirmed with payment by 14:00 CST ship same business day via DHL Express or FedEx International Priority.
• Southeast Asia: Singapore, Bangkok, Kuala Lumpur, Jakarta — DHL Express transit 1–2 business days.
• East Asia: Tokyo, Seoul, Taipei — DHL Express transit 1–2 business days.
• Europe: Frankfurt, Paris, Milan, Warsaw — DHL Express transit 3–5 business days. FedEx International Priority available as alternative.
• Americas: Houston, Detroit, São Paulo, Toronto — FedEx International Priority transit 4–6 business days.
• Middle East & India: Dubai, Mumbai, Riyadh — DHL Express transit 2–4 business days.
• Documentation: Commercial invoice, packing list, certificate of origin, and Siemens product datasheet ship with every order. HS Code 8504.40 declared as standard for customs clearance.
• Tracking: AWB number issued within 2 hours of dispatch. Real-time tracking link sent to your registered email.
• Packaging: Anti-static bag, foam-lined double-wall carton, moisture desiccant, and tamper-evident outer seal. The module arrives in the same condition it left our warehouse.

For plant shutdowns or production emergencies where standard express is not fast enough, contact us directly — we have arranged charter freight and hand-carry courier services for critical situations.
