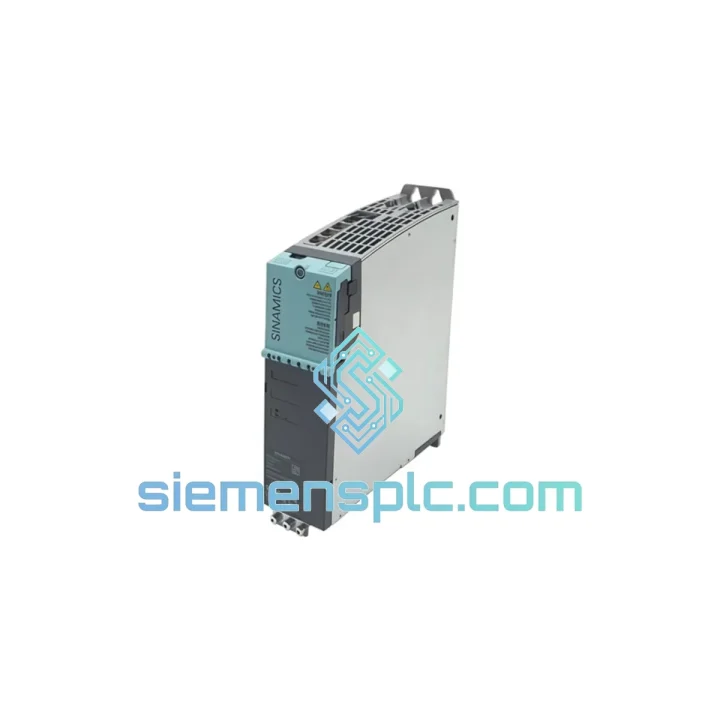

Siemens 6SL3420-2TE15-0AA1 Motor Module

6SL3420-2TE15-0AA1 In Stock — Every Hour of Downtime Costs You Money

Your line is stopped. The SINAMICS S120 Double Motor Module has faulted out and production is bleeding cash by the minute. You’ve already pulled the diagnostics — F07801, F30001, or a dead DRIVE-CLiQ handshake — and you know the module is gone. What you need now is a verified replacement on a plane, not a 12-week factory lead time.

We stock the Siemens 6SL3420-2TE15-0AA1 in Xiamen, China. Same-day dispatch on confirmed orders. DHL Express to most destinations in 2–4 business days. No broker delays, no grey-market risk — 100% original Siemens SINAMICS S120 Booksize hardware, serialized and traceable.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common fault codes that point to a failed 6SL3420-2TE15-0AA1:

• F07801 / A07801 — Motor Module: DC link undervoltage. If the DC bus is confirmed healthy on adjacent modules, the internal capacitor bank or gate driver board inside this DMM has failed. Replace the module.
• F30001 — Power unit: hardware fault. Typically an IGBT bridge failure or internal overcurrent protection trip that won’t reset. Not recoverable by parameter change.
• F01910 / F01911 — DRIVE-CLiQ communication fault on Axis 1 or Axis 2. Before condemning the module, reseat the DRIVE-CLiQ cables and check for bent pins. If the fault persists after cable swap, the DRIVE-CLiQ ASIC on the module is damaged.
• F07900 — Motor Module: overtemperature. Check fan operation first (audible spin-up on power cycle). If the fan is seized, the module may be recoverable with a fan replacement. If the power stage has already thermally degraded, replace the module.
• No DRIVE-CLiQ enumeration on CU320-2 — Module does not appear in topology after power cycle. Indicates a dead 24 V logic supply rail inside the DMM. Replace.

Step-by-step replacement procedure:

1. Safe isolation first. Confirm STO is active on both axes. Verify DC bus voltage is below 50 V with a calibrated meter before touching any terminals — the DC bus capacitors hold lethal charge for several minutes after mains disconnect.
2. Document the existing wiring. Photograph motor power terminals (U2/V2/W2 for each axis), DRIVE-CLiQ port assignments, and PE bonding before removal. The DMM has two sets of motor output terminals — label them Axis 1 and Axis 2 before disconnecting.
3. Remove DC bus bar connectors. The Booksize DC bus bar slides out laterally. Do not force it — misalignment will damage the copper contacts on adjacent modules.
4. DRIVE-CLiQ topology note. The 6SL3420-2TE15-0AA1 appears as two separate Drive Objects (e.g., SERVO_02 and SERVO_03) in STARTER/Startdrive. After installing the replacement, the CU will auto-detect the new module serial number. If you have topology comparison enabled, accept the new topology or the drive will fault on F01375.
5. Firmware matching. The replacement module must run firmware compatible with your CU firmware version. Mismatched firmware generates F01006. Use STARTER’s firmware download function or Startdrive’s device update wizard to align versions before first enable.
6. No DIP switches or address coding required. Unlike older SIMODRIVE 611 hardware, the S120 Booksize DMM is fully auto-addressed via DRIVE-CLiQ. Physical position in the DC bus row determines the topology slot — no manual addressing needed.
7. First enable checklist: Confirm DC bus voltage is nominal → check both axis DRIVE-CLiQ green LEDs → issue p0010=0 (end commissioning mode) → enable both axes via STW1 bit 0. Monitor r0002 for ready state on each axis.

Reliability in Harsh Conditions

The SINAMICS S120 Booksize platform was engineered for continuous operation in environments that destroy lesser hardware. The 6SL3420-2TE15-0AA1 carries an IP20 rating as a baseline, but the internal design tolerances go well beyond the nameplate.

The power stage uses Siemens-qualified IGBTs with gate driver circuits designed to withstand the voltage transients common in long motor cable runs — spikes that routinely exceed 1,000 V peak in installations without output reactors. The DC bus capacitor bank is rated for 100,000 hours at nominal operating temperature, not the 40 °C ambient limit but the actual junction temperatures seen in a fully loaded cabinet.

Vibration resistance meets EN 60068-2-6 (sinusoidal, 10–500 Hz, 1g) and EN 60068-2-27 (shock, 15g / 11 ms), making it suitable for installation on machine frames subject to cutting forces and press impacts. The conformal-coated PCBs inside the module resist condensation and airborne contaminants — a critical factor in food processing, textile, and chemical plant environments where humidity cycles are unavoidable.

Thermal management is handled by a variable-speed internal fan that ramps with load, extending bearing life compared to fixed-speed designs. The module’s thermal model (r0037) continuously monitors junction temperature and will derate output current before tripping, giving your process a chance to complete the cycle rather than hard-faulting mid-operation.

Units shipped from our Xiamen warehouse are stored in climate-controlled conditions at 18–25 °C with humidity below 60% RH. Each unit is inspected for physical damage, DRIVE-CLiQ port integrity, and fan operation before dispatch. ESD-safe packaging with humidity indicator cards ensures the module arrives in the same condition it left our facility.

Global Express Logistics

Downtime doesn’t wait for standard freight schedules. Our logistics process is built around one objective: getting the module into your hands before your next production shift.

• Same-day dispatch for orders confirmed and paid before 14:00 CST (Xiamen time). Orders received after cutoff ship the following morning.
• Carrier options: DHL Express (primary), FedEx International Priority, TNT Economy Express for cost-sensitive shipments. We select the fastest available service to your destination by default.
• Transit times from Xiamen: Southeast Asia 1–2 days | Europe 3–4 days | North America 3–5 days | Middle East 3–4 days | Australia 3–4 days. Times are business days and subject to customs clearance.
• Export documentation: Commercial invoice, packing list, and Certificate of Origin (CO) prepared same day. HS Code 8504.40.9990 declared. For EU imports, EORI-compliant documentation provided. For US imports, HTS 8504.40.9540 available on request.
• Customs clearance support: We work with established customs brokers in major import markets. For time-critical shipments, we can pre-file customs entries in the EU and US to eliminate clearance delays.
• Full shipment tracking provided via email and WhatsApp immediately after dispatch. AWB number shared within 2 hours of pickup confirmation.
• Insurance: All shipments are fully insured at declared value. In the event of transit damage, we initiate replacement dispatch within 24 hours of damage confirmation — no waiting for carrier claim resolution.
