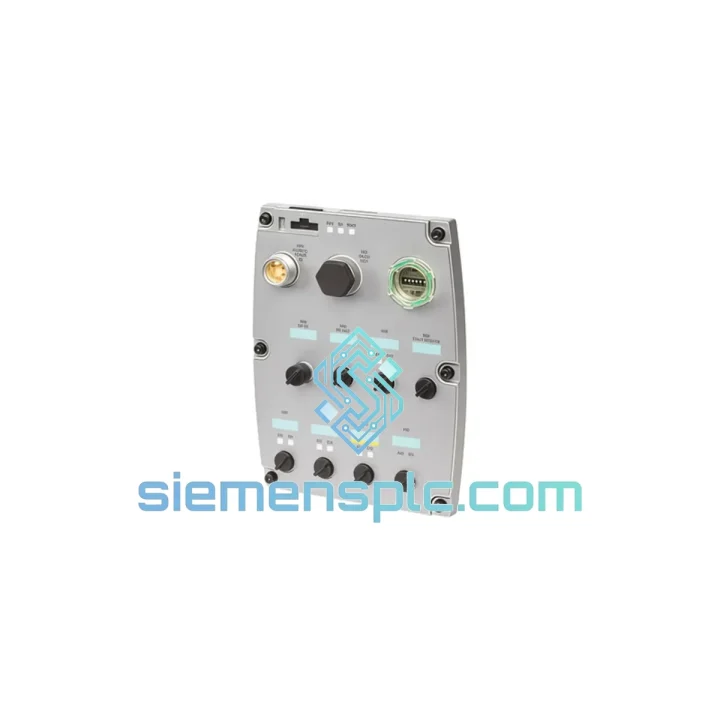

Siemens 6SL3544-0FB20-1FA0 Drive Control Unit – SINAMICS G120D

Siemens 6SL3544-0FB20-1FA0 CU250D-2 DP — Distributed Vector Control Intelligence for SINAMICS G120D Drive Systems

The 6SL3544-0FB20-1FA0 is the CU250D-2 DP control unit within the SINAMICS G120D decentralized drive family. Its primary function is to execute closed-loop vector control algorithms directly at the motor mounting point, eliminating the need for centralized drive cabinets in large-scale conveyor, pump, and material-handling installations. By relocating control intelligence to the field level, this unit reduces main cable tray cross-sections, lowers installation labor costs, and shortens commissioning cycles on distributed automation architectures.

Unlike conventional centralized inverter topologies, the G120D platform separates the control unit (CU) from the power module (PM), allowing engineers to standardize on a single CU variant across multiple power ratings — from 0.75 kW to 7.5 kW — simply by pairing with the appropriate PM250D or PM240D power module. The 6SL3544-0FB20-1FA0 carries the PROFIBUS DP fieldbus interface, making it the preferred selection for installations already standardized on SIMATIC S7-300, S7-400, or S7-1500 PLC backbones.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The CU250D-2 DP implements a dual-processor architecture: a primary DSP handles real-time PWM generation and closed-loop vector control at a 125 µs current control cycle, while a secondary microcontroller manages fieldbus communication, I/O processing, and fault diagnostics asynchronously. This separation ensures that a PROFIBUS DP communication timeout does not interrupt the active motor control loop — the drive continues executing the last valid setpoint for a configurable fault response window (P2044), preventing uncontrolled motor coast-down on conveyor lines.

EMC Design: The control unit PCB employs a four-layer stackup with dedicated ground planes separating analog signal traces from digital switching circuits. The PROFIBUS DP transceiver is galvanically isolated from the internal logic bus via an optocoupler barrier rated at 2.5 kV isolation voltage, suppressing common-mode noise injected by long fieldbus cable runs in industrial environments. The encoder input circuit incorporates differential line receiver ICs (RS-422 compatible) with 120 Ω termination, maintaining signal integrity at encoder cable lengths up to 100 m for HTL signals and 50 m for TTL.

Closed-Loop Vector Control: The CU250D-2 DP supports both speed-controlled (SLVC — Sensorless Vector Control) and encoder-feedback closed-loop vector control modes. In encoder mode, the speed controller operates with a proportional-integral (PI) structure, with Kp and Ti parameters auto-tuned via the integrated motor identification routine (MDS — Motor Data Set identification). Torque accuracy in closed-loop mode reaches ±2% of rated torque across the full speed range, including zero-speed holding torque — a requirement for vertical conveyor and hoist applications.

Safe Torque Off (STO): The unit integrates a hardware-level STO function (SIL 2 / PLd per IEC 62061 / ISO 13849-1) via two independent 24 V DC input channels. STO disables the PWM gate signals at the power module without removing the main supply voltage, enabling rapid restart after a safety event without the thermal stress of a full power cycle.

Thermal Management: The control unit monitors its internal board temperature via an NTC thermistor. If the board temperature exceeds 85 °C, the unit triggers fault F30024 and initiates a controlled ramp-down, protecting both the control electronics and the mated power module from thermal damage in high-ambient installations.

System Integration Benefits

• Native PROFIBUS DP GSD Integration: The CU250D-2 DP ships with a standard GSD file (SIEM80C3.GSD) compatible with all SIMATIC S7 PLC engineering tools, enabling drag-and-drop I/O configuration in STEP 7 and TIA Portal without manual address mapping.
• Decentralized Topology Reduces Wiring Cost: Motor-mounted installation eliminates individual power cable runs from a central cabinet to each drive point. On a 50-motor conveyor system, this can reduce copper cable consumption by 30–45% compared to centralized drive architectures.
• Deterministic Cycle Time on PROFIBUS DP: At 12 Mbit/s bus speed with 32 nodes, the G120D achieves a PROFIBUS DP cycle time of under 2 ms, sufficient for coordinated multi-axis speed synchronization on indexing conveyor applications.
• Integrated Diagnostic Transparency: The unit reports 64 fault codes and 32 alarm codes via PROFIBUS DP status words (ZSW1/ZSW2), allowing the PLC to distinguish between overcurrent, encoder loss, communication timeout, and STO activation without additional diagnostic hardware.
• Energy Recovery with PM250D: When paired with the PM250D regenerative power module, braking energy from decelerating loads is fed back to the AC supply bus rather than dissipated as heat in braking resistors — reducing energy consumption on high-cycle conveyor applications by up to 20%.
• Multi-Motor Parameter Sets (MDS): The CU250D-2 DP stores up to four independent motor data sets, enabling a single drive to control different motor types sequentially (e.g., during maintenance substitution) without re-parameterization.
• BOP-2 Local Operation: The optional BOP-2 operator panel (6SL3255-0AA00-4CA1) connects directly to the CU front port, providing local speed setpoint, fault reset, and parameter access without a laptop or PLC connection — essential for field commissioning in remote installations.
• Firmware Upgrade via PROFIBUS: Firmware updates can be distributed across all networked G120D units simultaneously via the PROFIBUS DP master, eliminating the need for individual USB connections during fleet-wide firmware maintenance cycles.

Quality Assurance & Global Logistics

Every 6SL3544-0FB20-1FA0 unit supplied by siemensplc.com is sourced through verified Siemens distribution channels with full batch traceability. Prior to dispatch from our Xiamen, China warehouse, each unit undergoes a structured pre-shipment inspection protocol: label authenticity verification against Siemens holographic security features, visual PCB inspection for transport damage, and a 24 V DC power-on functional test confirming LED status indication and PROFIBUS DP address response.

Units are packed in original Siemens ESD-safe anti-static bags, placed in foam-lined cartons with corner protection, and sealed with tamper-evident tape. Export documentation includes a commercial invoice, packing list, and certificate of origin. Customs HS code 8537.10 applies for most destination markets.

Standard international shipment is via DHL Express or FedEx International Priority, with typical transit times of 3–5 business days to Europe, 4–6 business days to North America, and 2–4 business days to Southeast Asia. Expedited same-day dispatch is available for orders confirmed before 14:00 CST. All shipments are fully insured and tracked door-to-door. A 12-month replacement warranty covers manufacturing defects; warranty claims are processed within 5 business days of unit receipt at our Xiamen facility.
