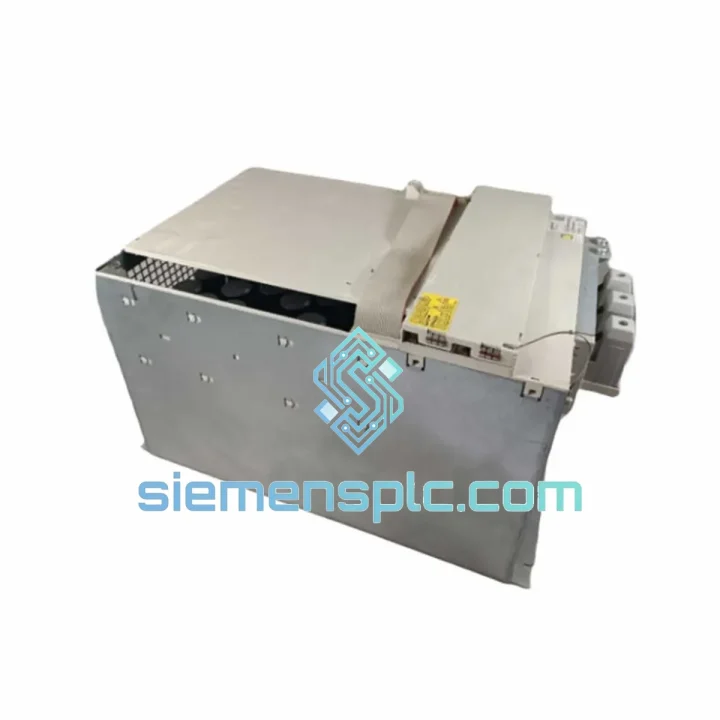

Siemens 6SN1123-1AA01-0FA1 Servo Drive Power Module – SIMODRIVE 611

Siemens 6SN1123-1AA01-0FA1 — Single-Axis Feed Power Module in the SIMODRIVE 611 Drive Architecture

The 6SN1123-1AA01-0FA1 is a single-axis feed power module belonging to Siemens’ SIMODRIVE 611 modular drive system. Within a closed-loop CNC servo architecture, this unit occupies the output stage position: it receives a PWM switching command from the paired control module (6SN1118-series), amplifies it through an IGBT-based inverter bridge, and delivers a three-phase sinusoidal current waveform to the connected servo motor. The module draws its DC energy from a shared 600 V bus supplied by an upstream infeed/regenerative supply module, making it a dependent but precisely coordinated node in the drive line-up.

Its rated continuous output of 9 A with a peak capability of 18 A positions it for feed axes carrying moderate inertia loads — typically X, Y, or Z axes on vertical machining centers (VMC), turret axes on CNC lathes, and table drives on surface grinders. The 2:1 peak-to-continuous ratio provides the transient torque headroom required during rapid traverse acceleration and deceleration without triggering overcurrent faults, a characteristic that directly affects cycle time in high-throughput production cells.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

IGBT Inverter Bridge & PWM Modulation
The power stage of the 6SN1123-1AA01-0FA1 is built around a three-phase IGBT half-bridge topology. Gate drive signals are generated by the paired control module at an 8 kHz switching frequency, producing a sinusoidal current output through space-vector PWM modulation. At 8 kHz, the audible noise component from motor windings is pushed above the dominant mechanical resonance band of most feed axis structures, reducing excitation of structural modes that would otherwise degrade surface finish in grinding and milling operations.

DC Bus Architecture & Shared Energy Recovery
The module connects directly to the 600 V DC common bus rail. During motor deceleration, regenerated kinetic energy flows back onto the bus and is either consumed by other axes accelerating simultaneously or returned to the AC supply by the infeed module’s regenerative chopper. This shared bus topology means the 6SN1123-1AA01-0FA1 does not require its own braking resistor — a significant cabinet space and thermal management advantage in multi-axis configurations.

EMC Design & Shielding Architecture
Compliance with EN 61800-3 Category C2 is achieved through a combination of internal common-mode chokes on the motor output lines, a low-impedance chassis ground connection via the module’s mounting rail, and a shielded motor cable termination scheme defined in Siemens’ EMC installation guidelines. The internal layout separates high-frequency switching nodes from the drive bus communication lines using a grounded copper shield plane, preventing PWM-generated common-mode currents from coupling into the position encoder feedback path — a failure mode that manifests as velocity ripple and contour error in precision machining.

Thermal Management & Derating Logic
An NTC thermistor mounted on the IGBT heatsink feeds a temperature signal to the control module. If the junction temperature approaches the thermal limit, the drive firmware reduces the switching frequency from 8 kHz to 4 kHz, halving switching losses and extending continuous operation. A secondary threshold triggers a controlled torque reduction before any fault shutdown, giving the machine PLC time to execute a safe axis stop rather than an abrupt e-stop — a design choice that protects workpieces and tooling in unattended machining scenarios.

Backplane Bus Communication
The module communicates with the control module via the SIMODRIVE 611 internal parallel drive bus. This bus carries current setpoint commands, status feedback, and fault codes at a deterministic cycle time synchronized to the CNC interpolation clock. The fixed-latency bus architecture ensures that the current loop closure — which runs inside the control module at a 62.5 µs cycle — receives consistent, jitter-free data from the power stage, a prerequisite for achieving the velocity loop bandwidths required in high-speed contouring applications.

System Integration Benefits

• Deterministic Current Loop Performance: The 62.5 µs current loop cycle, synchronized to the SINUMERIK interpolation clock, delivers consistent torque response across all operating speeds, eliminating the velocity ripple that causes surface waviness in finish milling passes.
• Zero-Stacking Fault Propagation: Each axis module maintains an independent fault register on the drive bus. A fault on one axis does not corrupt the status of adjacent modules, allowing the CNC to execute a coordinated multi-axis safe stop rather than a system-wide e-stop.
• Transparent Diagnostic Reporting: The module reports DC bus voltage, output current RMS, IGBT temperature, and fault codes directly to the SINUMERIK HMI via the drive bus. Maintenance engineers can read these values without additional instrumentation, reducing mean time to diagnose (MTTD) during breakdown events.
• Shared DC Bus Energy Efficiency: Regenerative energy from decelerating axes is redistributed to accelerating axes on the same bus segment, reducing net energy drawn from the infeed module by up to 30 % in multi-axis coordinated motion profiles.
• Modular Scalability: The SIMODRIVE 611 cabinet can accommodate multiple power modules on a single bus segment. Adding or replacing the 6SN1123-1AA01-0FA1 requires no rewiring of the bus — only the motor power and encoder cables are axis-specific.
• Controlled Thermal Derating: The firmware-managed frequency reduction and torque limiting sequence prevents abrupt thermal shutdowns, protecting workpieces in progress and extending IGBT service life by avoiding repeated thermal cycling at the fault threshold.
• Direct Retrofit Compatibility: The 6SN1123-1AA01-0FA1 maintains the same mechanical envelope, connector positions, and bus pinout as earlier -0EA1 and -0FA0 revisions, enabling drop-in replacement without cabinet modification or control software changes in most installations.
• Encoder Signal Integrity: The EMC shielding architecture isolates the motor power stage from the encoder feedback path, maintaining signal integrity on 1 Vpp sine/cosine encoder interfaces at cable lengths up to 50 m — a requirement for high-resolution position feedback in precision grinding and jig boring applications.
• Coordinated Safe Stop Execution: When integrated with SINUMERIK Safety Integrated, the module participates in Safe Torque Off (STO) and Safe Stop 1 (SS1) functions, meeting PLd / Category 3 requirements per EN ISO 13849-1 without external safety relays on the motor power circuit.

Quality Assurance & Global Logistics

Every 6SN1123-1AA01-0FA1 unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment verification sequence. Part number, date code, and firmware label are cross-referenced against Siemens’ official documentation. Connector housings, PCB condition, and housing integrity are inspected under controlled lighting. Units are packed in ESD-safe anti-static bags, enclosed in foam-lined cartons with moisture barrier protection, and sealed with tamper-evident tape. Batch traceability records are maintained for all stocked inventory and are available to customers on request.

Xiamen’s geographic position — adjacent to Xiamen Gaoqi International Airport and within 48 hours of major global freight hubs — enables consistent transit times: 3–5 business days to Europe via DHL Express or FedEx International Priority, 2–4 business days to Southeast Asia, and 4–7 business days to North America. All shipments include a commercial invoice, packing list, and certificate of origin. Customs documentation for industrial automation components is prepared in compliance with HS Code 8537.10 classification requirements.

A 12-month warranty covers all units against manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed with a target response time of 48 hours from receipt of the defective unit. Replacement units are dispatched from stock where available, minimizing machine downtime for customers operating under production schedules.
