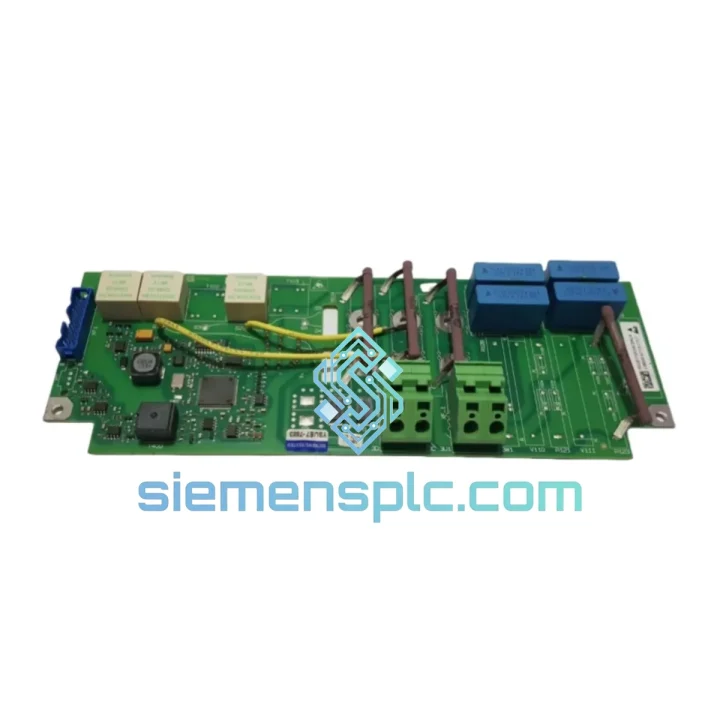

Siemens C98043-A7116-L100 CPU Module

Siemens C98043-A7116-L100 – Stop the Bleeding: Get Your CNC Back Online Before the Next Shift

Every minute a SINUMERIK-controlled machining center sits dead, you’re burning money. Spindle drives locked out. Axis positioning gone. Operators standing around. The C98043-A7116-L100 is the CPU carrier module that runs the show on C98043-series drive control boards — when it fails, nothing moves. We stock it. We ship it today. From Xiamen to your dock, DHL Express typically lands in 3–5 business days. That’s the difference between a half-day incident and a week-long production crisis.

This module serves the SINUMERIK 6SC / 6SN drive ecosystem — the backbone of precision machining centers, grinding lines, and multi-axis turning cells that have been running in automotive, aerospace, and heavy fabrication plants for decades. The installed base is massive. The OEM no longer prioritizes it. That’s exactly why we do.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Pulled from real field experience. Before you pull the board, run through this checklist — a bad CPU module is often misdiagnosed.

Common Fault Codes Pointing to C98043-A7116-L100 Failure:

• Alarm 300500 / 300600 – Drive communication timeout. The CPU module has stopped responding to the NCK. First suspect: corrupted firmware on the CPU carrier, or the module has physically failed.
• Alarm 380000 – Power section not ready. Can be a downstream symptom when the CPU module fails to initialize the drive board correctly on power-up.
• Alarm 25000 / 25001 – Encoder monitoring fault. If the CPU module’s signal processing path is degraded, encoder feedback gets corrupted — the controller throws axis faults that look like encoder cable issues but aren’t.
• No LED activity on drive board after power-up – If the C98043 board powers up but shows no status LEDs, the CPU module is the first thing to swap. The board’s logic depends entirely on this module to initialize.

Step-by-Step Replacement Procedure:

1. Full system power-down. Lock out / tag out. Discharge the DC bus — wait a minimum of 5 minutes after power-off before touching the drive cabinet. Measure with a multimeter before proceeding.
2. Document current configuration. Before removing the old module, photograph the board layout, note any DIP switch positions on the C98043 board, and record the SINUMERIK firmware version from the HMI (if still accessible). This is critical for post-swap commissioning.
3. Remove the C98043 drive board from the rack. The CPU module (L100) is a plug-in sub-board — do not attempt to swap it in-situ inside a live cabinet.
4. Check DIP switch settings. The C98043 board uses DIP switches for axis address assignment and drive type selection. The replacement CPU module must be installed with the same switch configuration as the failed unit. Mismatch here causes immediate alarm on power-up.
5. Seat the new C98043-A7116-L100 firmly. Align the edge connector carefully. Apply even pressure — do not rock the module. Confirm all connector pins are fully engaged before re-installing the board.
6. Firmware check on first power-up. After installation, the SINUMERIK NCK may prompt a firmware version mismatch if the replacement module carries a different firmware revision. Have the correct firmware file ready on a CF card or PC tool (SINUMERIK Operate / SIMATIC S7). In most cases, the existing NCK firmware is compatible — but verify before declaring the machine ready.
7. Run a drive optimization cycle. After the module is confirmed communicating, execute a motor data identification run (if the machine was previously tuned) to verify the drive parameters are intact. Check all axis reference points before releasing the machine to production.

Pro tip: If you’re seeing intermittent faults that clear on power cycle but return within hours, check the module’s connector pins for micro-corrosion before condemning the module outright. A contact cleaner and re-seat often buys time — but plan the replacement immediately. Intermittent CPU module failures always escalate.
