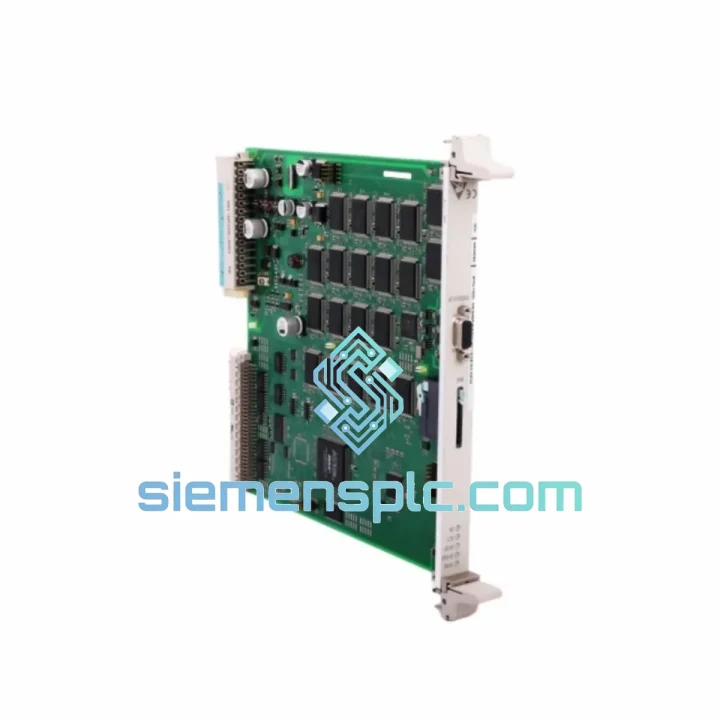

Siemens 7KG8000-8AB20/FF Digital Output Module – SENTRON 7KG Series

Siemens 7KG8000-8AB20/FF Foundation Fieldbus Digital Output Module — Control Loop Architecture and Functional Role

The Siemens 7KG8000-8AB20/FF is a digital output module belonging to the SENTRON 7KG metering and communication platform, engineered for deployment in Foundation Fieldbus (FF H1) segment architectures within power distribution, process automation, and building energy management systems. Its primary function is to translate discrete control commands issued by an FF host system or DCS into galvanically isolated switching actions at the field level — closing or opening relay or transistor output contacts that drive actuators, contactors, solenoid valves, or alarm annunciators.

Within a closed control loop, this module occupies the final control element tier. The FF H1 bus delivers deterministic, time-stamped function block execution at 31.25 kbit/s, and the 7KG8000-8AB20/FF participates as a standard FF field device, executing the Discrete Output (DO) function block defined in the FF specification. This means the module’s output state is governed by a scheduled macro-cycle managed by the FF Link Master — not by polled request — which eliminates the non-determinism inherent in conventional polling-based fieldbus architectures. For process engineers, this translates to sub-cycle output actuation with predictable latency, a property critical in interlock and safety-instrumented-system (SIS) auxiliary output applications.

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Foundation Fieldbus Bus-Powered Architecture: The 7KG8000-8AB20/FF draws operating power directly from the FF H1 segment cable, conforming to the IEC 61158-2 physical layer specification. This eliminates the need for a separate 24 V DC auxiliary supply rail at the device terminal, reducing wiring complexity in panel builds and lowering the risk of supply-rail ground loops that commonly introduce common-mode noise in analog-adjacent circuits.

Galvanic Isolation and EMC Design: The output switching circuit is galvanically isolated from the FF communication bus via an optocoupler barrier rated to withstand transient voltages consistent with IEC 61000-4-5 Level 3 surge immunity (2 kV line-to-earth). This isolation architecture prevents ground potential differences between the control network and the actuator power circuit from coupling noise back into the FF segment — a failure mode that can corrupt bus arbitration in high-density segment configurations with 16 or more devices.

Deterministic Macro-Cycle Execution: Unlike PROFIBUS DP modules that rely on a master polling cycle with variable latency, the FF H1 Link Active Scheduler (LAS) assigns a fixed time slot to each device’s function block execution within the macro-cycle. The DO function block in the 7KG8000-8AB20/FF executes at a scheduled interval, meaning output state changes are applied within a bounded time window — typically within one macro-cycle period (configurable from 100 ms to several seconds depending on segment load). This determinism is essential for interlock logic where output actuation timing must be auditable.

Fail-Safe Output Behavior: The module supports configurable fault-state output behavior via the DO function block’s FSTATE_VAL and FSTATE_TIME parameters. If the FF communication link is interrupted — due to segment cable fault, LAS failure, or host system restart — the output will transition to the pre-configured fault state (energized or de-energized) after the defined timeout. This behavior is configurable through the FF Device Description (DD) and eliminates the undefined output state that occurs in non-FF digital output modules during bus loss events.

Device Description (DD) and Interoperability: The module ships with a registered FF Device Description file, enabling configuration via any FF-compliant host system (Emerson DeltaV, Honeywell Experion, ABB 800xA, Yokogawa CENTUM VP) without vendor-specific drivers. The DD defines all configurable parameters, alarm conditions, and diagnostic variables in a standardized format, which simplifies multi-vendor system integration and reduces commissioning time.

System Integration Benefits

• Deterministic output actuation: FF H1 macro-cycle scheduling guarantees bounded output latency, enabling the module to participate in time-critical interlock and sequential control logic without introducing polling-induced jitter.
• Unified diagnostic transparency: The module reports output status, fault conditions, and communication health via standard FF diagnostic parameters accessible from any FF host, eliminating the need for separate diagnostic wiring or local indicator panels.
• Reduced segment wiring cost: Bus-powered operation means a single twisted-pair cable carries both communication and device power, cutting field wiring material and labor costs compared to conventional 4-wire DO module installations.
• Configurable fault-state output: FSTATE_VAL and FSTATE_TIME parameters allow engineers to define safe output behavior during bus loss, supporting SIL-rated auxiliary output applications where undefined output states are not acceptable.
• Multi-vendor host compatibility: Registered FF Device Description ensures plug-and-play configuration in any IEC 61158-compliant DCS or FF host system, protecting the investment if the control platform is migrated in future plant upgrades.
• Native SENTRON/SICAM ecosystem integration: Within Siemens SENTRON PAC and SICAM A8000 architectures, the module integrates without gateway hardware, reducing latency and eliminating protocol translation errors that occur in bridged topologies.
• Segment load efficiency: With a bus current draw of ≤ 12 mA, the module imposes minimal load on the FF H1 segment power conditioner, allowing higher device density per segment (up to 32 devices at standard segment power budgets).
• Standardized DIN rail form factor: 35 mm DIN rail mounting with IP20 protection class allows direct installation in standard IEC 60439-compliant control panels without custom mounting hardware, simplifying panel layout and spare-parts standardization across multi-site installations.
• Alarm and event logging: The module generates discrete output change-of-state (COS) events that are time-stamped and logged by the FF host historian, providing a complete audit trail of output actuations for regulatory compliance and root-cause analysis.
• Long-term Siemens lifecycle support: The 7KG series carries Siemens’ extended product lifecycle commitment, with firmware updates and spare-parts availability documented in the Siemens Industry Mall, reducing obsolescence risk in long-lifecycle plant environments.

Quality Assurance & Global Logistics

Every unit of the Siemens 7KG8000-8AB20/FF supplied through siemensplc.com is sourced from verified supply channels with full part traceability. Prior to dispatch, each module undergoes visual inspection for physical integrity, label authenticity verification against Siemens factory markings, and functional continuity checks. Original Siemens factory packaging is preserved where available; where not, anti-static ESD-safe packaging conforming to IEC 61340-5-1 is applied to protect the module’s internal electronics during transit.

Our logistics operation is based in Xiamen, China — a major international freight hub with direct air cargo connections to Frankfurt, Amsterdam, Dubai, Los Angeles, Singapore, and Tokyo. Standard international shipments are dispatched within 1–3 business days of order confirmation via DHL Express, FedEx International Priority, or UPS Worldwide Expedited, with full tracking provided from pickup to delivery. For urgent plant-down situations, same-day dispatch is available for in-stock units on orders confirmed before 14:00 CST. Customs documentation — including commercial invoice, packing list, and certificate of origin — is prepared in compliance with destination country import requirements to minimize clearance delays. All shipments carry a 12-month warranty from the date of dispatch, covering manufacturing defects and functional failure under normal operating conditions.
