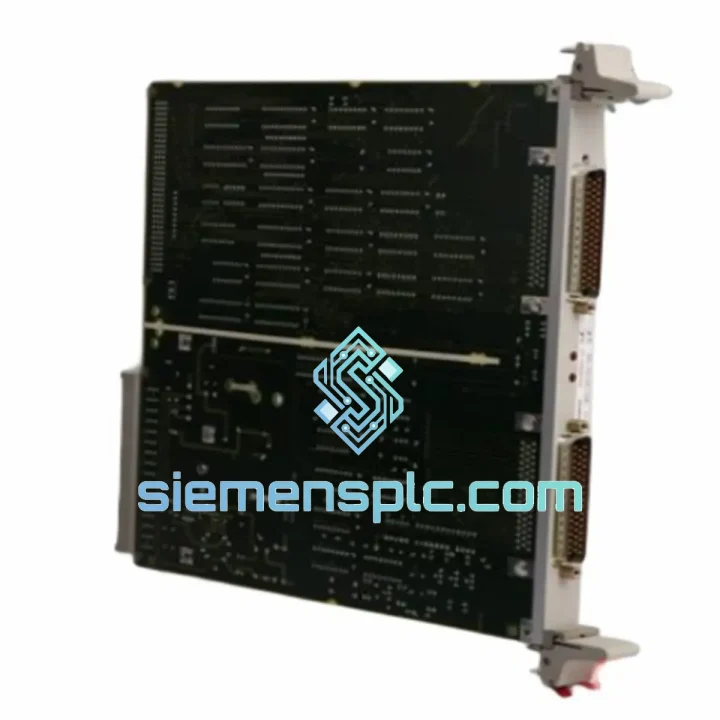

Siemens 7UM5111-4CB01-0BB0/JJ Protection Relay – SIPROTEC 7UM51

Siemens 7UM5111-4CB01-0BB0/JJ — SIPROTEC Numerical Machine Protection Relay for Motor, Generator & Transformer Applications

The Siemens 7UM5111-4CB01-0BB0/JJ is a numerical protection relay from the SIPROTEC 7UM51 platform, engineered for comprehensive electrical machine protection in medium-voltage and high-voltage industrial power systems. It consolidates multiple discrete protection functions into a single IED (Intelligent Electronic Device), reducing panel footprint while delivering deterministic fault clearance across motor, generator, and transformer feeders. The suffix breakdown is operationally significant: 4CB01 designates a 24–48 V DC auxiliary supply input; 0BB0 specifies dual communication capability via PROFIBUS DP and IEC 60870-5-103; JJ identifies the standard flush-mount housing with integrated LCD operator panel.

This relay is deployed across oil & gas compression stations, chemical process plants, power generation facilities, water treatment infrastructure, and marine electrical distribution systems — environments where protection selectivity, fault recording fidelity, and SCADA transparency are non-negotiable engineering requirements.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 7UM5111 is built on a 32-bit DSP-based signal processing architecture. Analog current and voltage inputs pass through dedicated anti-aliasing filters before entering a 16-bit ADC sampling chain operating at 1 kHz per channel. This sampling rate supports accurate phasor extraction via discrete Fourier transform (DFT) algorithms, enabling the relay to resolve fundamental-frequency components from distorted waveforms typical of variable-speed drive environments and transformer inrush conditions.

Optocoupler Input Isolation: All eight binary inputs are galvanically isolated via high-speed optocouplers rated at 2.5 kV AC isolation voltage. Input threshold voltage is configurable in firmware to accommodate 24 V DC, 48 V DC, or 110 V DC control circuits without hardware modification — a practical advantage in retrofit projects where control voltage standards vary across panel generations.

EMC Design Architecture: The relay chassis employs a multi-layer PCB stack with dedicated ground planes separating analog signal paths from digital logic and communication circuits. Ferrite bead filtering is applied at all I/O entry points. The housing provides shielded enclosure continuity, and the relay meets IEC 61000-4-4 (EFT/Burst, 4 kV) and IEC 61000-4-5 (Surge, 2 kV) immunity levels — essential for installations adjacent to high-power switchgear and variable-frequency drives that generate significant conducted and radiated interference.

Thermal Overload Model (ANSI 49): The thermal replica algorithm tracks both positive-sequence and negative-sequence current components. Negative-sequence heating is weighted by a factor K (configurable, typically K = 3–6 for cage induction motors) to account for the disproportionate rotor heating caused by unbalanced supply voltages. The thermal state is retained in non-volatile memory across auxiliary supply interruptions, preventing premature restart of a thermally stressed machine after a brief power outage.

Differential Protection Logic (ANSI 87M): The differential element uses a percentage-restrained characteristic with a configurable slope (typically 20–40%) to maintain stability during external faults and CT saturation transients. A harmonic restraint function (2nd harmonic blocking) prevents false tripping during transformer energization. The operate-to-restrain ratio is computed on a per-cycle basis, ensuring sub-cycle fault detection for internal winding faults.

PROFIBUS DP Interface: The 0BB0 communication variant implements PROFIBUS DP slave functionality at baud rates up to 1.5 Mbit/s. Cyclic data exchange transmits measured values, protection status, and binary I/O states to the SCADA master with a typical update cycle of 10–20 ms. Acyclic services (MSAC1) support parameterization and fault record retrieval without interrupting cyclic communication — a design feature that eliminates the need to take the relay offline for configuration changes during live plant operation.

System Integration Benefits

• Deterministic protection response: Overcurrent and earth fault elements operate within one power frequency cycle (20 ms at 50 Hz) from fault inception to trip command, meeting IEC 60255-151 class requirements for high-speed protection.
• Dual-protocol SCADA connectivity: Simultaneous PROFIBUS DP and IEC 60870-5-103 ports allow integration into both Siemens-native DCS environments (SIMATIC PCS 7, WinCC) and third-party SCADA systems without protocol converters.
• Oscillographic fault recording: Eight fault records with pre-fault and post-fault waveform capture (configurable window, typically 0.5 s pre + 1.0 s post) provide the raw data required for post-event analysis, insurance claims, and root-cause investigations.
• Non-volatile thermal state memory: Thermal replica state is preserved across power cycles, preventing premature motor restart after supply interruptions and extending motor winding insulation life.
• Configurable binary I/O mapping: All eight binary inputs and seven output relays are freely assignable via DIGSI 4, enabling the relay to adapt to site-specific interlocking logic without external relay modules.
• Integrated metering functions: The relay continuously measures and transmits phase currents, earth current, phase voltages, active/reactive power, power factor, and frequency — eliminating the need for separate panel meters on the motor feeder.
• Negative-sequence supervision (ANSI 46): Continuous monitoring of current unbalance detects open-phase conditions, blown fuses, and asymmetric loading before thermal damage accumulates in motor windings, providing early warning rather than post-damage tripping.
• Locked rotor and restart inhibit (ANSI 48/66): The locked rotor element detects stall conditions during motor starting by monitoring current magnitude against a time threshold. The restart inhibit function counts start attempts within a configurable time window, preventing repeated starts that would exceed the motor’s thermal withstand capability.

Quality Assurance & Global Logistics

Every 7UM5111-4CB01-0BB0/JJ unit dispatched from our Xiamen, China facility is sourced from verified Siemens authorized distribution channels or authenticated surplus stock with full traceability documentation. Pre-shipment inspection covers visual examination of housing integrity, terminal block condition, LCD display function, firmware version verification against Siemens release records, and optocoupler input response testing.

Units are packed in anti-static foam-lined cartons with desiccant sachets to protect against humidity ingress during ocean freight. Export documentation includes commercial invoice, packing list, certificate of origin, and — upon request — a third-party inspection report from SGS or Bureau Veritas. Customs HS code 8536.49 applies for standard relay classification.

Logistics routes from Xiamen serve global destinations: air freight to Europe (Frankfurt, Amsterdam) in 3–5 business days; air freight to North America (Los Angeles, Chicago) in 4–6 business days; sea freight LCL consolidation for bulk orders with 18–25 day transit to major ports. DHL Express, FedEx International Priority, and UPS Worldwide Express are standard carriers for urgent single-unit shipments. All shipments are fully insured and tracked from dispatch to delivery confirmation.

A 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed within 5 business days of receipt of the returned unit. Replacement units are dispatched from stock where available, minimizing plant downtime.
