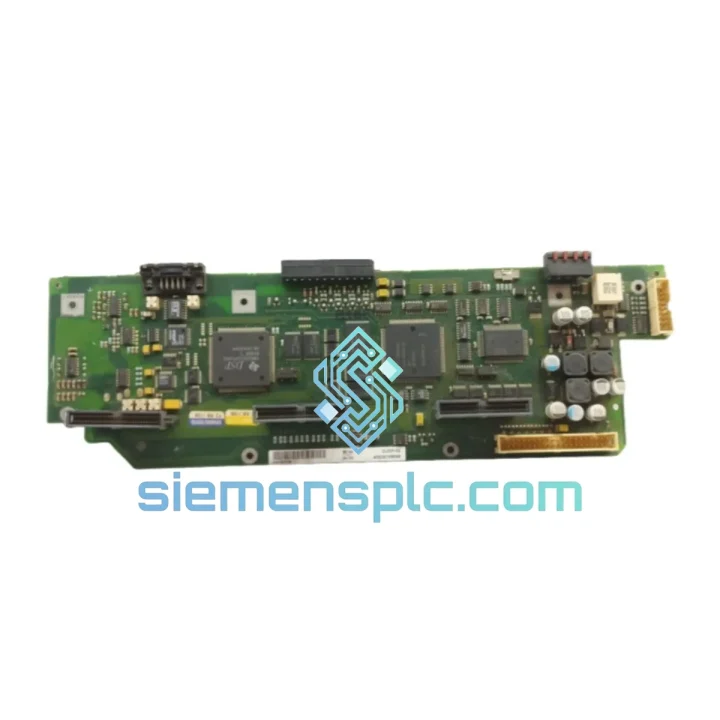

Siemens A5E00158598 Motor Control Module

Siemens A5E00158598 Motor Control Board — Every Hour of Downtime Costs You. We Ship Today.

Your SINAMICS or SIMOVERT drive just threw a fault. The line is stopped. Maintenance is standing by. You’ve already pulled the control board and confirmed it’s the A5E00158598 — now you need a replacement in hand, not a lead time quote that stretches into next week. That’s exactly the gap we close. We stock the Siemens A5E00158598 Motor Control Module in Xiamen and dispatch same-day via DHL Express or FedEx International Priority. From our warehouse shelf to your panel door, typically 48–72 hours anywhere in the world.

The A5E00158598 is the closed-loop motor regulation board at the heart of multiple Siemens drive platforms. It handles speed, torque, and flux vector control — the algorithms that keep your motor synchronized to process demand. When this board fails, the drive cannot execute any motion command. There is no workaround, no parameter tweak that bypasses it. Replacement is the only path back to production.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on Siemens drive systems, these are the failure patterns and replacement pitfalls that catch engineers off guard with the A5E00158598:

Common Fault Codes Pointing to This Board:

• F30001 / F30002 (Overcurrent / Short Circuit): If the power section tests clean and the motor insulation is intact, the control board’s current measurement circuitry is the next suspect. The A5E00158598 handles the ADC inputs for phase current feedback — a failed op-amp or reference voltage on this board will generate persistent overcurrent faults with no actual overcurrent present.
• F07900 / A07902 (Motor Encoder Feedback Loss): The encoder interface logic sits on this control board. Before condemning the encoder cable or the SMC30 sensor module, swap the A5E00158598 — intermittent encoder loss faults that clear on power cycle but return under load are a classic symptom of a degraded control board, not a wiring fault.
• F01910 (DRIVE-CLiQ Communication Fault): The DRIVE-CLiQ interface chip is integrated on this board. If you’re seeing topology recognition failures after a power surge event, the A5E00158598 is the first board to replace before pulling the CU320-2 Control Unit.
• A05100 / F05101 (Temperature Sensor Fault): The KTY84 or PT1000 motor temperature input is processed on this board. A failed input stage will generate false overtemperature alarms even with a cold motor.

Replacement Procedure — Field Notes:

• Power isolation first: Full DC bus discharge is mandatory before touching the control board. Measure the DC link capacitors — wait until below 50 V DC. Do not rely on the drive’s ready LED alone.
• Firmware matching: The A5E00158598 must match the firmware version running on the CU (Control Unit). Before ordering, note the firmware version from p0018 in the drive parameters. Mismatched firmware between the control board and CU will result in F01018 (Firmware version mismatch) on first power-up. We can advise on firmware-compatible units — provide your CU serial number when ordering.
• No DIP switch or rotary address setting on this board: Unlike some older SIMOVERT boards, the A5E00158598 uses automatic DRIVE-CLiQ topology recognition. No manual addressing is required. The CU will auto-detect the replacement board on the next power cycle.
• Parameter backup before removal: Use STARTER or Startdrive to export a full parameter backup (p0971 = 1 for RAM-to-ROM save, then export via project). After replacement, restore the backup — do not attempt to recommission from scratch under production pressure.
• Torque the connector screws: The 24 V logic supply connector and the DRIVE-CLiQ port are the two most common sources of intermittent faults post-replacement. Torque to spec and apply a thread-lock marker for vibration environments.
• First power-up check: After installation, monitor r0002 (Drive state) and r0046 (Missing enable signals). The drive should reach r0002 = 4 (Operation enabled) within 30 seconds of power-up if the replacement board is compatible and parameters are restored correctly.

Reliability in Harsh Conditions

The A5E00158598 is not a commercial-grade PCB. Siemens engineers this board for the realities of industrial panel environments — not the controlled conditions of a server room. Here’s what it’s built to handle:

Thermal Stress: The board operates across a wide ambient temperature range, with components selected for continuous duty at elevated junction temperatures. The conformal coating on the PCB surface prevents condensation-induced leakage currents during thermal cycling — a common failure mode on cheaper aftermarket boards that skip this step. In steel mill and foundry applications where panel ambient temperatures regularly exceed 45°C, the A5E00158598 maintains stable operation where non-OEM alternatives fail within months.

Vibration and Mechanical Shock: Siemens qualifies drive components to IEC 60068-2-6 (sinusoidal vibration) and IEC 60068-2-27 (mechanical shock). In press shop and compactor applications where the drive panel is mounted close to the machinery, the board’s component mounting and PCB layer stack are designed to resist solder joint fatigue over years of continuous vibration exposure. Connector retention forces are specified to prevent intermittent contact under shock loads.

Humidity and Contamination: The conformal coating provides protection against humidity, light oil mist, and airborne particulates — conditions common in food processing, chemical, and paper mill environments. This is not a sealed board, so it should not be exposed to direct liquid ingress, but it handles the condensation and humidity cycles that occur in unheated outdoor enclosures in tropical climates without the corrosion failures seen on uncoated alternatives.

EMC Immunity: The board’s signal routing and shielding design comply with Siemens’ internal EMC requirements, which exceed the IEC 61800-3 Category C2 limits for drive systems. In environments with heavy welding equipment, large motor contactors, or variable-frequency lighting, the A5E00158598 maintains stable control signal integrity where boards with inadequate ground plane design introduce noise-induced faults.

Global Express Logistics

We operate from Xiamen, China — one of the country’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. Here’s how a typical urgent order moves:

• Order confirmed before 15:00 CST: Unit is picked, ESD-packaged, and handed to the carrier the same business day.
• DHL Express Worldwide: Southeast Asia — 24–36 hours. Europe — 48–72 hours. Americas — 48–72 hours. Middle East / Africa — 72–96 hours.
• FedEx International Priority: Available as an alternative for destinations where FedEx has stronger network coverage. Transit times comparable to DHL Express.
• Export documentation: Commercial invoice, packing list, and certificate of origin prepared for every international shipment. HS code classification handled by our logistics team to prevent customs clearance delays.
• Tracking: AWB number sent via email and WhatsApp within 2 hours of carrier pickup. Real-time tracking link provided.
• Customs value declaration: Accurate and compliant. We do not undervalue shipments — this protects you from customs holds that would defeat the purpose of express shipping.
• Dangerous goods: The A5E00158598 contains no lithium batteries or hazardous materials. No special shipping restrictions apply.

For customers in Southeast Asia, the Middle East, and Eastern Europe where we have established freight relationships, we can often offer door-to-door delivery with import duty pre-paid (DDP terms) — ask when you contact us.

Contact Information

📧 Email: [email protected]
💬 WhatsApp: +86 18359268345
🌐 Web: siemensplc.com
