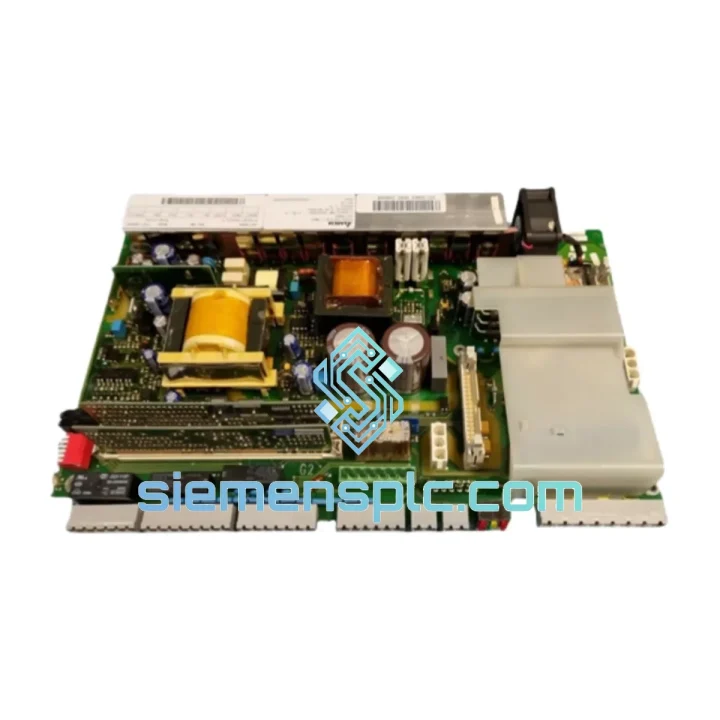

Siemens A5E00423050 D0116963 PLC Module – SIMATIC S7

Siemens A5E00423050 D0116963 — Backplane Interface Module in the SIMATIC S7 Control Architecture

The Siemens A5E00423050 D0116963 is a backplane-mounted interface and communication coordination module within the SIMATIC S7 platform — a control architecture deployed across discrete manufacturing, process automation, and utility infrastructure worldwide. This module occupies a defined slot position on the S7-300 or S7-400 rack and serves as a signal routing and bus arbitration component, managing data exchange between the CPU backplane bus and peripheral I/O subassemblies.

Unlike generic interface cards, the A5E00423050 D0116963 is engineered to Siemens’ internal hardware specification for deterministic cycle-time compliance. Its role in the control loop is not passive: it participates in the rack’s internal P-bus and K-bus handshake sequences, ensuring that I/O scan data is transferred to the CPU’s process image with sub-millisecond latency consistency. In high-density rack configurations — where 32 or more I/O modules share a single backplane — this module’s bus load management logic prevents arbitration collisions that would otherwise introduce jitter into the PLC scan cycle.

The module’s physical form factor conforms to the SIMATIC S7 DIN rail mounting standard, with a 40-pin backplane connector providing both power rail contacts and differential signal lines. The connector’s gold-plated contact surfaces are rated for a minimum of 100 insertion cycles, a specification relevant to maintenance environments where modules are periodically swapped during planned shutdowns. The housing is constructed from flame-retardant thermoplastic (UL 94 V-0 rated), with an operating temperature range of 0 °C to +60 °C and storage tolerance down to −40 °C — parameters that align with IEC 61131-2 environmental class TX.

From a signal integrity standpoint, the A5E00423050 D0116963 incorporates differential line drivers on its internal bus interface, reducing common-mode noise susceptibility in electrically noisy panel environments. This is particularly relevant in installations adjacent to variable-frequency drives (VFDs), where conducted and radiated EMI can corrupt parallel bus signals on lesser-quality interface hardware. The module’s internal ground plane topology follows Siemens’ standard four-layer PCB design, with dedicated power and ground planes sandwiched between signal layers — a layout that achieves a measured impedance of 50 Ω ±10% on high-speed signal traces.

For procurement engineers and system integrators sourcing this part for installed-base maintenance, the D0116963 suffix denotes the hardware revision identifier assigned by Siemens’ Nuremberg manufacturing facility. This revision designation is critical when cross-referencing against Siemens’ compatibility matrices in the SIMATIC S7 spare parts catalog, as certain firmware versions of the S7-300 CPU (e.g., CPU 315-2 DP, CPU 317-2 PN/DP) require specific hardware revision ranges for guaranteed interoperability. Buyers should confirm the target CPU firmware version prior to ordering if the installation is running TIA Portal V15 or later with hardware configuration validation enabled.

Stock is maintained at our Xiamen, China warehouse with same-day dispatch capability for in-stock units. All units are stored in climate-controlled conditions at 20 °C ±5 °C and 45–65% RH, consistent with IEC 60068-2-78 damp heat storage requirements for electronic assemblies. Each unit ships in original Siemens anti-static packaging with the factory seal intact where available, accompanied by a certificate of conformity and our 12-month warranty documentation.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Bus Arbitration and Cycle-Time Determinism: The A5E00423050 D0116963 implements a token-passing arbitration scheme on the SIMATIC internal P-bus. Each module on the rack is assigned a fixed slot address, and the arbitration logic grants bus access in a deterministic round-robin sequence. This eliminates the non-deterministic latency associated with contention-based bus protocols, ensuring that the CPU’s process image update time remains bounded regardless of the number of active I/O modules in the rack.

EMC Design and Shielding Architecture: The module’s PCB incorporates a continuous ground plane beneath all signal routing layers, providing a low-impedance return path that suppresses ground bounce on fast-switching digital lines. The backplane connector shell is mechanically bonded to the chassis ground rail, creating a Faraday enclosure effect that attenuates externally coupled RF interference. Siemens’ internal EMC testing for this module series covers conducted emissions per EN 55011 Class A and immunity per IEC 61000-4-4 (electrical fast transient, 2 kV) and IEC 61000-4-5 (surge, 1 kV/2 kV).

Thermal Management: The module operates without active cooling. Heat dissipation relies on conduction through the backplane connector and convection across the module’s vented housing. The thermal design margin at maximum ambient (60 °C) maintains junction temperatures on critical ICs at least 15 °C below their rated maximum, providing a conservative derating that extends component service life in continuous 24/7 operation environments.

Firmware Revision Compatibility: The D0116963 hardware revision is validated against STEP 7 V5.x and TIA Portal V13–V18 hardware configuration libraries. The module’s MLFB (machine-readable order number) is embedded in its EEPROM, allowing the TIA Portal hardware configurator to auto-identify the module and validate slot assignment against the project’s hardware configuration — a feature that prevents misconfiguration errors during rack expansion or module replacement.

System Integration Benefits

• Zero-configuration slot recognition: The module’s EEPROM-stored MLFB enables automatic identification by STEP 7 and TIA Portal, eliminating manual parameter entry during rack commissioning and reducing configuration error risk.
• Deterministic I/O scan latency: Token-passing bus arbitration guarantees bounded process image update times, a prerequisite for closed-loop control applications with cycle times below 10 ms.
• Direct drop-in replacement: Physical and electrical compatibility with existing S7-300/400 rack installations means no mechanical modification, no re-wiring, and no changes to the PLC program — minimizing planned downtime during maintenance.
• Integrated diagnostic transparency: The module reports hardware fault states (e.g., bus timeout, power rail undervoltage) directly to the CPU’s diagnostic buffer, accessible via STEP 7 or TIA Portal without additional diagnostic hardware.
• EMI-hardened signal interface: Differential line drivers and controlled-impedance PCB traces maintain signal integrity in panel environments with co-located VFDs, servo drives, and high-current switching contactors.
• Extended temperature operating range: 0–60 °C ambient rating supports deployment in non-air-conditioned control cabinets in tropical or desert climates without derating.
• Long-term spare parts availability: As a catalogued Siemens SIMATIC S7 component, the A5E00423050 is supported under Siemens’ industrial spare parts program, with documented cross-references to successor modules for future migration planning.
• RoHS and CE compliance: Meets EU Directive 2011/65/EU (RoHS) and carries CE marking, satisfying procurement compliance requirements for European end-customers and export documentation for regulated markets.
• Consistent power rail loading: The module’s 5 V DC consumption is within the SIMATIC S7 rack power budget specification, allowing system designers to calculate total rack power draw without derating assumptions.
• Anti-static storage and handling: Factory anti-static packaging with humidity indicator cards ensures ESD-sensitive components arrive within specification, reducing infant mortality failures during installation.

Quality Assurance & Global Logistics

Every Siemens A5E00423050 D0116963 unit dispatched from our Xiamen facility undergoes a structured pre-shipment verification protocol. Visual inspection confirms label integrity, housing condition, and connector pin geometry. Units with broken factory seals are individually documented and disclosed prior to sale. Where test equipment is available, functional verification is performed against Siemens’ published electrical parameters.

Our Xiamen warehouse maintains ISO-compliant storage conditions: temperature 20 °C ±5 °C, relative humidity 45–65%, with continuous environmental logging. Inventory is managed on a FIFO basis to minimize shelf-age accumulation on slow-moving SKUs.

Logistics options from Xiamen include DHL Express (2–4 business days to Europe/North America), FedEx International Priority, and sea freight consolidation for bulk orders. All shipments include a commercial invoice, packing list, and certificate of conformity. Export documentation for controlled-destination countries is prepared in compliance with Chinese customs regulations and the destination country’s import requirements. Typical in-stock dispatch lead time is 1–2 business days from order confirmation.

A 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed via email with a return merchandise authorization (RMA) number issued within 48 business hours. Replacement units are dispatched from Xiamen stock upon receipt and inspection of the returned item.
