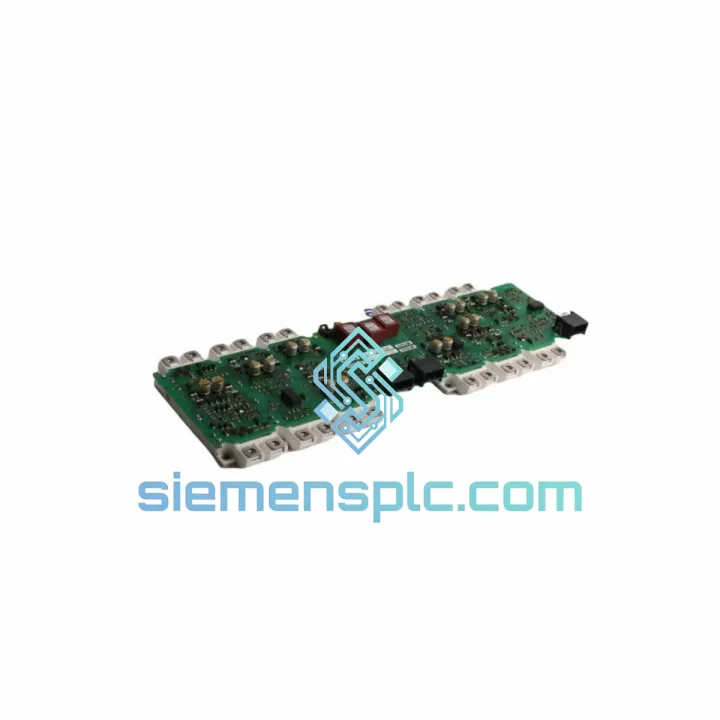

Siemens A5E00714561 FS300R12KE3 IGBT Gate Driver Board

A5E00714561 FS300R12KE3 — Stop the Bleed: Get Your Drive Back Online Before the Next Shift

Your SINAMICS or MASTERDRIVES unit just tripped on an IGBT fault. The motor is dead. The line is down. Every minute you spend waiting for a part is money walking out the door — and in high-throughput environments like steel rolling mills, paper machines, or chemical reactors, that number climbs fast. The Siemens A5E00714561 is the gate driver board that sits between your control intelligence and the FS300R12KE3 power brick. When it fails, nothing moves. We stock it. We ship it today.

The A5E00714561 is the dedicated isolated gate drive PCB for the FS300R12KE3 — Infineon’s 300A / 1200V half-bridge IGBT module deployed across Siemens SINAMICS S120 chassis units, SINAMICS G150 cabinet drives, and legacy MASTERDRIVES MC/VC platforms. This board handles gate signal isolation, desaturation (DESAT) protection, short-circuit detection, and fault feedback to the control unit. Lose this board and the drive is effectively blind — it cannot switch the IGBT, cannot protect the power module, and cannot report fault status upstream. Replacement is non-negotiable.

We operate out of Xiamen, China, with direct DHL and FedEx Express accounts. In-stock units leave the warehouse the same business day. You get a tracking number before you close your laptop. That is the only promise that matters when your production is stopped.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

How to confirm the driver board is the failed component — not the IGBT module itself:

Before ordering, isolate the fault. Power down the drive, discharge the DC bus (wait for the capacitor discharge indicator to clear — minimum 5 minutes on S120 chassis units). Remove the driver board and visually inspect for burnt gate resistors, cracked optocouplers, or discolored PCB areas near the DESAT circuit. If the IGBT module tests good with a diode-mode multimeter check across C-E and G-E junctions, the driver board is your culprit.

Common fault codes that point to A5E00714561 failure:

• F30015 / F30016 — IGBT overcurrent or short-circuit: often triggered by a DESAT circuit that has lost sensitivity or is firing spuriously due to a failed optocoupler on the driver board.
• F30021 — Ground fault detected: can be a false positive when the driver board’s isolation barrier has degraded, causing leakage current to be misread as a ground fault.
• F30024 — Power unit: IGBT temperature sensor fault: the driver board carries the NTC thermistor interface circuit; a failed board can report phantom overtemperature.
• A30029 — Power unit: DC link voltage alarm: in some failure modes, a partially functional driver board causes asymmetric switching, leading to DC bus ripple that triggers this alarm.

Replacement procedure — field notes:

1. Isolate and lock out the drive. Verify DC bus discharge with a calibrated meter — do not rely on the panel indicator alone.
2. Photograph the existing driver board connector orientation before disconnecting. The gate signal connectors on the FS300R12KE3 interface are keyed but the fiber optic or ribbon cable routing varies by cabinet revision.
3. Remove the four M4 mounting screws securing the driver board to the IGBT module. Do not use power tools — the PCB standoffs are plastic and will crack.
4. Inspect the IGBT module gate pins for corrosion or mechanical damage before installing the new driver board. Clean with isopropyl alcohol if needed.
5. Seat the new A5E00714561 firmly and evenly. Torque the M4 screws to 2.5 Nm — under-torquing causes intermittent gate contact; over-torquing cracks the standoffs.
6. No parameter changes are required in the drive CU (CU320-2 or CUMC) after a like-for-like driver board swap. The board carries no firmware or stored parameters.
7. Power up in a controlled sequence: apply 24 V DC control power first, verify no immediate faults on the CU, then enable the main AC supply. Monitor the DC bus charge relay and pre-charge circuit before enabling pulses.
8. Run the drive at low speed (5–10 Hz) under no load for 2–3 minutes. Check for F30015/F30016 recurrence. If clear, ramp to rated speed under load.

Configuration note: The A5E00714561 has no DIP switches, no address settings, and no firmware to flash. It is a purely analog/mixed-signal board. If your drive platform uses fiber optic PWM transmission (MASTERDRIVES with D445 or CUMC boards), verify the fiber optic connectors are fully seated and the TX/RX polarity is correct — a reversed fiber connection will prevent gate pulses from reaching the driver board regardless of board condition.

Reliability in Harsh Conditions

The FS300R12KE3 platform — and the A5E00714561 driver board with it — was designed for the most unforgiving corners of industrial infrastructure. Siemens validated this hardware against the full IEC 60068 environmental stress suite before it ever reached a production drive cabinet.

Vibration is the silent killer of PCB-mounted components. Solder joint fatigue, connector fretting, and component lead cracking are the dominant failure modes in mobile or high-vibration installations such as marine drives, mining hoists, and rail traction auxiliaries. The A5E00714561 uses through-hole construction for its high-stress components — gate resistors, optocouplers, and power supply inductors — specifically to resist vibration-induced solder fatigue that plagues surface-mount-only designs.

Thermal cycling is the second major stressor. In drives that cycle on and off with production shifts, the driver board experiences repeated thermal excursions from ambient to 70°C+ junction temperatures. The conformal coating applied to the PCB prevents moisture ingress during cold-soak periods and resists condensation when the drive cabinet is opened in humid environments — a common scenario in coastal chemical plants and offshore platforms.

Electromagnetic interference from adjacent high-power switching equipment, bus bars, and motor cables is managed through the board’s galvanic isolation architecture. The gate drive signals cross the isolation barrier via high-speed optocouplers rated for >5 kV isolation voltage, ensuring that common-mode transients on the power side do not corrupt the control-side logic or damage the CU320-2 control unit.

Units sourced through siemensplc.com are inspected under 10× magnification for PCB delamination, lifted pads, cracked conformal coating, and component-level damage before dispatch. Refurbished units are powered and tested with gate drive output waveforms verified on an oscilloscope. You receive a board that has been confirmed functional — not one that has simply been cleaned and repackaged.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to Xiamen Gaoqi International Airport and daily DHL and FedEx Express consolidation flights to major global hubs.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Thailand, Malaysia, Indonesia): 2–3 business days via DHL Express
• Europe (Germany, UK, Netherlands, Poland): 3–5 business days via FedEx International Priority
• North America (USA, Canada, Mexico): 3–5 business days via DHL Express Worldwide
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days via FedEx International Priority
• Australia & New Zealand: 4–6 business days via DHL Express
• South America (Brazil, Chile, Argentina): 5–8 business days via FedEx International Priority

Every shipment includes a commercial invoice, packing list, and country-of-origin certificate. HS code 8537.10 is pre-declared for customs clearance. For shipments to the EU, we provide EORI-compatible documentation. For US imports, we provide HTS classification and can support your customs broker with technical product descriptions to avoid misclassification delays.

Parts are packed in anti-static bags, foam-lined inner boxes, and double-wall outer cartons rated for air freight handling. Fragile labels and orientation arrows are applied. We have shipped to 60+ countries without a single transit damage claim on driver board shipments.

For critical downtime situations, contact us directly on WhatsApp for real-time stock confirmation and same-day cutoff times. We will not let a courier cutoff window be the reason your line stays down.
