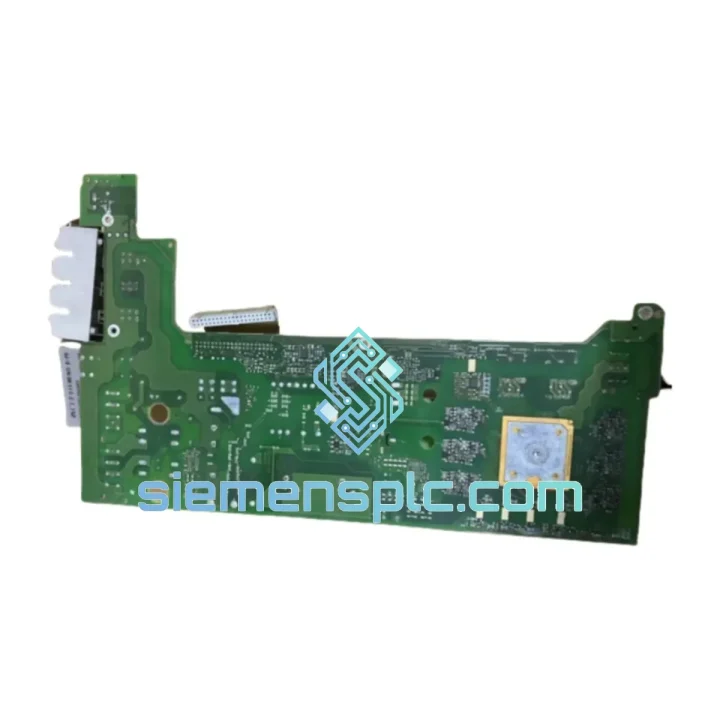

Siemens A5E01161647 Communication Module – SIMATIC S7

Siemens A5E01161647 – SIMATIC S7 Communication Processor: Deterministic Bus Interface for Industrial Control Networks

The A5E01161647 is a Siemens-manufactured communication processor (CP) module engineered for integration within the SIMATIC S7 controller platform. Its primary function is to serve as a dedicated hardware interface between the S7 backplane bus and external industrial networks — offloading protocol-stack processing from the CPU, thereby preserving CPU scan-cycle bandwidth for deterministic process control execution. In high-density automation environments where millisecond-level response latency directly affects process stability, this architectural separation between communication handling and control logic is not optional — it is a fundamental design requirement.

Within the SIMATIC S7 rack architecture, the A5E01161647 occupies a designated module slot and communicates with the CPU via the internal S7 backplane bus, which operates at a fixed, synchronous clock rate. This synchronous coupling ensures that data frames exchanged between the CP module and the CPU are time-deterministic — a property that distinguishes SIMATIC S7 communication modules from generic Ethernet adapters or software-based protocol bridges. The module’s onboard microcontroller handles all protocol framing, error detection, and acknowledgment cycles independently, presenting only validated, application-layer data to the CPU’s process image.

The A5E01161647 is designed to operate continuously in ambient temperatures ranging from 0 °C to +60 °C, with storage tolerance extending to −40 °C / +70 °C. Its PCB assembly conforms to IEC 61131-2 environmental class requirements, incorporating conformal coating on critical signal traces to resist condensation and airborne contaminants common in foundry, chemical, and food-processing environments. The module’s housing is rated for vibration resistance per IEC 60068-2-6 (10–57 Hz, 0.075 mm amplitude; 57–150 Hz, 1g acceleration), making it suitable for installation in mobile equipment and high-vibration machine frames.

From a supply-chain perspective, the A5E01161647 carries Siemens’ standard 12-month manufacturer warranty against defects in materials and workmanship. Units supplied by siemensplc.com are sourced through verified channels with full part traceability, and each unit undergoes visual inspection and label-authenticity verification prior to dispatch from our Xiamen, China facility.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The A5E01161647 implements a dual-processor architecture typical of Siemens CP modules: a primary application processor manages the S7 backplane bus interface and data-buffer arbitration, while a secondary communications processor handles the external network protocol stack in isolation. This separation prevents network-side anomalies — such as broadcast storms, CRC error floods, or bus collisions — from propagating latency jitter into the CPU’s cyclic interrupt (OB1) execution time.

Optical Isolation Architecture: Signal paths between the backplane bus and the external network interface incorporate optocoupler-based galvanic isolation barriers. This isolation stage provides a minimum 500 V DC withstand voltage between the S7 rack ground reference and the field-side network ground, suppressing common-mode noise induced by long cable runs, ground potential differences between cabinets, or switching transients from adjacent variable-frequency drives (VFDs). In practice, this means the module can maintain stable communication even when field-side cable shields are improperly terminated or when the network topology spans multiple electrical zones.

EMC Shielding and Filtering: The module’s PCB layout routes high-frequency signal traces with controlled impedance and incorporates ferrite bead filters on power supply lines entering the communications processor domain. The metal front panel and backplane connector housing form a continuous Faraday enclosure when the module is seated in the rack, attenuating radiated emissions and providing a low-impedance path for ESD discharge events per EN 61000-4-2 Level 3 criteria.

Watchdog and Fault-Safe Logic: An independent hardware watchdog timer monitors the communications processor’s firmware execution cycle. If the processor fails to reset the watchdog within the configured timeout window (typically 100–500 ms, configurable via STEP 7 / TIA Portal), the module asserts a hardware fault signal on the backplane bus, triggering a diagnostic interrupt (OB82) in the CPU. This mechanism ensures that a firmware hang or memory corruption event in the CP module does not silently degrade communication quality — the CPU is notified within one watchdog cycle, enabling the application program to execute a controlled fallback routine.

System Integration Benefits

• CPU Scan-Cycle Protection: By handling all protocol-layer processing on dedicated silicon, the A5E01161647 prevents communication overhead from extending the CPU’s OB1 cycle time, preserving deterministic control loop execution at configured scan rates.
• Transparent Diagnostic Reporting: The module populates standard SIMATIC diagnostic buffers accessible via STEP 7 / TIA Portal, providing timestamped fault records — including bus-off events, CRC error counts, and connection-state transitions — without requiring custom diagnostic programming.
• Hot-Swap Compatibility: Depending on rack configuration and firmware version, the module supports online replacement procedures, reducing planned maintenance windows and eliminating the need for full system shutdown during module exchange.
• Consistent Firmware Ecosystem: As a native Siemens component, the A5E01161647 receives firmware updates through the standard Siemens update channels, ensuring long-term compatibility with TIA Portal project upgrades and CPU firmware revisions.
• Reduced Wiring Complexity: The module’s integrated interface eliminates the need for external protocol converters or gateway devices between the S7 rack and the field network, reducing panel wiring density and potential failure points.
• Scalable Network Topology Support: The CP module’s configuration parameters allow adjustment of bus timing, station address ranges, and retry behavior, enabling deployment across both small-scale machine cells and large distributed control architectures without hardware changes.
• Alarm and Event Synchronization: The module’s time-stamping capability aligns communication events with the CPU’s system clock, enabling accurate sequence-of-events (SOE) reconstruction during post-incident analysis — a requirement in process industries operating under IEC 61511 functional safety frameworks.
• Multi-Master Bus Arbitration: The hardware arbitration logic embedded in the A5E01161647 correctly handles token-passing and bus-access priority in multi-master network configurations, preventing data collisions without software intervention from the CPU application layer.

Quality Assurance & Global Logistics

Every A5E01161647 unit dispatched from siemensplc.com is a genuine Siemens-manufactured component. Our procurement process maintains full part traceability from source to delivery: each unit is accompanied by documentation confirming its manufacturing origin, and physical label markings — including the Siemens part number, date code, and country-of-origin stamp — are verified against Siemens’ published reference standards prior to acceptance into our inventory.

Pre-shipment inspection covers three stages: (1) visual examination of the module housing, connector pins, and PCB edge connectors for mechanical damage or oxidation; (2) label and hologram authenticity verification against known-genuine reference samples; (3) packaging integrity check using anti-static bags and foam-lined cartons rated for international air and sea freight handling per ISTA 2A transit testing protocols.

Logistics operations are managed from our Xiamen, China facility, with direct access to Xiamen Gaoqi International Airport (XMN) and Xiamen Port — two of China’s primary export hubs for industrial components. Standard international shipments are dispatched via DHL Express, FedEx International Priority, or UPS Worldwide Expedited, with typical transit times of 3–7 business days to Europe, North America, Southeast Asia, and the Middle East. For time-critical procurement, same-day dispatch is available for orders confirmed before 14:00 CST. Full export documentation — commercial invoice, packing list, and certificate of origin — is provided with every shipment. HS code classification and customs value declaration are prepared in compliance with the destination country’s import regulations.
