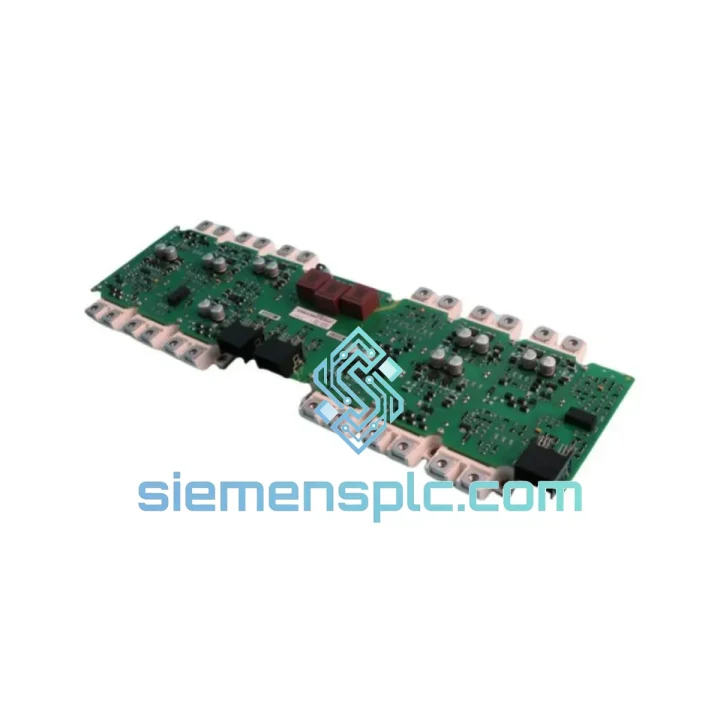

Siemens A5E39021149 Power Unit – SINAMICS Series

Siemens A5E39021149 – DC Bus Power Unit for SINAMICS S120 Multi-Axis Drive Architecture

The A5E39021149 is a Siemens-manufactured power unit designed for integration within the SINAMICS S120 booksize drive family. Its primary function is to condition and distribute DC bus voltage to downstream Motor Modules within a shared-bus multi-axis configuration. In this architecture, a single Line Module rectifies incoming AC supply and feeds a common DC bus rail; the A5E39021149 serves as the intermediary power conditioning and distribution component that ensures stable, low-ripple DC voltage is available to each axis’s Motor Module under dynamic load-sharing conditions.

Unlike standalone variable-frequency drives, the SINAMICS S120 platform separates the rectification, energy storage, and inversion stages into discrete, independently replaceable modules. The A5E39021149 occupies a defined slot in this modular hierarchy, enabling field replacement without disturbing adjacent axis modules or requiring full cabinet shutdown. This architecture is particularly relevant in multi-axis CNC machining centers, servo-driven packaging lines, and coordinated robotic workcells where individual axis replacement must not interrupt the remaining axes.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The A5E39021149 operates within the SINAMICS S120 shared DC bus topology, which imposes specific electrical and timing constraints on the power unit’s internal design. Several hardware-level characteristics are worth examining for engineers evaluating this module for critical applications.

DRIVE-CLiQ Integration and Topology Recognition: The module communicates via DRIVE-CLiQ, Siemens’ proprietary serial bus derived from Fast Ethernet physical layer (100BASE-TX). Each DRIVE-CLiQ node contains an embedded Electronic Rating Plate (ERP) — a non-volatile memory device storing the module’s rated parameters, firmware version, and serial number. Upon power-up, the Control Unit (CU320-2 or equivalent) performs an automatic topology scan, reads each node’s ERP, and validates the physical configuration against the stored project topology. If the A5E39021149 is replaced in the field, the CU will detect the new serial number and prompt a topology acceptance step in STARTER or TIA Portal — a deliberate design choice that prevents silent substitution of mismatched hardware.

DC Bus Capacitor Pre-charge Circuit: To prevent inrush current damage during energization, the module incorporates a controlled pre-charge sequence. A pre-charge resistor network limits the initial charging current to the DC bus capacitor bank. Once the bus voltage reaches approximately 90% of nominal, a bypass contactor closes, short-circuiting the pre-charge resistors and transferring full current-carrying capacity to the main bus bars. This sequence is monitored by the Line Module’s firmware; any failure to reach the pre-charge threshold within a defined time window triggers a fault (F06000 series in SINAMICS diagnostics) and inhibits the drive from enabling.

EMC Design and Shielding Architecture: The module’s PCB layout follows Siemens’ internal EMC zoning guidelines, separating high-frequency switching nodes from low-level signal traces using ground plane segmentation. The DRIVE-CLiQ connector housing is bonded to the module’s chassis ground, providing a low-impedance return path for common-mode noise currents induced by the adjacent power switching stages. For installations in environments with high conducted interference (e.g., near large motor starters or welding equipment), Siemens recommends supplementary line-side EMC filters (e.g., 6SL3000-0BE23-8DA0 series) upstream of the Line Module — the A5E39021149 itself does not contain an integrated line filter.

Thermal Management: The module’s power dissipation is managed through a combination of conduction cooling via the mounting surface and convective airflow across the heatsink fins. The internal NTC thermistor reports real-time junction temperature to the Control Unit via DRIVE-CLiQ. If the measured temperature exceeds the warning threshold (typically 80% of the maximum rated junction temperature), the drive reduces output current in a controlled derating curve rather than triggering an immediate fault — preserving process continuity while alerting the operator through alarm A05006.

System Integration Benefits

• Shared DC Bus Energy Recovery: In multi-axis configurations, regenerative energy from decelerating axes is fed back onto the common DC bus and consumed by accelerating axes in the same cabinet, reducing net energy drawn from the AC supply by up to 30% in coordinated motion profiles.
• Deterministic Fault Isolation: The module’s DRIVE-CLiQ node reports fault codes with millisecond-resolution timestamps, enabling the Control Unit to correlate power-unit events with axis-level faults and isolate root cause without manual oscilloscope measurement.
• Hot-swap Compatible Architecture: With appropriate cabinet design and bus bar isolation, the A5E39021149 can be replaced while adjacent Motor Modules remain powered — a critical capability for 24/7 production environments where full cabinet shutdown is not operationally acceptable.
• Scalable Power Topology: The SINAMICS S120 booksize platform supports parallel Line Modules for higher power requirements. The A5E39021149 integrates into this parallel topology without requiring additional configuration beyond standard STARTER/TIA Portal project parameterization.
• Standardized Spare Parts Inventory: Because the A5E39021149 carries a unique Siemens article number, procurement, receiving inspection, and spare-parts management can be executed against a single unambiguous identifier — eliminating cross-reference errors common with generic third-party equivalents.
• Firmware Consistency: The module’s embedded firmware version is readable via DRIVE-CLiQ and logged in the Control Unit’s service data. This enables maintenance teams to verify firmware consistency across all installed units and plan coordinated firmware updates during scheduled maintenance windows.
• Diagnostic Transparency: SINAMICS S120 provides a structured fault and alarm buffer (accessible via STARTER, TIA Portal, or PROFINET/PROFIBUS acyclic read) that records the last 56 fault events with timestamps, fault values, and drive state at the time of fault — giving maintenance engineers a complete post-mortem dataset without requiring a dedicated data logger.
• Reduced Commissioning Time: Automatic topology recognition via DRIVE-CLiQ eliminates manual address assignment. After physical installation, the Control Unit identifies the A5E39021149, reads its rated parameters, and pre-populates the relevant drive object parameters — reducing commissioning time for replacement units to under 15 minutes in a pre-configured project.

Quality Assurance & Global Logistics

Every A5E39021149 unit supplied by siemensplc.com is sourced through verified Siemens-authorized distribution channels. Siemens AG manufactures this module under ISO 9001:2015 certified production processes at its European facilities, with full material traceability from component procurement through final assembly and functional test.

Before dispatch from our Xiamen, China warehouse, each unit undergoes a structured incoming inspection protocol: visual examination of housing integrity, connector pin condition, and label authenticity; part number verification against the Siemens article database; anti-static packaging in humidity-controlled conditions with desiccant and humidity indicator card; and photographic documentation of the unit’s serial number plate, available on request for your maintenance records.

We do not list remarked, counterfeit, or uninspected components. Units that do not pass incoming inspection are quarantined and not offered for sale.

Logistics: In-stock units ship within 1–3 business days via DHL Express, FedEx International Priority, or UPS Worldwide Expedited — your choice. Export documentation (commercial invoice, packing list, HS code 8537.10) is prepared to facilitate customs clearance in EU, US, Southeast Asian, and Middle Eastern markets. EXW Xiamen, China terms available; CIF and DAP terms on request for volume orders.

All units are covered by a 12-month warranty from the date of dispatch. Warranty claims are handled directly by our technical team; defective units are replaced or credited within 5 business days of confirmed fault diagnosis.
