Siemens A5E42740268 Power Supply Unit – SINAMICS S120

Siemens A5E42740268 Power Supply Unit: DC Bus Architecture and Load Distribution in SINAMICS S120 Multi-Axis Drive Systems

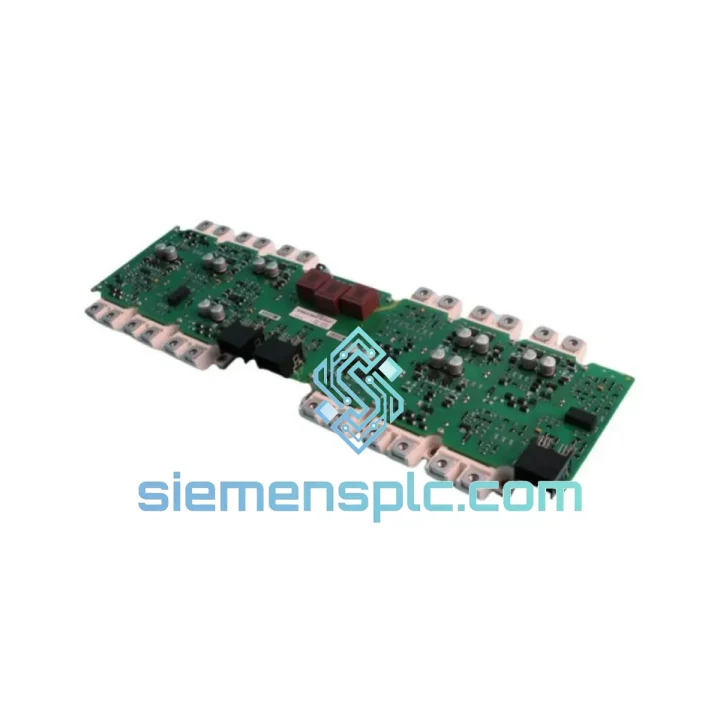

The Siemens A5E42740268 is an internal Power Supply Unit (PSU) engineered specifically for the SINAMICS S120 modular drive platform. Within a multi-axis S120 drive line-up, the PSU occupies a structurally critical position: it converts and conditions the 24 V DC control voltage distributed across the drive line, supplying stable, low-ripple power to the Control Unit (CU), the DRIVE-CLiQ communication backbone, and the auxiliary electronics of each Motor Module. Without a correctly rated and thermally stable PSU, the entire drive group loses its supervisory layer — axis synchronization, safety functions (STO, SS1, SLS), and real-time diagnostics all depend on the uninterrupted 24 V rail this unit maintains.

Unlike generic switching power supplies, the A5E42740268 is designed to operate inside the S120 booksize cabinet environment, where ambient temperatures can reach 55 °C at rated load, airflow is forced and directional, and conducted EMI from adjacent IGBT switching stages is a constant stress factor. The unit’s internal architecture reflects these constraints at the component selection level, not merely at the enclosure level.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

DC Bus Isolation and Noise Rejection: The A5E42740268 employs a galvanically isolated DC-DC conversion stage between the S120 internal bus and the 24 V control rail. This isolation barrier — typically implemented via a transformer-coupled flyback or forward topology — prevents high-frequency switching transients generated by the IGBT modules from coupling into the control electronics. In a booksize drive line with six or more Motor Modules switching at 4–16 kHz, the common-mode noise injected onto the DC bus can exceed 50 V peak; the PSU’s isolation stage attenuates this to levels below the noise immunity threshold of the CU320-2 and CU310-2 control units.

EMC Design at Component Level: Input filtering on the A5E42740268 includes X-capacitors across the input lines and Y-capacitors from each line to the chassis ground plane, forming a π-filter that attenuates differential-mode and common-mode conducted emissions. The PCB layout routes high-current switching loops in tight, low-inductance geometries to minimize radiated emissions from the board itself. Ferrite beads on the output lines suppress residual high-frequency content before it reaches the DRIVE-CLiQ transceivers, which are sensitive to noise above 10 MHz.

Thermal Management Architecture: The unit is dimensioned for continuous operation at 55 °C ambient without derating the output current, provided the S120 cabinet’s forced-air cooling system maintains the specified airflow velocity across the drive line. Internal component selection — particularly the electrolytic capacitors on the output stage — uses 105 °C-rated parts with calculated MTBF values that align with the S120 system’s 20,000-hour design life target. Capacitor aging under thermal stress is the primary long-term failure mode for PSUs of this class; Siemens addresses this through conservative voltage derating (capacitors operated at 60–70 % of rated voltage) and low-ESR part selection to minimize self-heating.

Redundancy Arbitration Logic: In S120 configurations where a redundant 24 V external supply is connected in parallel with the internal PSU via ORing diodes or active ORing MOSFETs, the A5E42740268’s output impedance is matched to allow seamless load sharing without oscillation between the two sources. The unit’s output voltage is set slightly below the external supply nominal to ensure the external supply takes priority under normal conditions, with the PSU acting as a hot-standby source that assumes full load within one switching cycle upon external supply failure.

System Integration Benefits

• Deterministic 24 V Rail Stability: The regulated output maintains ±1 % voltage accuracy across the full load range (10 %–100 %), ensuring that the CU’s real-time processor and its peripheral I/O cards receive a supply voltage within the specified operating window at all times, preventing spurious resets or undefined logic states during load transients.
• DRIVE-CLiQ Bus Integrity: DRIVE-CLiQ operates at 100 Mbit/s full-duplex over a proprietary physical layer. The transceivers in each S120 component require a supply voltage within ±5 % of 3.3 V or 5 V (depending on the generation). A PSU with poor load regulation or high ripple directly degrades the eye diagram of the DRIVE-CLiQ signal, increasing bit error rates and causing intermittent axis faults (F07900 series) that are difficult to diagnose without an oscilloscope.
• Safety Function Availability: STO (Safe Torque Off), SS1 (Safe Stop 1), and SLS (Safely Limited Speed) are implemented in the S120’s safety processor, which draws its supply from the 24 V control rail. A PSU dropout of more than 20 ms will trigger a safety fault and require a manual acknowledgment sequence before the drive can restart — a significant productivity impact in continuous-process applications. The A5E42740268’s hold-up time is designed to bridge typical mains dips without triggering this fault.
• Diagnostic Transparency: The S120 system monitors the 24 V rail voltage via the CU’s analog input channel dedicated to supply supervision. Voltage deviations outside the ±15 % tolerance band generate alarm A05900 and, if sustained, fault F05901, with a timestamp logged in the drive’s fault buffer. This allows maintenance engineers to correlate PSU degradation events with production anomalies in the historian data.
• Reduced Wiring Complexity: As an internal PSU, the A5E42740268 eliminates the need for an external 24 V DIN-rail power supply and the associated wiring, fusing, and terminal block space in the control cabinet. This simplifies the cabinet layout, reduces potential failure points in the 24 V distribution wiring, and shortens commissioning time.
• Thermal Co-optimization with Drive Line: Because the PSU shares the S120 drive line’s forced-air cooling path, its thermal performance is co-optimized with the Motor Modules and Line Module. There is no need to calculate separate thermal budgets for an external PSU or to provide additional ventilation for a DIN-rail supply mounted elsewhere in the cabinet.
• Direct OEM Replacement: The A5E42740268 is a factory-matched replacement part. Substituting a non-OEM PSU in an S120 drive risks incompatibility with the output impedance matching required for redundant supply configurations, and may void the S120 system’s CE declaration of conformity, which covers the complete drive assembly as a unit.
• Firmware and Hardware Revision Traceability: Each Siemens OEM PSU carries a hardware revision code on its label that is logged by the CU during DRIVE-CLiQ topology detection. This allows the Siemens TIA Portal and STARTER commissioning tools to verify hardware compatibility and flag mismatches before they cause runtime faults — a capability that is unavailable with non-OEM replacement parts.

Quality Assurance & Global Logistics

Every A5E42740268 unit dispatched from our Xiamen, China facility is an authentic Siemens OEM component procured through verified industrial supply channels. Prior to shipment, each unit undergoes a three-stage inspection: visual examination of OEM labeling, housing integrity, and connector condition; electrical verification of output voltage under a representative load; and packaging inspection to confirm anti-static and moisture-barrier protection is intact.

Shipments originate from Xiamen and reach major industrial hubs on the following typical transit schedules: Southeast Asia 2–4 business days, Europe 5–8 business days, North America 5–7 business days, Middle East 4–6 business days. Carriers used include DHL Express, FedEx International Priority, UPS Worldwide Express, and SF Express for regional destinations. All shipments include a commercial invoice with the correct HS code (8504.40 for static converters) to facilitate customs clearance. Export documentation, including a certificate of origin and packing list, is provided as standard. For orders requiring an IEC test report or Siemens factory certificate of conformance, these can be arranged upon request prior to shipment.

A 12-month warranty covers manufacturing defects and functional failures under normal operating conditions as defined in the SINAMICS S120 Hardware Installation Manual. Warranty claims are processed with a target response time of 48 hours from receipt of the defective unit at our facility.
