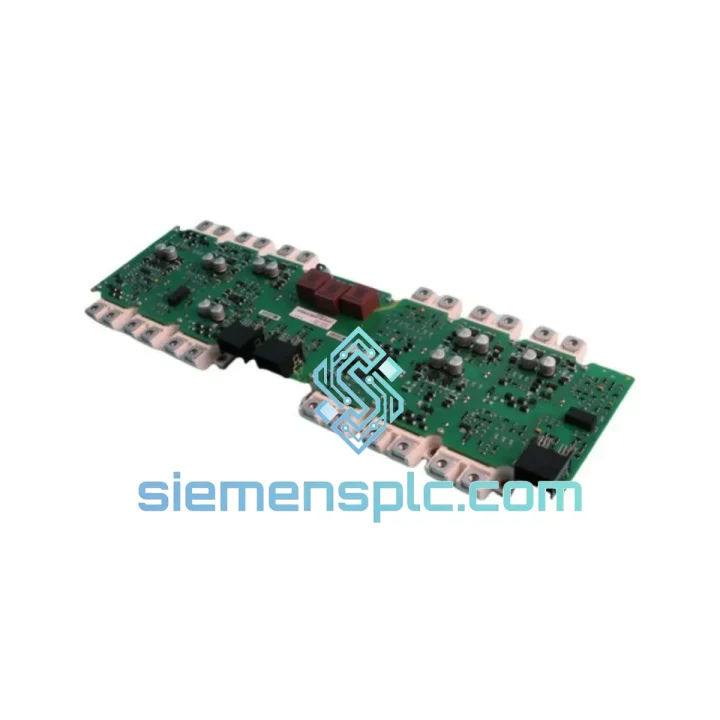

Siemens A5E42881731 DC Power Supply Module – SINAMICS S120

Siemens A5E42881731 – Regulated DC Bus Power Unit for SINAMICS S120 Booksize Drive Architecture

The A5E42881731 is a factory-original DC power supply module manufactured by Siemens AG, engineered specifically for integration within the SINAMICS S120 booksize and SIMOTION D drive platforms. Its primary function is to receive rectified DC bus voltage from an upstream line module and distribute stable, low-ripple DC power to downstream motor modules — single-axis or double-axis — within a shared DC bus topology. The module operates as a passive power distribution node with integrated diagnostic capability via the DRIVE-CLiQ serial interface, enabling real-time status monitoring through Siemens TIA Portal or STARTER commissioning environments.

In high-cycle manufacturing environments — CNC machining centers, servo press lines, multi-axis packaging machines — DC bus stability directly determines torque reproducibility and positioning accuracy. Voltage ripple exceeding design thresholds introduces harmonic disturbances that propagate through the motor module’s PWM stage, degrading current regulation bandwidth. The A5E42881731 addresses this by maintaining bus voltage within tight tolerance bands under dynamic load transients, a requirement that becomes critical when multiple motor modules share a common DC rail and regenerative braking energy must be absorbed or redistributed without bus overvoltage trips.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The A5E42881731 operates within the SINAMICS S120 booksize power section as a DC bus distribution and conditioning node. Unlike an active line module — which performs AC-to-DC rectification with active front-end (AFE) control — this module functions downstream of the rectification stage, managing DC bus integrity across the motor module array.

DC Bus Capacitor Bank Architecture: The module incorporates a distributed capacitor bank that serves dual functions: bulk energy storage to buffer load transients during motor acceleration/deceleration cycles, and high-frequency decoupling to attenuate switching noise generated by the IGBT-based motor modules. The capacitor bank is sized to maintain bus voltage within ±3 % of nominal during step-load changes, preventing nuisance overvoltage or undervoltage faults in adjacent motor modules.

EMC Design — Conducted Emission Suppression: The module’s PCB layout follows Siemens’ internal EMC partitioning rules: power and signal ground planes are separated with a single-point star connection, minimizing common-impedance coupling. Ferrite bead arrays on the DC bus output rails attenuate high-frequency switching transients (typically 4–16 kHz PWM harmonics) before they propagate to the bus bar. This design approach achieves EN 61800-3 Category C2 compliance without external line filters in standard cabinet configurations.

DRIVE-CLiQ Diagnostic Node: Each SINAMICS component equipped with DRIVE-CLiQ participates in the drive topology as an addressable node. The A5E42881731 reports module temperature, DC bus voltage, and fault status to the Control Unit (CU320-2 or equivalent) at the DRIVE-CLiQ cycle rate (typically 125 µs or 250 µs, configurable). This enables the CU to execute protective shutdown sequences — such as safe torque off (STO) or controlled ramp-down — before thermal or electrical limits are exceeded, rather than relying on hardware overcurrent trips alone.

Thermal Management: The module’s power dissipation path relies on the chassis-mounted fan unit (e.g., Siemens fan-and-capacitor module) to maintain airflow across the heatsink fins. Internal NTC thermistors monitor junction temperature at multiple points; if airflow is interrupted, the DRIVE-CLiQ node raises a thermal warning (alarm A30031 or equivalent) before triggering a fault shutdown, giving the control system time to execute a controlled stop rather than an emergency trip.

System Integration Benefits

• Zero-modification drop-in replacement: The A5E42881731 matches the original MLFB mechanical and electrical footprint precisely. No firmware re-parameterization is required when replacing a failed unit in an existing S120 booksize chassis — the CU auto-detects the module via DRIVE-CLiQ topology scan on power-up.
• Deterministic DC bus voltage regulation: Stable bus voltage is a prerequisite for accurate current control in the motor modules. By maintaining bus ripple within specification, this module preserves the current controller’s bandwidth, directly supporting positioning repeatability in servo axes — critical for CNC and press applications where dimensional tolerance is measured in micrometers.
• Integrated fault diagnostics via DRIVE-CLiQ: Fault codes, warnings, and module status are accessible in real time through TIA Portal’s drive diagnostics panel or STARTER. Maintenance engineers can identify the root cause of a drive fault — whether thermal, electrical, or mechanical — without physical inspection of the cabinet, reducing mean time to repair (MTTR).
• Shared DC bus energy recovery: In multi-axis systems where regenerative axes (e.g., a descending Z-axis) feed energy back to the DC bus, the A5E42881731’s capacitor bank absorbs and redistributes this energy to motoring axes, reducing net energy drawn from the line module. This lowers peak demand on the upstream supply and reduces braking resistor duty cycle.
• Scalable architecture support: The booksize form factor allows engineers to add motor modules to an existing chassis without redesigning the power distribution section. The A5E42881731 supports incremental system expansion within the rated bus current envelope, protecting the original capital investment in the line module and chassis infrastructure.
• Compliance with functional safety requirements: When integrated with a CU that supports Safety Integrated functions (SIL 2 / PLd per IEC 62061 / ISO 13849-1), the power module participates in the safe state architecture. The DRIVE-CLiQ link carries safety-relevant status data, enabling the CU to verify module readiness before releasing motion — a requirement in collaborative robot cells and guarded machine zones.
• Reduced spare-parts inventory complexity: Because the A5E42881731 is a standard Siemens OEM part with a fixed MLFB, procurement teams can maintain a single spare unit to cover multiple machine lines using the same S120 booksize architecture, rather than stocking application-specific assemblies.
• Long-term availability and support: Siemens maintains product lifecycle documentation for SINAMICS S120 components through the Industry Online Support portal. Firmware compatibility matrices, parameter manuals, and hardware installation guides are publicly accessible, ensuring that maintenance engineers have authoritative reference material throughout the product’s service life.

Quality Assurance & Global Logistics

Every A5E42881731 unit supplied by siemensplc.com is sourced as genuine Siemens OEM stock. Each unit undergoes a structured pre-shipment verification process: visual inspection of housing, label, and connector integrity; authenticity cross-check against Siemens part number databases; and electrical continuity verification of the DRIVE-CLiQ interface pins. Units are packaged in anti-static ESD shielding bags, placed in foam-lined corrugated cartons rated for international air freight handling, and sealed with tamper-evident tape.

Shipments originate from our warehouse in Xiamen, China. Standard export documentation — commercial invoice, packing list, and certificate of origin — is prepared for each order. For customers requiring CE declarations or Siemens product datasheets, these are provided electronically upon request. Typical dispatch time is 1–3 business days from order confirmation. International delivery via DHL Express or FedEx International Priority reaches most destinations in Asia, Europe, and North America within 3–7 business days. For bulk procurement (>5 units), sea freight consolidation and T/T wire transfer payment terms are available upon request.

All units carry a 12-month warranty from the date of shipment. In the event of a confirmed manufacturing defect, we coordinate return merchandise authorization (RMA) and replacement dispatch. Our technical team — with direct experience in Siemens SINAMICS commissioning and fault diagnosis — provides pre-sales compatibility verification and post-sales installation guidance at no additional charge.
