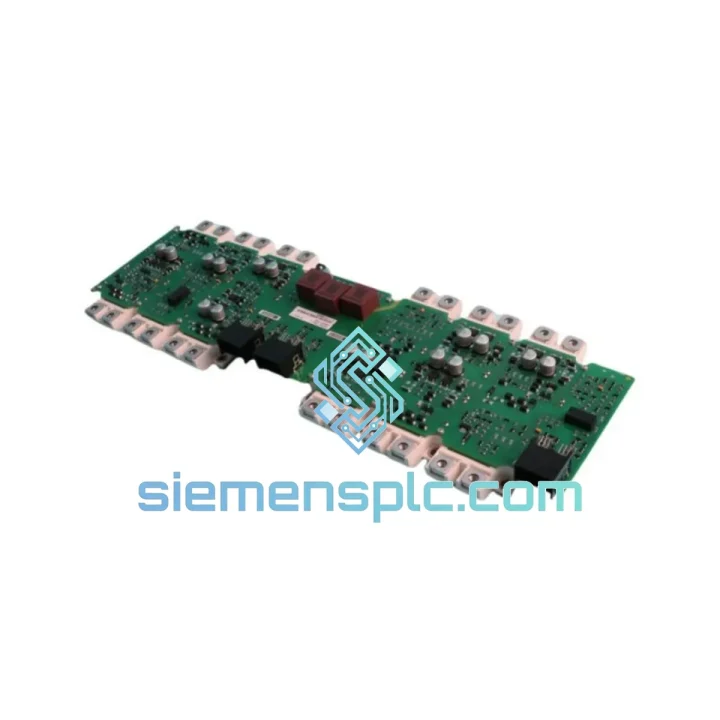

Siemens A5E44574249 Power Supply Unit

Siemens A5E44574249 Power Supply Module – Stop the Clock on Your Downtime

Every minute your line is down, you’re bleeding money. A failed power supply unit in a SINAMICS S120 or SIMATIC control cabinet doesn’t wait for business hours — and neither do we. The Siemens A5E44574249 is a precision-engineered PSU built for the exact voltage regulation and load stability demands of Siemens drive and PLC architectures. We stock it in Xiamen, we ship it today, and it lands at your facility before your maintenance window closes.

This isn’t a generic replacement. It’s the OEM module — same firmware baseline, same connector footprint, same thermal envelope. Slot it in, configure the address, and your system is back online. That’s the only outcome that matters on a production floor.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on Siemens drive systems, here’s what actually trips people up when swapping the A5E44574249:

1. Fault Code F30003 / F30004 Before Replacement
These DC link undervoltage faults are the most common symptom of a degraded PSU in SINAMICS S120 systems. Before condemning the module, verify your incoming AC supply is within spec and check for loose terminal connections at X1/X2. A marginal PSU will often pass a cold-start test but fail under load — run the drive at 80% rated current for 10 minutes before signing off.

2. DRIVE-CLiQ Topology Acceptance
The A5E44574249 communicates over DRIVE-CLiQ. After physical swap, the CU320-2 or CU310-2 control unit will detect a topology change and throw alarm A01007. This is expected. Navigate to Commissioning → Topology → Accept Actual Topology in STARTER or Startdrive. Do not skip this step — running with a topology mismatch will cause intermittent F01375 faults under dynamic load.

3. Firmware Version Matching
Check the firmware version of your Control Unit before installing. If your CU is running firmware < V4.7, verify compatibility with the PSU hardware revision stamped on the module label (HW revision is printed as “HW: Ax” on the rating plate). Mismatched hardware/firmware combinations can cause the PSU to fail BIST at power-on, presenting as a blank display with no fault code — a notoriously difficult symptom to diagnose without this knowledge.

4. 24 VDC Bus De-energization Protocol
When replacing the PSU in a live cabinet with other loads on the 24 V bus, de-energize the bus completely before disconnecting the old module. Hot-swapping 24 V on a shared bus can cause voltage spikes that damage PROFIBUS/PROFINET interface cards downstream. After main contactor open: wait minimum 5 minutes for DC link capacitors to bleed down before touching any terminals.

5. DIP Switch / Rotary Address Settings
If your installation uses a distributed I/O configuration (ET 200SP or ET 200MP), confirm the station address DIP switches on the new module match the outgoing unit exactly. Photograph the old module before removal — this takes 10 seconds and saves 2 hours of re-commissioning.

Reliability in Harsh Conditions

Industrial environments don’t care about your maintenance schedule. The A5E44574249 is built to Siemens’ IEC 61800-5-1 safety standard for drive power electronics, validated against the conditions that actually kill electronics in the field:

• Vibration: Tested to IEC 60068-2-6 (sinusoidal, 10–500 Hz, 1g) and IEC 60068-2-64 (random vibration). The conformal-coated PCB and mechanically secured connectors maintain contact integrity on machine tools and compressor skids where vibration is continuous and relentless.
• Thermal Cycling: Rated for 0–55 °C continuous operation with short-term excursions to 70 °C. Internal thermal management prevents hot-spot formation on primary switching transistors — the most common failure mode in cheaper PSU alternatives.
• Humidity & Condensation: Conformal coating provides protection against humidity up to 95% RH (non-condensing), per IEC 60068-2-78. Critical for coastal facilities, food processing plants, and environments with wash-down cycles near the control cabinet.
• EMC Immunity: Designed to EN 61000-6-2 (industrial immunity), including 4 kV surge immunity on the AC input. Your PSU won’t fail from a nearby motor start transient or a utility switching event.
• Mechanical Shock: Validated to IEC 60068-2-27 (15g, 11 ms half-sine). Survives transport and installation without pre-conditioning failures.

Global Express Logistics

Our Xiamen warehouse is positioned specifically for fast international dispatch. Here’s exactly how the process works from the moment you confirm your order:

• Same-Day Dispatch: Orders confirmed before 14:00 CST ship the same business day. Orders after 14:00 ship next morning. No exceptions.
• DHL Express: Primary carrier for most destinations. Transit times: Southeast Asia 1–2 days, Europe 3–5 days, North America 3–5 days, Middle East 3–4 days, South America 5–7 days.
• FedEx International Priority: Available on request for US, EU, and AU destinations where FedEx has stronger last-mile coverage.
• Export Documentation: Commercial Invoice, Packing List, and Certificate of Origin prepared for every shipment. HS Code 8504.40 pre-declared. EUC or import license support available — contact us 48 hours before your required ship date.
• ESD Packaging: Every A5E44574249 ships in a sealed anti-static bag inside a rigid foam-lined carton. The module arrives in the same condition it left our warehouse.
• Tracking: AWB number sent within 2 hours of dispatch. Real-time tracking link provided via email immediately.

If your plant is down and you need the fastest possible delivery, call or WhatsApp us directly. We’ll check the next available flight out of Xiamen Gaoqi International and give you a confirmed delivery window before you commit.
