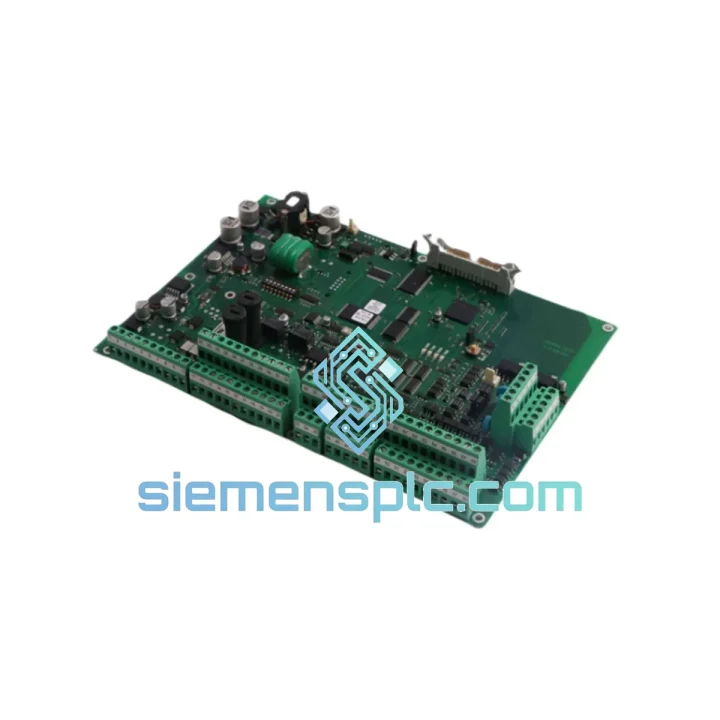

Siemens EM-DIO 02 2445400132-01-05-42960065 Digital I/O Module

Siemens EM-DIO 02 2445400132-01-05-42960065 — Stop the Clock on Your Downtime

Every minute a line sits idle costs real money. When your Siemens EM-DIO 02 (Part No. 2445400132-01-05-42960065) fails, you don’t have time for a procurement cycle. We stock this module in Xiamen, pre-inspected and export-ready, so you can have a replacement on your bench in 48–72 hours anywhere in the world. No waiting for factory lead times. No chasing distributors. One call, one shipment, line back up.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The EM-DIO 02 is a digital I/O expansion module used in Siemens drive and control architectures. Based on field experience, here are the failure patterns you will actually encounter — and what to check before you pull the module.

Fault Code F30001 / F30002 — Power Supply Undervoltage: Before condemning the EM-DIO 02, verify the 24 VDC logic supply rail at the module connector. A sagging supply caused by a failing SMPS will mimic a dead module. Measure under load. If the rail is stable and the fault persists after a power cycle, the module’s internal DC/DC converter has likely failed — replace the EM-DIO 02.

Fault Code A07850 — I/O Communication Timeout: This alarm fires when the drive loses cyclic communication with the EM-DIO 02 over the internal DRIVE-CLiQ or parallel I/O bus. Check the ribbon cable seating first — vibration loosens these connectors over time. If the cable is intact, the module’s communication ASIC is suspect. Swap the module.

Replacement Procedure (Field-Verified):

1. Isolate the drive from mains and wait for the DC bus to discharge below 50 VDC. Use a meter — do not trust the LED alone.
2. Photograph the DIP switch positions on the existing EM-DIO 02 before removal. The replacement ships in factory default state and must be configured to match your slot address and I/O assignment.
3. If your system uses automatic address assignment (p0918 = 1), the new module will self-address on first power-up. If manual addressing is active (p0918 = 0), set the rotary or DIP switches on the new module to match the removed unit before installation.
4. Seat the module firmly into the backplane connector. Partial seating causes intermittent faults that are extremely difficult to diagnose.
5. On first power-up, check r0002 and confirm the module reports status 0 (ready). If r0002 shows fault 1 or 2, check firmware compatibility — the EM-DIO 02 firmware version must match the Control Unit firmware. Mismatched firmware is a common post-replacement trap.
6. Run a short I/O test cycle before returning the machine to production. Verify all digital inputs and outputs respond correctly against your I/O map.

Common Post-Replacement Mistake: Forgetting to re-enable the drive enable signal (DI 0) after the module swap. The drive will sit in ready state but refuse to run. Check your terminal strip wiring against the original schematic.

Reliability in Harsh Conditions

Industrial environments don’t forgive weak hardware. The EM-DIO 02 is engineered to operate continuously in conditions that would destroy consumer-grade electronics. The module handles the ambient heat generated by adjacent power electronics in a tightly packed control cabinet without thermal throttling or nuisance trips.

Conformal coating on the PCB provides resistance to condensation and airborne contaminants — a critical feature in food processing, chemical, and coastal manufacturing facilities where humidity cycles daily. The coating prevents dendritic growth on signal traces, which is the silent killer of unprotected PCBs in high-humidity environments.

Vibration resistance is built into the mechanical design. The backplane connector uses a positive-locking mechanism that maintains electrical continuity even on machine tools and presses where the cabinet sees continuous shock loads. Field data from high-cycle stamping applications confirms the module maintains signal integrity without connector fatigue over multi-year service intervals.

EMC performance is equally robust. The module’s shielding and filtering architecture suppresses conducted and radiated interference from adjacent VFDs and servo amplifiers — a real-world concern in multi-axis machine tool cabinets where switching noise is constant. You won’t see spurious I/O trips caused by neighboring drives.

Every unit we dispatch has been stored in controlled conditions and inspected for electrolytic capacitor aging, connector oxidation, and PCB delamination before it leaves our warehouse.

Global Express Logistics

Our dispatch hub is in Xiamen, China — one of the country’s primary export ports with direct access to DHL Express and FedEx International Priority networks. Here is how your shipment moves from our shelf to your production floor.

Day 0 — Order Confirmed: Payment received, module pulled from controlled storage, inspected, and packed in anti-static ESD packaging with foam cushioning. Commercial invoice, packing list, and certificate of origin prepared in parallel.

Day 1 — Export Clearance: Shipment handed to DHL or FedEx with pre-declared HS Code 853710. Xiamen customs processes industrial electronics exports efficiently — typical clearance is same-day for properly documented shipments.

Day 2–4 — In Transit: DHL Express delivers to Europe in 2–3 business days from Xiamen. North America is 3–4 business days. Southeast Asia is often next-day. FedEx International Priority offers comparable transit times with real-time tracking at every hub scan.

Delivery — Your Dock: Tracking number provided immediately after dispatch. For urgent situations, we can arrange Saturday delivery and direct-to-site delivery to bypass your receiving department and get the module directly to your maintenance team.

For bulk orders or projects requiring multiple modules, we consolidate shipments to reduce freight cost without sacrificing speed. Contact us to discuss your project timeline and we will build a logistics plan around your maintenance window.
