Siemens FUM210 6DP1210-8AA DCS Digital Input Module – TELEPERM M

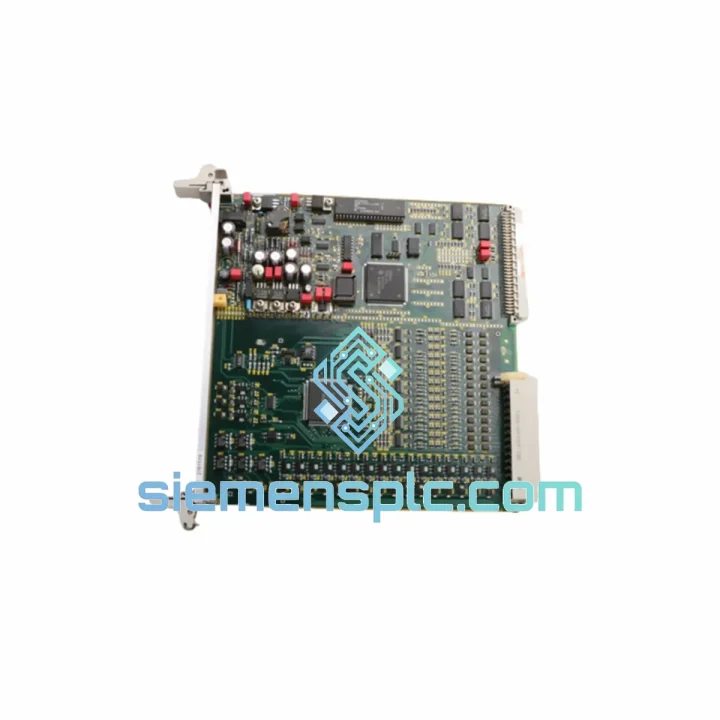

Siemens FUM210 6DP1210-8AA — 16-Channel Binary Input Module for TELEPERM M Distributed Control Systems

The FUM210, ordered under part number 6DP1210-8AA, is a 16-channel binary digital input module engineered specifically for the Siemens TELEPERM M distributed control system (DCS) platform. Within a TELEPERM M automation station (AS230 or AS235), the FUM210 occupies a standard Euro-card subrack slot and serves as the primary interface between field-level discrete signals and the central processing unit’s control logic. Its role in the control loop is unambiguous: it acquires binary state data from field devices — limit switches, relay contacts, pushbutton stations, and proximity sensors — and delivers that data to the CPU via the PROFIBUS-based internal backplane bus at each scan cycle. Without a correctly functioning FUM210, the automation station loses visibility into the discrete process states it is designed to supervise and control.

TELEPERM M installations remain operational across power generation, chemical processing, pulp and paper, and heavy metallurgical industries. Many of these facilities operate on 20- to 30-year maintenance cycles, making the availability of verified OEM replacement modules a direct operational necessity rather than a procurement preference. The FUM210 6DP1210-8AA is stocked and dispatched from Xiamen, China, with full export documentation and international express logistics.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Optocoupler Isolation Architecture: Each input channel on the FUM210 routes the field signal through a dedicated optocoupler stage before the signal reaches the module’s internal logic layer. This galvanic barrier serves two distinct engineering functions. First, it eliminates ground potential differences between field wiring and the backplane — a common source of spurious signal states in industrial environments where cable runs span multiple earthing zones. Second, it attenuates high-frequency transients and inductive switching spikes generated by relay coils, solenoid valves, and motor contactors. The optocoupler’s response time is fast enough to capture signal transitions within the TELEPERM M scan cycle without introducing latency artifacts into the binary state data.

Backplane Bus Arbitration: The FUM210 communicates with the AS230/AS235 CPU via the TELEPERM M internal PROFIBUS segment. The module does not initiate bus transactions autonomously; it responds to cyclic polling from the CPU master. This master-slave arbitration model ensures deterministic data delivery — the CPU receives a complete, time-consistent snapshot of all 16 channel states at each poll interval. The polling cycle is configured at the automation station level, typically between 100 ms and 500 ms depending on total I/O load and CPU processing capacity. The FUM210’s onboard logic latches channel states between polls, preventing transient signal states shorter than the latch window from propagating as false data to the control program.

EMC Design Considerations: The module’s PCB layout follows Siemens’ TELEPERM M EMC guidelines, with signal traces routed to minimize loop area and reduce susceptibility to radiated interference. The front connector and subrack backplane connector are mechanically keyed to prevent incorrect insertion, which also ensures consistent ground bonding between the module chassis and the subrack frame — a structural element of the overall EMC enclosure. In environments with high electromagnetic field density (switchgear rooms, motor control centers), the TELEPERM M subrack cabinet provides additional shielding, and the FUM210’s isolation architecture ensures that field-side interference does not couple into the backplane bus.

LED Diagnostic Layer: Each of the 16 input channels has a dedicated status LED visible from the module front panel. The LED state directly reflects the optocoupler output — it illuminates when the channel logic state is HIGH (contact closed or 24 V DC present). This hardware-level diagnostic capability allows maintenance personnel to verify field wiring continuity and signal state without connecting test instruments or accessing the operator station. Module-level faults (power supply failure, internal logic error) are reported to the AS230/AS235 CPU via the backplane, which then propagates the fault to the TELEPERM M operator station for alarm annunciation.

System Integration Benefits

• Zero-Reconfiguration Replacement: The FUM210 6DP1210-8AA is a direct plug-in replacement for any failed FUM210 card in an AS230 or AS235 subrack. No software reconfiguration, address reassignment, or CFC block modification is required — the automation station recognizes the module by slot position and resumes normal operation immediately after insertion.
• Deterministic Scan Cycle Integration: Because the FUM210 operates as a PROFIBUS slave responding to CPU polling, its data delivery is fully synchronous with the automation station’s configured scan cycle. This eliminates the timing uncertainty associated with asynchronous I/O architectures and ensures that binary state changes are captured within a known, bounded time window — a prerequisite for process interlock and safety shutdown logic.
• Diagnostic Transparency at Two Levels: Channel-level LED indicators provide immediate physical-layer diagnostics at the module face, while module-level fault reporting via the backplane delivers structured diagnostic data to the operator station. This two-tier diagnostic architecture reduces mean time to repair (MTTR) by allowing maintenance teams to isolate faults to the channel or module level without system-level diagnostic tools.
• High Channel Density per Slot: With 16 binary inputs per Euro-card slot, the FUM210 delivers a high I/O density relative to its physical footprint. In large TELEPERM M installations with hundreds of discrete input points, this density directly reduces subrack slot consumption, cabinet space requirements, and total module count — all of which affect system lifecycle cost.
• Field Wiring Compatibility: The FUM210 accepts both 24 V DC active signals and potential-free contact closures on the same module, without requiring external signal conditioning relays for mixed field device types. This wiring flexibility simplifies panel design and reduces the component count in marshalling cabinets.
• Long-Term Platform Continuity: TELEPERM M installations are maintained on extended lifecycle schedules, often 15 to 30 years beyond initial commissioning. The FUM210’s continued availability as a verified OEM component allows plant operators to sustain system integrity without migrating to a new DCS platform — a migration that would require complete I/O rewiring, software re-engineering, and operator retraining.
• Subrack Hot-Swap Capability: The FUM210 is designed for plug-in replacement within the TELEPERM M subrack without requiring a full system shutdown. This characteristic is critical in continuous-process industries where planned outages are scheduled months in advance and unplanned downtime carries significant production cost.
• Consistent Signal Timing Across Channel Groups: The FUM210’s onboard logic latches all 16 channel states simultaneously at each poll event, ensuring that the CPU receives a time-consistent snapshot of the entire input group. This simultaneous sampling eliminates inter-channel skew — a relevant consideration in applications where multiple binary inputs represent the sequential states of a single mechanical process (e.g., multi-position valve feedback).

Quality Assurance & Global Logistics

Genuine Siemens Origin: The FUM210 6DP1210-8AA units stocked at siemensplc.com are sourced from verified OEM channels, including decommissioned plant inventories and authorized surplus distributors. Each unit carries the original Siemens part number label and date code. Part number and revision markings are cross-referenced against Siemens TELEPERM M documentation prior to listing.

Pre-Dispatch Inspection Protocol: Every FUM210 unit undergoes a structured inspection sequence before dispatch: visual examination of PCB, front connector pins, and backplane edge connector for mechanical damage or corrosion; LED indicator continuity check; and functional verification of the module’s power-on self-test response where test equipment is available. Units that do not pass inspection are not dispatched.

ESD-Safe Packaging: Modules are individually sealed in anti-static ESD bags and placed in foam-padded cartons sized to prevent movement during transit. For multi-unit orders, cartons are consolidated and reinforced for international freight handling.

12-Month Warranty: All FUM210 6DP1210-8AA units are covered by a 12-month replacement warranty against functional defects and manufacturing failures. Warranty claims are processed via direct communication with our technical team — no third-party RMA process.

International Express Logistics from Xiamen, China: Orders are dispatched via DHL Express, FedEx International Priority, or UPS Worldwide Express from our Xiamen warehouse. Standard dispatch lead time is 1 to 3 business days from order confirmation. Full export documentation — commercial invoice, packing list, and HS code declaration — is provided with every shipment. Customs clearance support is available for destinations with complex import requirements.

Export Compliance: All shipments comply with applicable Chinese export regulations and destination country import requirements. HS code classification is provided for customs purposes. For orders requiring specific export documentation (e.g., end-user certificates or country-of-origin certificates), contact our team prior to order placement.
