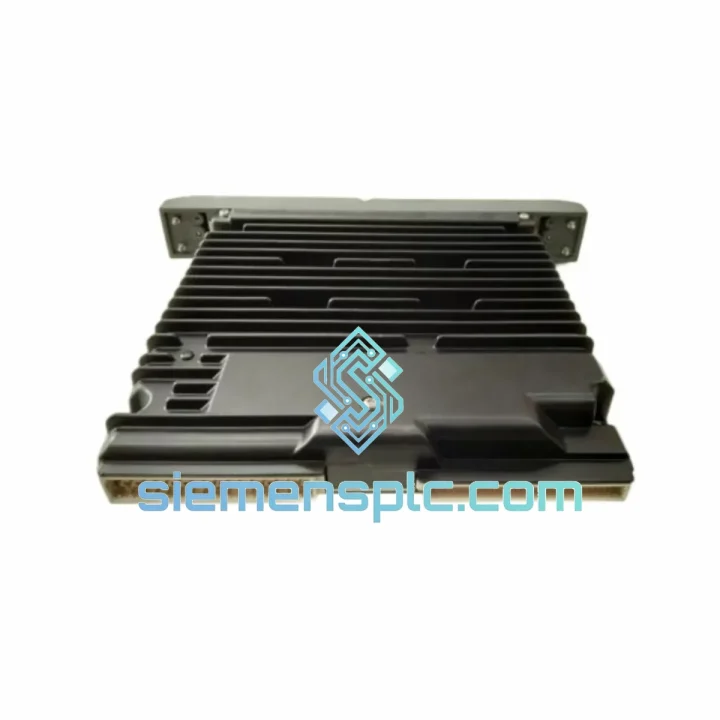

Siemens QLSAMBAN Safety Application Module

Siemens QLSAMBAN — When Your Safety Loop Is in Bypass, Delivery Speed Is the Only Spec That Matters

A QUADLOG Safety Application Module failure does not announce itself at a convenient time. It happens mid-shift, mid-campaign, or mid-turnaround — and the moment your SIS enters bypass mode, every hour carries a measurable cost: regulatory exposure, insurance liability, and production loss that no post-incident report can recover. The QLSAMBAN is not a module you find sitting on a regional distributor’s shelf. Most suppliers will quote you 8 to 14 weeks. We quote you a tracking number.

Our Xiamen facility holds physical QLSAMBAN units in sealed OEM packaging. Each unit is verified against part number, firmware revision, and physical condition before dispatch. Orders confirmed before 14:00 CST ship the same business day. That is the only lead time that matters when your process is down.

⚡ URGENT REQUIREMENT? Contact us immediately:
📧 [email protected] | 📱 WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Field replacements that go wrong almost always fail at the same four decision points. Here is how to navigate each one without losing additional time.

Step 1 — Decode the fault before pulling the card. The QUADLOG system status display gives you the fault classification. Four codes point directly at the SAM hardware:

• SAM PROCESSOR FAULT: Internal CPU error; module has latched outputs to safe state. Attempt one controlled power cycle. If the fault re-latches within two scan cycles, the module is confirmed failed. Do not wait for a second opinion — initiate the replacement order now.
• BACKPLANE COMM LOSS (SAM): Before condemning the module, reseat it and inspect the card-edge connector for contamination or bent pins. This fault originates from a connector issue in roughly one-third of cases. Confirm the fault persists after reseating before placing an order.
• WATCHDOG TIMEOUT: Do not assume hardware failure. Open the QUADLOG configurator and verify application scan time. A recent logic change that increased scan time past the watchdog threshold produces this fault with no hardware defect present. Confirm scan time is within specification before condemning the SAM.
• DUAL-CPU DIVERGENCE: In redundant SAM configurations, force a re-sync from the engineering workstation. If divergence persists after three attempts, the standby SAM is the failed unit. The primary is maintaining control — you have time to get the replacement in transit before the next maintenance window.

Step 2 — Back up the application before touching the rack. Connect the QUADLOG engineering workstation and upload the current application image to a verified storage location. If the faulted SAM is completely unresponsive, pull the image from your last validated backup archive. A blank replacement SAM requires a full application download before it can participate in the safety system — there is no auto-recovery from factory state.

Step 3 — Slot position is the module address. The QLSAMBAN carries no DIP switches or rotary address selectors. Its logical address is defined entirely by its physical rack slot as configured in the QUADLOG application. Install the replacement in the exact slot vacated by the failed module. Any other slot generates a CONFIGURATION MISMATCH fault on startup and the system will refuse to go online.

Step 4 — Firmware revision must match your system software version. A mismatch between the replacement SAM firmware and the QUADLOG system executive produces a FIRMWARE VERSION MISMATCH fault — the system will not go online. When you contact us, provide your QUADLOG system software version. We verify the firmware revision of the unit before dispatch. This step is not optional and it is not skipped.

Step 5 — Download, validate, release. After physical installation, download the validated application from the engineering workstation. Run a full system diagnostic. Confirm every I/O module reports HEALTHY. For SIL 3 loops, your Functional Safety Management Plan likely requires a partial proof test before the loop returns to automatic mode. Do not compress this step under schedule pressure — it is the step that keeps your SIL certification valid.

Hot-swap note for redundant configurations: If only the standby SAM has failed and the primary is maintaining control, a hot replacement is mechanically possible. Verify this is permitted under your site Management of Change procedure before proceeding. After installation, force synchronization from the engineering workstation and confirm the standby achieves HEALTHY status before closing the work order.

Reliability in Harsh Conditions

The QUADLOG platform was not designed for a climate-controlled server room. It was designed for the environments that destroy commercial-grade hardware within 18 months — and the QLSAMBAN reflects that design intent at the component level.

Humidity and corrosion resistance: Conformal coating is applied to every PCB assembly as a production standard, not an optional upgrade. In coastal refineries, offshore topsides, and tropical chemical plants where salt-laden humidity is a daily operating condition, conformal coating is the difference between a module that runs for a decade and one that develops corrosion-induced intermittent faults within two years. The 95% RH non-condensing rating is not a laboratory ceiling — it is a continuous operating specification.

Thermal performance: The 60 °C operating ceiling reflects the thermal reality of a fully populated QUADLOG rack inside a non-air-conditioned marshalling cabinet in a Middle Eastern or Southeast Asian installation. Component selection and PCB thermal design are matched to this ceiling, not to a 25 °C laboratory ambient. Derating curves are not required within the specified operating range.

Vibration and mechanical integrity: Sustained low-frequency vibration from nearby rotating machinery — reciprocating compressors, centrifugal pumps, gas turbines — is a constant in most process plant environments. The QLSAMBAN’s card-edge connector design and front-panel locking mechanism maintain electrical continuity under these conditions without requiring periodic re-seating or additional mechanical retention hardware.

EMI resilience through dual-CPU cross-check: In high-EMI environments — motor control centers, VFD panels, high-voltage switchgear rooms — transient interference can corrupt a single processor’s execution without triggering any external alarm. The QLSAMBAN’s cross-check mechanism catches processor divergence caused by EMI events and drives outputs to safe state in a controlled, predictable manner. This is the architecture that TÜV auditors expect to see in SIL 2 and SIL 3 applications, and it is the architecture that prevents both spurious trips and missed trips in electrically noisy plant environments.

Critical spare suitability: Units stored in anti-static ESD packaging within the specified storage temperature range maintain full functionality for extended periods. The QLSAMBAN is a sound investment for a site-level or corporate-level critical spare program — particularly for facilities where the cost of a single unplanned shutdown exceeds the cost of maintaining a spare by several orders of magnitude.

Global Express Logistics

Our stock is held in Xiamen, Fujian Province — a primary Chinese export hub with direct access to international freight lanes through Xiamen Gaoqi International Airport. This location is deliberate: it provides faster transit times to most global destinations than suppliers based in inland China or Western Europe.

Typical express transit times from Xiamen:

• Southeast Asia (Singapore, Malaysia, Thailand, Indonesia, Vietnam): DHL / FedEx Express — 2 to 3 business days door-to-door.
• Middle East (UAE, Saudi Arabia, Qatar, Kuwait, Oman): FedEx International Priority / DHL Express — 3 to 5 business days.
• Europe (Germany, Netherlands, UK, France, Italy, Spain): DHL Express / FedEx International Priority — 4 to 6 business days.
• North America (USA, Canada, Mexico): FedEx International Priority — 3 to 5 business days to major gateway cities.
• Australia & New Zealand: DHL Express — 4 to 6 business days.
• India & South Asia: FedEx / DHL — 3 to 5 business days.

Every shipment includes a complete export documentation package: commercial invoice, packing list, Certificate of Origin, and Certificate of Conformance. For destinations requiring import permits or end-user declarations for industrial automation equipment, we advise at order confirmation — not after the shipment is already in transit. Tracking numbers are issued within 24 hours of dispatch.

Packaging is specified for the journey: the QLSAMBAN ships sealed in an anti-static ESD bag, nested in foam-lined corrugated carton. For long-haul routes, a humidity indicator card is included so your incoming inspection team has a verifiable record of the transit environment — a requirement under many quality management systems for safety-critical components.

Contact Information

Email: [email protected]
WhatsApp: +86 18359268345
Web: siemensplc.com
Location: Xiamen, China
