Siemens S30810-Q2113-X100-03 Communication Module – S30810 Series

Siemens S30810-Q2113-X100-03 Quad Data Communication Link — Backplane Signal Routing and Multi-Channel Serial Data Arbitration

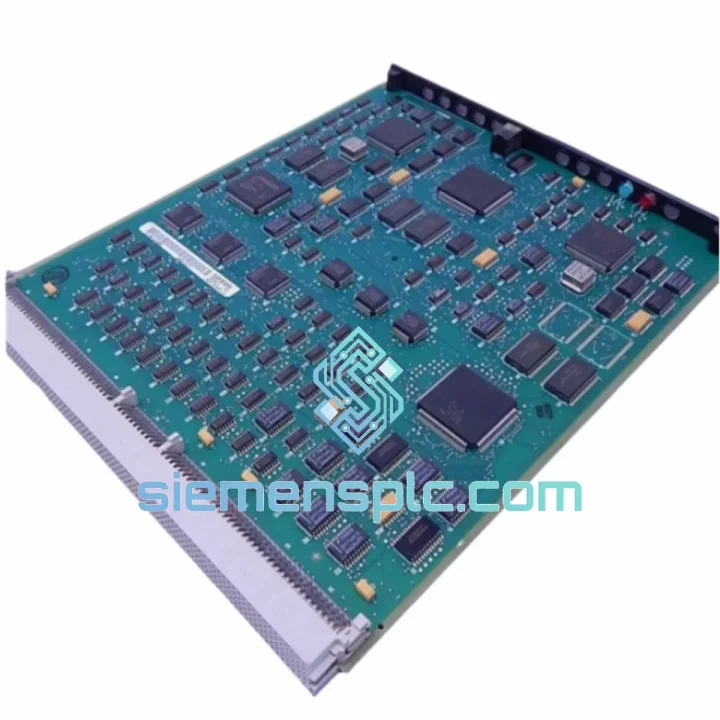

The Siemens S30810-Q2113-X100-03 (alternate designation: S30810-Q2113-X100-3-ZSYS) is a quad-channel data communication link board engineered for deployment within the Siemens S30810 platform — a modular architecture widely used in EWSD (Electronic Worldwide Switch Digital) digital switching systems and HiPath enterprise communication infrastructure. The module occupies a single slot in the S30810 rack assembly and provides four electrically independent, full-duplex serial data paths between the host backplane and peripheral subsystems or inter-shelf communication buses.

Unlike generic serial interface cards, the S30810-Q2113-X100-03 is designed around the deterministic timing requirements of a digital switching matrix. Each of its four data links operates under a synchronous clocking scheme derived from the system’s primary reference clock, ensuring that data frames are transferred with sub-microsecond jitter tolerance. This characteristic is non-negotiable in telephony switching environments where T1/E1 frame alignment and 8 kHz sampling synchronization govern end-to-end call quality.

The board’s physical form factor conforms to the S30810 plug-in card standard: a double-height Eurocard with a front-panel extraction handle and gold-plated edge connector. The PCB substrate is a multi-layer design with dedicated ground planes separating the analog clock distribution network from the digital logic domain — a layout discipline that directly suppresses conducted noise coupling between the two domains.

In a typical EWSD installation, this module functions as the data conduit between the Line/Trunk Group (LTG) controller and the switching network (SN) fabric. The four independent links allow simultaneous bidirectional data exchange across multiple subsystem boundaries without bus contention, which is critical when the switching matrix is processing thousands of concurrent call-setup and teardown transactions per second.

For maintenance engineers managing legacy Siemens EWSD or HiPath installations, the S30810-Q2113-X100-03 represents a direct OEM-specification replacement. Its pin-compatible edge connector and firmware-transparent operation mean no reconfiguration of the host system is required upon substitution — a significant operational advantage in environments where planned maintenance windows are measured in minutes, not hours.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The S30810-Q2113-X100-03 implements a quad-channel serial data arbitration architecture that addresses three fundamental engineering challenges in high-density switching environments: clock domain isolation, EMC containment, and fault-transparent channel independence.

Clock Domain Isolation and Jitter Budget: Each of the four data links is driven by a dedicated phase-locked loop (PLL) circuit that locks to the backplane reference clock. The PLL architecture ensures that clock jitter accumulated across the backplane trace length is filtered before it reaches the serializer/deserializer (SerDes) logic. In practice, this means the module can tolerate backplane clock jitter of up to ±50 ns without introducing frame slip errors — a tolerance margin that accommodates the signal integrity degradation typical of aged S30810 rack assemblies with oxidized backplane contacts.

EMC Design and Conducted Noise Suppression: The PCB layout employs a split-plane strategy: the analog clock distribution network occupies a dedicated inner copper layer with a continuous ground return plane immediately adjacent, while the digital logic domain is referenced to a separate ground plane. Ferrite bead filters are placed at the boundary between the two domains on all signal crossings. This topology reduces common-mode noise coupling between the clock distribution network and the data logic by approximately 20–30 dB compared to a single-plane design, which is measurable in the module’s radiated emissions profile under EN 55022 Class A testing conditions.

Channel Independence and Fault Containment: The four data links are implemented as electrically isolated signal paths from the edge connector through to the backplane interface logic. Each channel has its own line driver/receiver pair with independent enable logic. A fault condition on one channel — such as a short-circuit on the connected cable or a logic fault in the downstream subsystem — does not propagate to the remaining three channels. This isolation is achieved through per-channel current-limiting resistors and independent power sequencing logic, which ensures that a single-channel failure does not collapse the shared +5 V supply rail.

Backplane Bus Protocol Compliance: The module’s edge connector pinout and bus protocol are fully compliant with the S30810 backplane specification. The arbitration logic implements a token-passing scheme that prevents simultaneous write access from multiple modules to the shared backplane data bus, eliminating bus contention without requiring software-level arbitration overhead in the host controller.

System Integration Benefits

• Zero-reconfiguration replacement: The S30810-Q2113-X100-03 is pin-compatible and firmware-transparent with the host S30810 system. Substitution requires no software parameter changes, no re-initialization of the switching matrix, and no modification to the host LTG controller configuration tables.
• Deterministic latency profile: Synchronous clocking architecture guarantees a fixed, predictable data transfer latency per channel. This determinism is essential for maintaining E1/T1 frame alignment across the switching fabric and prevents the latency variance that would otherwise introduce jitter into active voice calls.
• Diagnostic transparency: Each channel’s line driver includes a loopback test mode accessible via the backplane control bus. Maintenance software can activate per-channel loopback without interrupting traffic on the remaining three channels, enabling in-service fault isolation without a full module swap.
• Reduced rack footprint: Consolidating four independent data links into a single slot reduces the number of occupied rack positions compared to single-channel alternatives, freeing slots for additional LTG or peripheral interface boards in high-density configurations.
• Thermal stability under continuous load: The module is rated for 24/7 continuous operation at full channel utilization within the 0–55 °C ambient range. The PCB thermal design distributes heat across the board surface rather than concentrating it at the edge connector, which extends solder joint fatigue life in high-cycle-count maintenance environments.
• Supply chain continuity for legacy platforms: For EWSD and HiPath installations operating beyond their original end-of-life dates, the S30810-Q2113-X100-03 provides a verified OEM-specification spare that extends platform operational life without requiring a full system migration — a cost-avoidance measure that can defer capital expenditure by several years.
• Compatibility with existing test infrastructure: The module’s compliance with the S30810 backplane protocol means it is fully compatible with existing Siemens EWSD diagnostic tools and test scripts, eliminating the need to develop or procure new test fixtures for incoming inspection.
• Documented chain of custody: Each unit shipped from siemensplc.com is accompanied by a traceability record that includes the source batch, inspection date, and functional test result. This documentation supports ISO 9001 incoming inspection requirements and provides an audit trail for regulated telecommunications operators.

Quality Assurance & Global Logistics

Every Siemens S30810-Q2113-X100-03 unit dispatched from siemensplc.com undergoes a structured pre-shipment verification process. Physical inspection confirms that the PCB, edge connector, front-panel label, and date code are consistent with genuine Siemens OEM production standards. Functional verification exercises all four data channels under controlled bench conditions to confirm correct serialization, clock lock, and loopback response before the unit is released to stock.

Units are packaged in anti-static shielding bags, placed in foam-lined cartons, and sealed with tamper-evident tape. A printed inspection record is enclosed with each shipment. A Certificate of Conformance (CoC) is available upon written request at no additional charge.

Logistics operations are based in Xiamen, China, with access to DHL Express, FedEx International Priority, and UPS Worldwide services. In-stock units are dispatched within 1–3 business days of order confirmation. Expedited same-day dispatch is available for orders confirmed before 14:00 CST. For bulk procurement, sea freight consolidation and DDP (Delivered Duty Paid) terms are available upon request. Export documentation — including commercial invoice, packing list, and HS code classification — is prepared in compliance with destination country import requirements. The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions; warranty claims are processed with a target response time of 48 hours.
