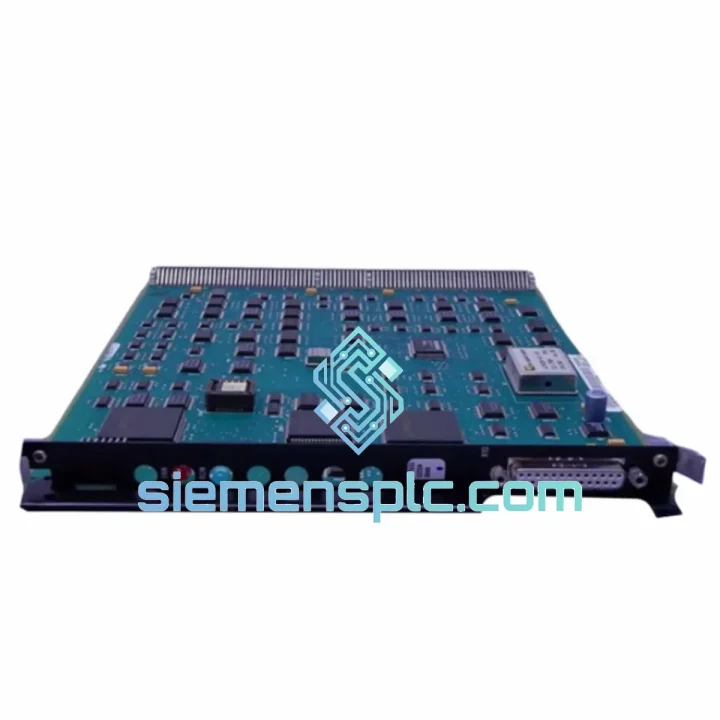

Siemens S30810-Q2224-X000-07 — Station Line Interface Module for HiPath ZSYS Communication Platforms

The S30810-Q2224-X000-07 is a subscriber station line interface module manufactured by Siemens AG for deployment within the HiPath ZSYS modular communication architecture. Its primary function is to terminate analog subscriber loops at the system backplane, converting 2-wire POTS signaling into the internal TDM bus format used by HiPath switching fabrics. Each module slot in a ZSYS chassis handles a defined block of subscriber ports; the S30810-Q2224-X000-07 occupies one such slot and provides the SLIC (Subscriber Line Interface Circuit) functions — battery feed, overvoltage protection, ringing, supervision, codec, and hybrid — collectively referred to as the BORSCHT specification in ITU-T G.100 terminology.

In a live HiPath 3000 or 4000 deployment, this module sits between the analog terminal equipment and the system’s central call processor. When a subscriber goes off-hook, the module detects the DC loop closure via its SLIC, encodes the audio at 8 kHz / 8-bit PCM (G.711 A-law or μ-law selectable), and places the digitized stream onto the backplane TDM highway for routing. Ringing is generated locally by the module’s ring generator circuit, typically at 25 Hz / 75 Vrms, eliminating the need for a centralized ring bus in smaller chassis configurations. This distributed ringing architecture reduces backplane current demand and isolates ring-voltage transients from the logic supply rails.

The alternate part designation S30810-Q2224-X-7-ZSYS encodes the module’s revision level and series classification within Siemens’ structured part numbering scheme. The suffix “-07” corresponds to a specific hardware revision that introduced improved loop current regulation and enhanced longitudinal balance — both critical for installations where subscriber loop lengths exceed 3 km or where the cable plant runs in proximity to power infrastructure generating 50/60 Hz interference.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The S30810-Q2224-X000-07 implements a distributed SLIC topology rather than a centralized codec bus. Each subscriber port is served by a dedicated SLIC IC, meaning a fault on one port — caused by a wiring short, lightning surge, or terminal equipment failure — is electrically isolated from adjacent ports at the silicon level. The SLIC’s internal protection clamps handle transient voltages up to the ITU-T K.21 enhanced category, providing a first line of defense before energy reaches the backplane logic.

The -07 hardware revision introduced a redesigned loop current regulator with tighter output impedance control across the 0–1,800 Ω loop resistance range. Earlier revisions exhibited measurable feed current droop at loop resistances above 1,200 Ω, causing marginal operation on long rural loops. The revised regulator maintains feed current within ±5% of the nominal setpoint across the full specified loop range, improving return loss and sidetone performance on extended cable plants.

EMC performance is addressed through board-level filtering and physical layout discipline. The ringing voltage generation circuit — operating at elevated AC voltage — is physically segregated from the PCM codec and backplane interface sections by a ground-plane partition. Differential-mode filtering on the subscriber pair interface attenuates common-mode noise ingress from the cable plant before it reaches the codec input stage. This layout approach achieves the longitudinal balance figure of ≥ 46 dB, which is 4–6 dB better than the baseline ZSYS module specification.

The backplane connector uses a high-density, keyed edge design with gold-plated contacts rated for a minimum of 200 insertion cycles. Contact geometry maintains reliable electrical connection under the vibration levels specified in IEC 60068-2-6 (10–55 Hz, 0.35 mm amplitude), relevant for industrial facilities where floor-transmitted vibration is present.

System Integration Benefits

• Deterministic TDM slot assignment: Each module occupies a fixed TDM highway slot defined by its chassis position, eliminating software-driven port arbitration and ensuring sub-millisecond, jitter-free audio path establishment for every subscriber port.
• Per-port fault isolation: The distributed SLIC architecture confines electrical faults to the affected port. The system processor receives a discrete fault status bit per port via the backplane diagnostic bus, enabling precise fault localization without taking the entire module offline.
• Hot-swap compatible chassis support: In ZSYS chassis configurations that support live insertion, the module can be replaced without powering down the chassis, reducing maintenance windows to the time required for physical swap and software re-registration — typically under 3 minutes.
• Transparent diagnostic reporting: The module exposes port-level status registers (loop current, ringing state, off-hook detection, ground fault) to the HiPath system manager, enabling proactive maintenance before subscriber-reported faults occur.
• Backward compatibility across HiPath generations: The ZSYS slot and backplane protocol are consistent across HiPath 3000 V6–V9 and HiPath 4000 V3–V6, allowing the S30810-Q2224-X000-07 to serve as a common spare across multiple system generations in a mixed-vintage installed base.
• Simplified spare-parts inventory: A single module type covers all analog station line positions in the ZSYS chassis, eliminating the need to stock port-count variants. Procurement teams maintain one SKU as the universal analog line spare.
• Regulatory compliance: The module carries CE marking and meets EN 60950-1 / IEC 62368-1 electrical safety requirements, a prerequisite for deployment in regulated telecommunications environments across the EU and many export markets.
• Extended platform lifecycle: Siemens’ modular ZSYS design allows individual modules to be replaced independently of the chassis and processor, extending the economic life of the overall system without requiring a full platform migration.

Quality Assurance & Global Logistics

Every S30810-Q2224-X000-07 unit dispatched from our Xiamen facility is a genuine Siemens-manufactured component sourced through verified supply channels. Pre-shipment inspection covers visual examination of PCB surfaces, connector contacts, and label markings; cross-reference of the part number silkscreen against the Siemens part database; and functional continuity verification of the backplane connector pins. Each unit is packed in anti-static ESD shielding bags with foam-lined cartons rated for international air and sea freight handling.

Xiamen’s position as a major port city in Fujian Province — with direct access to Xiamen Gaoqi International Airport and Xiamen Port — enables competitive transit times: 3–5 business days to Southeast Asia, 5–7 business days to the Middle East and Europe via air freight, and 7–14 business days via express sea-air combined routing. All international shipments include a commercial invoice, packing list, and certificate of origin. Additional export documentation — Form E (ASEAN), EUR.1 (EU), FORM A (GSP) — can be arranged upon request. The 12-month warranty covers manufacturing defects and is supported by our technical team in Xiamen.
