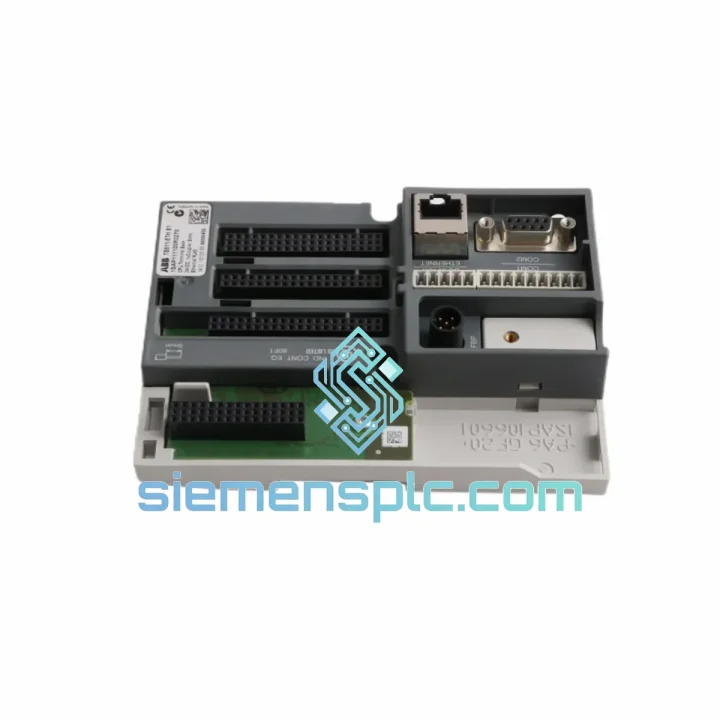

Siemens TB511-ETH 1SAP111100R0270 PLC Terminal Base – AC500 Series

Siemens TB511-ETH 1SAP111100R0270: Ethernet-Integrated CPU Terminal Base for AC500 Distributed Control Architecture

The TB511-ETH 1SAP111100R0270 occupies a structurally critical position within the AC500 control node: it is the physical substrate upon which the CPU module seats, the electrical conduit through which 24 V DC power is distributed to all downstream I/O expansion modules, and the network gateway through which the entire control node communicates with supervisory systems. Unlike passive backplane designs found in older PLC generations, the TB511-ETH integrates an active Ethernet interface directly into the terminal base layer, eliminating the need for a dedicated communication module and reducing panel footprint by one module slot width — typically 40 mm on a DIN rail assembly.

In a distributed I/O topology, the terminal base arbitrates S-Bus traffic between the CPU and up to seven expansion I/O modules. The S-Bus internal cycle time is sub-millisecond, ensuring that analog and digital field signals are sampled and written within the CPU’s deterministic scan cycle without introducing latency artifacts. This architecture is particularly relevant in closed-loop control applications — flow control, pressure regulation, temperature PID loops — where input-to-output latency directly affects process stability margins.

The integrated RJ45 Ethernet port supports simultaneous multi-protocol operation: PROFINET IO, Modbus TCP, EtherNet/IP, and FTP coexist on the same physical interface, managed by the CPU firmware’s protocol stack. This eliminates the protocol-specific hardware constraints common in legacy fieldbus architectures and allows a single control node to interface with SCADA systems, HMI panels, and peer PLCs across heterogeneous network environments without additional hardware investment.

Field wiring connects directly to the terminal base’s screw-terminal or spring-clamp I/O blocks, which remain mechanically and electrically intact when the CPU module is extracted. This hot-swap architecture is a deliberate design decision: in high-availability installations — continuous process plants, water treatment facilities, power distribution substations — the ability to replace a CPU module without interrupting field signal continuity or requiring panel re-wiring reduces mean time to repair (MTTR) from hours to minutes.

The TB511-ETH 1SAP111100R0270 is rated for operation across a -25°C to +70°C ambient temperature range, with storage capability down to -40°C. This thermal envelope accommodates outdoor enclosures in temperate and sub-arctic climates without supplemental heating. The module carries IP20 ingress protection, CE, UL, cUL, ATEX Zone 2, IECEx, DNV, and GL certifications, making it deployable across onshore industrial facilities, marine vessels, offshore platforms, and hazardous-area Zone 2 installations without hardware substitution.

Vibration and shock performance is qualified to IEC 60068-2-6 (sinusoidal vibration) and IEC 60068-2-27 (mechanical shock), enabling installation on mobile machinery, rail-mounted equipment, and high-vibration compressor skids where standard DIN-rail PLCs would require additional damping measures.

📦 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The TB511-ETH’s internal architecture separates three distinct functional planes: the power distribution plane, the S-Bus communication plane, and the Ethernet network plane. This three-plane separation is not merely a logical abstraction — it is implemented in hardware through isolated PCB layers and dedicated power regulators for each plane, which directly contributes to the module’s EMC performance.

On the EMC front, the terminal base employs capacitive decoupling on all 24 V DC input lines, transient voltage suppression (TVS) diodes rated to IEC 61000-4-5 (surge immunity, 2 kV line-to-earth), and common-mode chokes on the Ethernet interface to suppress high-frequency noise injected from adjacent variable-frequency drives (VFDs) or contactor switching transients. The RJ45 port includes integrated magnetics with 1500 V isolation, meeting IEEE 802.3 isolation requirements and providing galvanic separation between the control network and the field power domain.

The S-Bus backplane connector uses a gold-plated, vibration-tolerant edge connector rated for a minimum of 100 mating cycles, with a mechanical keying system that prevents incorrect I/O module orientation. Signal integrity on the S-Bus is maintained through controlled-impedance PCB traces (100 Ω differential) and termination resistors at both ends of the backplane, preventing reflections that would corrupt high-speed data frames at sub-millisecond cycle rates.

The hot-swap CPU socket incorporates a staged power sequencing circuit: when a CPU module is inserted, the 3.3 V logic rail is energized before the 24 V field power rail, preventing inrush current spikes from corrupting I/O module state registers. This sequencing is managed by a dedicated supervisory IC on the terminal base, independent of the CPU firmware — meaning the field I/O state is preserved and the S-Bus continues to operate in a safe hold-last-value mode during CPU extraction and re-insertion.

System Integration Benefits

• Deterministic Scan Cycle Preservation: The S-Bus internal cycle time of <1 ms ensures that I/O data refresh does not become the bottleneck in fast PID or motion-adjacent control loops, maintaining CPU scan cycle determinism at configured rates down to 1 ms.
• Single-hardware Multi-protocol Flexibility: PROFINET IO, Modbus TCP, and EtherNet/IP operate concurrently on the same RJ45 port, allowing the control node to serve as a PROFINET IO controller to field devices while simultaneously reporting to a Modbus TCP SCADA — without additional communication modules or protocol converters.
• Zero-rewiring CPU Replacement: Field wiring terminations on the I/O expansion modules remain undisturbed during CPU hot-swap, reducing MTTR in critical process environments and eliminating the risk of wiring errors introduced during maintenance.
• Scalable I/O Expansion to 512 Points: Seven local I/O expansion slots, combined with distributed I/O via PROFINET, allow a single TB511-ETH-based node to address up to 512 digital or analog I/O points within a unified engineering namespace.
• Integrated Diagnostics Transparency: The Ethernet interface exposes module-level diagnostics — supply voltage status, I/O module communication faults, CPU temperature — via PROFINET alarm frames and Modbus TCP diagnostic registers, enabling SCADA systems to display granular fault data without requiring a separate diagnostic tool connection.
• Wide Thermal Operating Range for Harsh Environments: The -25°C to +70°C operational range eliminates the need for panel heaters in most outdoor European and North Asian climates, reducing panel BOM cost and eliminating a potential failure point in the thermal management system.
• Hazardous Area Deployment Without Hardware Substitution: ATEX Zone 2 and IECEx certification allows the same hardware SKU to be deployed in both standard and Zone 2 hazardous areas, simplifying spare parts inventory management for multi-site operators.
• Marine and Offshore Certification: DNV and GL type approval enables direct use in marine automation applications — engine room control, ballast management, cargo monitoring — without requiring additional third-party certification testing.
• Long-term Platform Commitment: The AC500 platform roadmap ensures hardware and firmware support continuity, with spare parts availability committed through 2030+, reducing lifecycle risk for long-duration infrastructure projects.
• Reduced Panel Footprint: Integrating the Ethernet interface into the terminal base eliminates one communication module slot, saving approximately 40 mm of DIN rail space — a meaningful reduction in compact control panel designs.

Quality Assurance & Global Logistics

Every TB511-ETH 1SAP111100R0270 unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment inspection protocol. Visual inspection confirms label integrity, order code accuracy (1SAP111100R0270), and absence of physical damage. Hardware revision codes are logged against the shipment record. Where applicable, serial numbers are cross-referenced against manufacturer databases to verify authenticity and exclude counterfeit or remarked units.

Shipments from Xiamen reach major industrial hubs on the following typical transit schedules: Southeast Asia 2–4 business days (DHL/FedEx express), Europe 4–6 business days (DHL Express or TNT Priority), North America 4–7 business days (FedEx International Priority), Middle East and Africa 5–8 business days. All shipments include commercial invoice, packing list, and CE Declaration of Conformity. Export classification and HS code documentation are prepared for customs clearance in destination countries.

Each unit is shipped in anti-static packaging with foam cushioning rated to withstand the mechanical shock levels specified in ISTA 2A transit testing. A 12-month warranty covers manufacturing defects from the date of dispatch. Dead-on-arrival (DOA) units are replaced within 7 business days of confirmed fault report, with return shipping costs covered for verified DOA cases.
