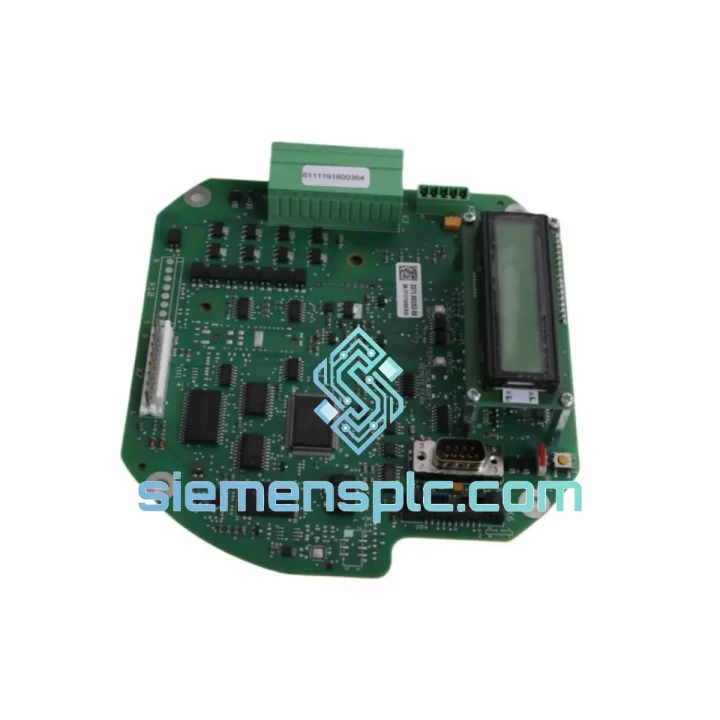

SIPOS 2SY5010-1LB05 Electronic Control Card – 2SY5010 Series

SIPOS 2SY5010-1LB05: Core Signal Processing Board in Electric Actuator Control Architecture

The SIPOS 2SY5010-1LB05 is the primary electronic control card embedded within the SIPOS 2SY5010 series multi-turn electric actuator platform. Its function is not peripheral — it sits at the intersection of position feedback acquisition, motor drive command generation, and fieldbus signal arbitration. When this board fails, the actuator loses its ability to interpret setpoint commands, execute torque-limited travel, or report diagnostic status upstream. Understanding its internal architecture is prerequisite to any competent maintenance or procurement decision.

The 2SY5010 series was engineered for continuous-duty valve automation in process-critical environments: power station steam bypass systems, refinery isolation valves, water treatment flow gates, and chemical reactor feed controls. Within this platform, the 2SY5010-1LB05 variant designates a specific firmware and hardware revision of the main control PCB, governing the actuator’s closed-loop positioning behavior and self-diagnostic routines. The suffix -1LB05 encodes the control variant and interface configuration — buyers must match this suffix precisely to avoid incompatibility with existing wiring and parameter sets.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 2SY5010-1LB05 board integrates three functional domains on a single PCB substrate, each isolated at the signal level to prevent ground loop interference — a common failure mode in industrial valve automation environments where motor switching transients can reach several hundred volts per microsecond.

Analog Front-End & Signal Conditioning: The 4–20 mA setpoint input passes through a precision instrumentation amplifier stage with a common-mode rejection ratio (CMRR) exceeding 80 dB. This allows the board to accurately resolve setpoint signals even in the presence of significant ground potential differences between the control room DCS and the field actuator — a practical necessity in large petrochemical plants where cable runs exceed 500 m.

Position Feedback Processing: The board interfaces directly with the actuator’s mechanical position transmitter (typically a conductive plastic potentiometer or resolver). The ADC sampling the feedback signal operates at 12-bit resolution, yielding a theoretical position resolution of 0.024% of full travel. In practice, the firmware applies a configurable dead-band filter (adjustable from 0.1% to 2.0% of span) to suppress hunting in high-vibration installations.

Motor Drive Coordination Logic: The 2SY5010-1LB05 does not directly switch motor power — it generates enable and direction signals to the downstream power stage. The control logic implements torque-limiting via motor current monitoring: if the measured current exceeds the configured torque limit threshold for more than 200 ms, the board de-energizes the motor drive and latches a torque fault. This protects both the actuator gearbox and the process valve seat from mechanical overload.

EMC Design: The PCB layout employs a split ground plane strategy — analog and digital grounds are joined at a single star point adjacent to the main power filter capacitor. All signal traces crossing the split are routed over the star point to minimize loop area. The board also incorporates transient voltage suppression (TVS) diodes on all external-facing signal lines, rated for ±1 kV surge per IEC 61000-4-5 Level 3.

Non-Volatile Parameter Storage: Actuator configuration parameters (travel limits, torque thresholds, dead-band settings, and position feedback calibration) are stored in an onboard EEPROM with a minimum write endurance of 1,000,000 cycles. This ensures parameter retention through power cycling and board replacement without requiring re-commissioning from the DCS.

System Integration Benefits

• Deterministic Closed-Loop Response: The board’s control loop executes at a fixed 10 ms scan cycle, independent of fieldbus communication load, ensuring consistent positioning accuracy under varying network traffic conditions.
• Plug-Compatible Replacement: The 2SY5010-1LB05 is a form-fit-function replacement for the same suffix variant — no mechanical modification, no re-wiring, and no DCS parameter changes required when replacing a failed board of identical revision.
• Onboard Self-Diagnostics: The board continuously monitors supply voltage, motor current, position feedback signal integrity, and internal temperature. Fault codes are stored in a non-volatile event log accessible via the local display or HART/fieldbus interface.
• Torque Fault Transparency: Torque trip events are time-stamped and logged with the measured current value at trip, enabling maintenance engineers to distinguish between mechanical valve seizure and electrical overcurrent — without requiring an oscilloscope or external data logger.
• Configurable Fail-Safe Position: In the event of a control signal loss (4 mA dropout), the board can be configured to drive the actuator to a pre-defined fail-safe position (fully open, fully closed, or freeze-in-place) within the actuator’s rated travel time.
• Wide Supply Voltage Tolerance: The onboard DC-DC converter accepts 18–32 V DC input, accommodating voltage sag conditions in long cable runs without triggering spurious resets or parameter corruption.
• Reduced MTTR: Because all actuator parameters are stored on the board’s EEPROM, a board swap restores full actuator functionality without a commissioning engineer on-site — reducing mean time to repair from hours to under 30 minutes for trained maintenance personnel.
• Compatibility with SIPOS Parameterization Software: The board supports connection to SIPOS PSPG parameterization software via the local RS-232 service port, enabling full parameter backup, restore, and firmware update without removing the actuator from service.

Quality Assurance & Global Logistics

Every SIPOS 2SY5010-1LB05 unit dispatched from our Xiamen, China facility is sourced through verified supply channels and subjected to a structured pre-shipment inspection protocol. Physical inspection covers PCB surface condition, connector pin integrity, component seating, and the absence of electrostatic discharge (ESD) damage indicators. Part number markings and date codes are cross-referenced against manufacturer documentation to confirm authenticity.

Units are packaged in anti-static ESD shielding bags, placed within foam-lined rigid cartons, and sealed with moisture-barrier desiccant packs — a packaging standard appropriate for air freight transit across humidity-variable routes. Export documentation includes a commercial invoice, packing list, and certificate of conformity. For customers requiring CITES, REACH, or RoHS compliance declarations, these are available on request prior to shipment.

Logistics from Xiamen port to major industrial hubs: Singapore (2–3 days air), Dubai (3–4 days air), Rotterdam (4–5 days air), Houston (4–5 days air). Sea freight options are available for bulk orders. All shipments are tracked end-to-end with AWB or BL numbers provided within 24 hours of dispatch. The 12-month warranty covers manufacturing defects and is supported by our technical team — not a third-party claims processor.
