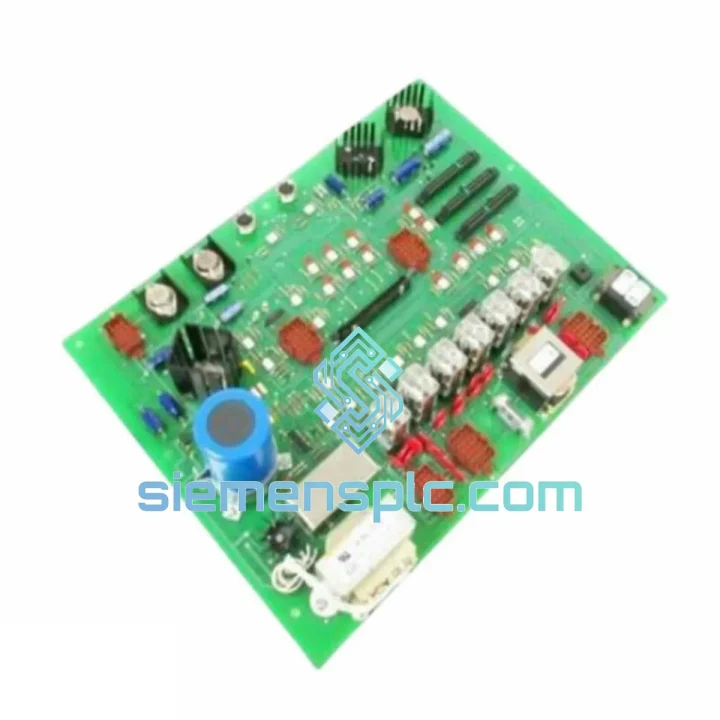

STOCK D21232-1 A21125-B D21231 Control Board

STOCK D21232-1 / A21125-B / D21231 — Your Line Stopped. This Board Gets It Running Again.

You’re not browsing. You’re troubleshooting. The cabinet is dead, the shift supervisor is breathing down your neck, and procurement just told you the OEM lead time is 10 weeks. That’s not an option. We hold physical stock of the STOCK D21232-1 / A21125-B / D21231 control circuit board in our Xiamen warehouse — confirmed available, bench-verified, and ready to leave on the next DHL or FedEx cut-off. Same-day dispatch on orders confirmed before 15:00 CST.

This board covers three cross-reference numbers: D21232-1 (primary), A21125-B (alternate revision), and D21231 (legacy designation). All three are functionally interchangeable in the vast majority of field installations — but read the configuration notes below before you pull the trigger, because there are revision-specific differences that will cost you time if you miss them.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field calls on this board family. Here’s what actually fails, and what bites engineers during replacement.

Fault Patterns You’ll Recognize:

• Channel-specific I/O dropout with no wiring fault — the signal conditioning stage on this board degrades before it fails hard. You’ll see one or two channels reading erratic values while the rest are clean. Don’t chase the field device first. Swap the board.
• Controller stuck in STOP mode after power cycle — nine times out of ten this is a firmware mismatch between the board and the CPU module. The D21231 legacy variant has a different firmware baseline than D21232-1. Confirm your system’s firmware version before installing.
• Backplane communication fault (BF LED solid) — before condemning the board, measure the 24 VDC supply at the backplane connector. A sagging PSU output (below 21.6 V) will cause this exact symptom and the board is not at fault.
• Intermittent faults that clear on power cycle — oxidized edge connector contacts. This is endemic in coastal and high-humidity installations. Clean the gold fingers with 99% IPA and a lint-free swab before seating the replacement. Do not skip this step.
• Analog outputs frozen at last value — watchdog timeout on the output driver IC. Usually triggered by a momentary power dip. A cold restart (full power-off, 30-second wait, power-on) clears it. If it recurs within 48 hours, the board is failing and needs replacement.

Step-by-Step Replacement Checklist:

1. Implement site LOTO. This board does not support hot-swap in standard configurations — do not attempt it unless your system documentation explicitly authorizes it for this slot type.
2. ESD precautions are mandatory. One ungrounded touch to the edge connector can destroy the replacement unit before it’s installed. Wrist strap, grounded mat, anti-static bag until the moment of installation.
3. Before removing the failed board: photograph the DIP switch array and any jumper positions. The D21232-1 uses these for slot address assignment in multi-drop topologies. Losing this configuration means a full re-commissioning session.
4. Check the firmware revision label on the outgoing board. Compare against the replacement. If they differ, schedule a firmware download before returning to automatic mode — do not assume the new board will inherit the configuration automatically.
5. Seat the replacement board with even, firm pressure across the full width of the edge connector. Partial insertion creates intermittent contact faults that are nearly impossible to diagnose without pulling the board again.
6. Power up and watch the LED sequence. Normal startup: brief amber (self-test), then solid green within 12 seconds. If you see flashing red or no LED activity, check address switch settings before anything else.
7. From your engineering workstation, force a full I/O scan. Verify every channel against a known-good reference or your last recorded baseline. Do not release the system to automatic control until all channels are confirmed.

Revision-Specific Configuration Notes:

• A21125-B is functionally equivalent to D21232-1 in most rack configurations, but there is a documented pinout difference on connector pin 47 in early production runs of A21125-B. If your system was commissioned before 2018, verify the backplane wiring diagram before substituting.
• D21231 (legacy designation) requires a minimum firmware version on the host CPU to operate correctly. If your system is running firmware older than the D21232-1 baseline, the board will initialize but I/O scanning may be unreliable. Upgrade firmware first.
• Systems using auto-addressing (slot-position-based node assignment) will self-configure on first power-up. Systems using manual DIP addressing must have switches set correctly before the board is powered — not after. Setting them live causes a node conflict that requires a full rack restart to clear.
• In redundant control architectures: always replace the standby module first, verify bumpless switchover, then replace the active module. Pulling both simultaneously takes the entire control loop offline.

Reliability in Harsh Conditions

The environments where this board gets installed are not kind to electronics. Compressor skids vibrate continuously. Coastal substations run at 90% humidity year-round. Furnace control panels cycle between ambient and 50°C every shift. The STOCK D21232-1 series was specified for exactly these conditions.

The PCB uses a high-Tg FR4 laminate that maintains dimensional stability through repeated thermal cycling — the kind of cycling that causes delamination and micro-cracking in standard-grade boards over 18–24 months of service. Through-hole construction is used at all high-stress connector and mounting points, which resists the solder joint fatigue that surface-mount components develop under sustained vibration at 10–50 Hz.

Full conformal coating on the board surface provides a moisture and contamination barrier rated for IEC 60068-2-78 damp heat testing. In chemical plant environments where airborne acids and solvents are present, this coating is the difference between a board that lasts five years and one that fails in eighteen months.

Every unit we ship has been through a functional load test — not just a visual inspection and a power-on check. We apply signal inputs, verify output responses, and confirm communication integrity before the board goes into anti-static packaging. If it doesn’t pass, it doesn’t ship. That’s the only quality control that matters when your plant is standing still.

Global Express Logistics

Our warehouse is in Xiamen, Fujian Province — a primary export hub with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Express gateways. We are 40 minutes from Xiamen Gaoqi International Airport. When we say same-day dispatch, we mean the physical aircraft, not a booking confirmation.

Typical Transit Times from Xiamen (business days, door-to-door):

• Southeast Asia — Vietnam, Thailand, Malaysia, Indonesia, Philippines: 2–3 days via DHL Express
• Northeast Asia — South Korea, Japan, Taiwan: 2–3 days via FedEx International Priority
• Middle East — UAE, Saudi Arabia, Qatar, Kuwait: 3–4 days via DHL or FedEx
• Europe — Germany, Netherlands, UK, France, Poland, Italy: 4–5 days via DHL Express Worldwide
• North America — USA, Canada: 4–6 days via FedEx International Priority
• South America & Africa — 5–8 days subject to destination customs clearance speed

Every shipment is documented with a commercial invoice, packing list, HS code declaration (HS 8537.10), and certificate of origin. For import-sensitive destinations, we support DAP and DDP Incoterms — specify at order placement. Tracking numbers are issued within 2 hours of carrier pickup.

For genuine plant-down emergencies — production line stoppage, safety system failure, turbine trip — contact us on WhatsApp before placing the order. We will confirm the fastest available routing, check the next carrier cut-off time, and eliminate any processing delay. We have shipped to over 40 countries. When customs issues arise, we handle the carrier documentation follow-up directly. Your job is to get your plant back online. Ours is to get the part there.
