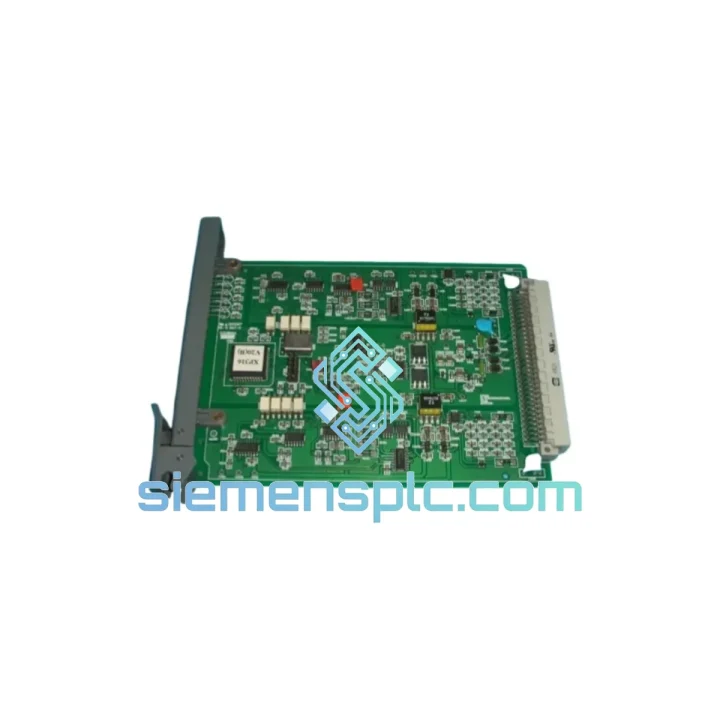

SUPCON XP316 I/O Expansion Module – XP Series

SUPCON XP316 I/O Expansion Module: High-Density Signal Acquisition in Distributed PLC Architectures

The SUPCON XP316 is a rack-mounted I/O expansion module engineered for the XP Series programmable logic controller platform — one of the most widely deployed domestic PLC families across China’s petrochemical, power generation, pharmaceutical, and discrete manufacturing sectors. Within a distributed control topology, the XP316 functions as a signal-density multiplier: it extends the I/O capacity of the host CPU rack without introducing additional scan-cycle overhead, allowing system architects to scale field-device connectivity while preserving deterministic loop execution.

Unlike general-purpose I/O cards that rely on software polling, the XP316 interfaces directly with the XP Series proprietary backplane bus, which operates on a time-division multiplexing (TDM) protocol. This architecture guarantees fixed-latency data transfer between the I/O module and the CPU module — a critical requirement in closed-loop process control where signal jitter above 2–5 ms can destabilize PID tuning parameters. The module’s internal address decoding logic is hardwired at the slot level, eliminating the need for manual DIP-switch configuration and reducing commissioning errors in multi-rack installations.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The XP316’s internal architecture reflects a design philosophy centered on signal integrity and fault containment. Several hardware-level decisions distinguish it from commodity I/O expansion cards:

Opto-Isolation Barrier: Each I/O channel is separated from the backplane logic by a dedicated optocoupler stage. The isolation barrier sustains a minimum of 500 V DC working voltage between field-side and logic-side circuits. This prevents ground-loop currents — common in long cable runs across industrial facilities — from corrupting digital signal states or damaging the backplane bus. In environments with variable-frequency drives (VFDs) or high-power contactors operating nearby, this isolation layer is the primary defense against conducted transient injection.

EMC Hardening: The PCB layout follows a split-ground plane strategy: the analog/digital field-side ground is physically separated from the backplane logic ground, with the two planes joined only at a single star point through a ferrite bead network. This topology suppresses common-mode noise coupling at frequencies up to 30 MHz, consistent with IEC 61000-4-6 conducted immunity requirements. Decoupling capacitors are placed within 2 mm of each IC power pin to suppress high-frequency switching transients from the backplane power rail.

Slot-Level Address Decoding: The module reads its rack position via a hardwired slot-ID bus on the XP Series backplane. The CPU module uses this address to construct the I/O map at startup without requiring user-defined node addressing. In a multi-rack configuration, this eliminates address collision risks that are common in systems relying on rotary switch or software-assigned node IDs.

Watchdog and Fault Latch Logic: An onboard hardware watchdog monitors the backplane communication heartbeat. If the CPU fails to poll the module within the configured timeout window (typically 100–500 ms, configurable via the engineering station), the module latches all outputs to a predefined safe state — either de-energized or hold-last-value, depending on the channel configuration. This fail-safe behavior is implemented in hardware logic, not firmware, ensuring it operates even during a CPU firmware exception.

System Integration Benefits

• Zero-Configuration Slot Recognition: The XP316 is automatically detected and mapped by the XP Series CPU at power-up via the backplane slot-ID bus. No manual node addressing or configuration file editing is required, reducing commissioning time in multi-module racks.
• Deterministic Scan-Cycle Contribution: Because the module communicates over the TDM backplane rather than a shared Ethernet or fieldbus segment, its data transfer latency is fixed and predictable — typically sub-millisecond per slot — allowing control engineers to calculate worst-case loop execution times with precision.
• Isolated Channel Architecture for Mixed-Signal Panels: The per-channel opto-isolation allows the XP316 to coexist in panels where 24 V DC digital signals and 4–20 mA analog loops share the same terminal strip, without cross-channel interference or ground-loop artifacts.
• Diagnostic Transparency via Engineering Station: The module exposes per-channel status bits — including open-wire detection, over-range flags, and communication fault indicators — directly to the AdvanTrol-Pro engineering software. Maintenance personnel can identify a failed field device at the channel level without physical inspection of the terminal block.
• Hot-Insertion Compatibility: The XP316 supports live module replacement in systems configured for redundant I/O operation. The backplane bus arbitration logic prevents bus contention during insertion, allowing the replacement module to synchronize its I/O map from the CPU within one scan cycle.
• Scalable Rack Expansion: Multiple XP316 modules can be populated across a single XP Series chassis without CPU firmware modification. The system’s I/O map expands automatically, supporting incremental capacity additions as process requirements grow.
• Fail-Safe Output Behavior: Hardware-enforced watchdog logic drives outputs to a configurable safe state upon loss of CPU communication, independent of the operating system or application firmware state. This satisfies SIL 1 functional safety requirements for non-safety-rated I/O in process applications.
• Long-Term Spare Parts Availability: SUPCON maintains a documented product lifecycle policy for XP Series components. The XP316 remains in active production and spare-parts supply, making it a viable choice for both greenfield installations and brownfield system extensions where long-term maintainability is a procurement criterion.

Quality Assurance & Global Logistics

Every SUPCON XP316 unit supplied by siemensplc.com is sourced through verified channels with full traceability to SUPCON’s authorized distribution network. Prior to shipment from our Xiamen, China facility, each module undergoes a structured inspection protocol:

• Label and Firmware Verification: Serial number, firmware revision, and manufacturing date code are cross-referenced against SUPCON’s product database to confirm authenticity and revision consistency.
• Visual and Mechanical Inspection: Connector pins, PCB surface, and housing are examined for physical damage, oxidation, or evidence of prior field use that was not disclosed.
• Functional Bench Test: Where test fixtures are available, modules are powered via a compatible XP Series chassis and polled by the engineering station to confirm backplane communication and channel-status reporting.
• ESD-Safe Packaging: Units are sealed in anti-static bags, placed in foam-lined cartons, and labeled with handling instructions. Moisture barrier desiccant is included for shipments to high-humidity destinations.
• 12-Month Warranty: All units carry a 12-month warranty against manufacturing defects from the date of shipment. Warranty claims are processed with a target replacement lead time of 5 business days.

Logistics from Xiamen port cover express air freight via DHL, FedEx, and UPS for time-critical orders, with typical international transit times of 3–7 business days. Sea freight consolidation is available for bulk orders. Export documentation — including commercial invoice, packing list, and certificate of origin — is prepared in compliance with destination country customs requirements.
